Using Hand-Held Tester

For key number registration flowchart, see Fig 1.

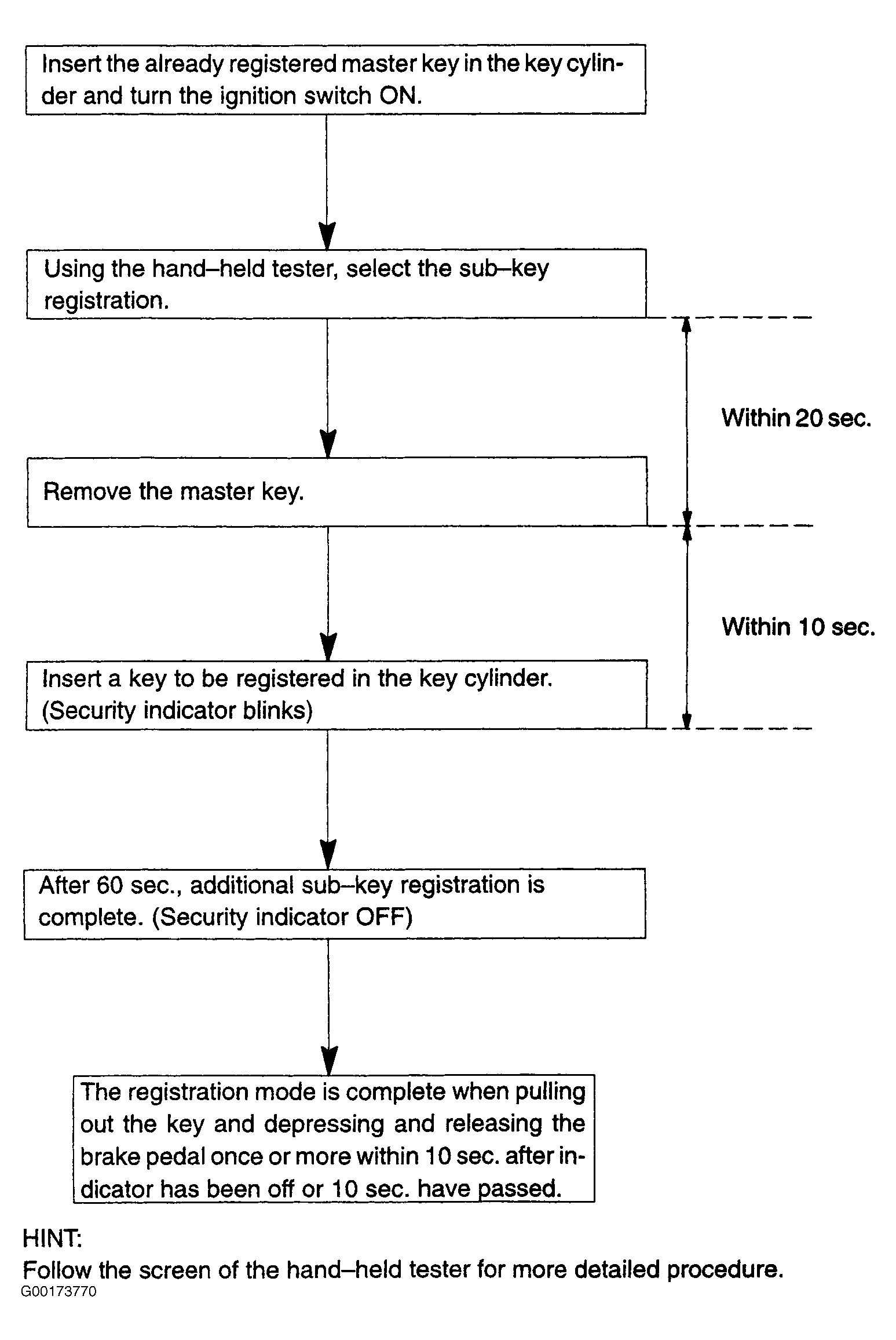

Fig 1: Registering Key Number With Hand-Held Tester
G00173770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
