Transmitter Battery Replacement: Installation

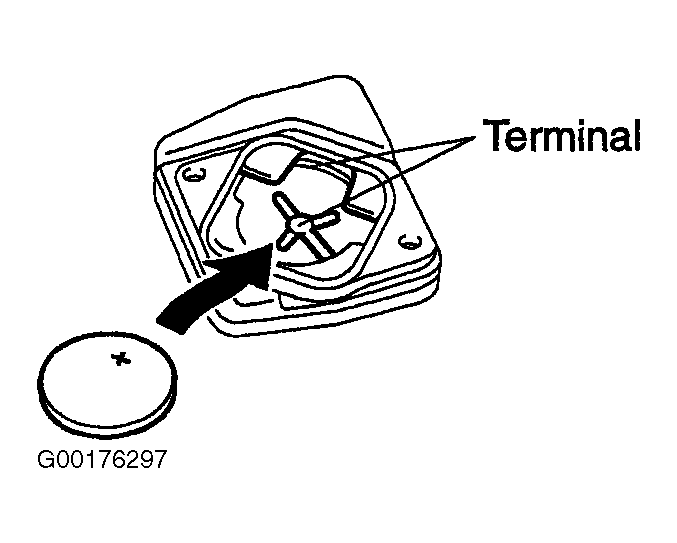

- Install the transmitter battery (lithium battery) as shown in the illustration. See Fig 1.
- Check that the "O" ring is not distorted or slipped off. Install the cover.
- Using a screwdriver, tighten the 2 screws.
NOTE:
Make sure the positive side and negative side of the battery should be faced correctly and take care not to deform the terminals.
NOTE:
When the screws are loose, it might cause faulty contact of the battery and terminals.
