Outside Rear View Mirror Inspection

Inspect the outside rear view mirror switch assembly. See Fig 1.

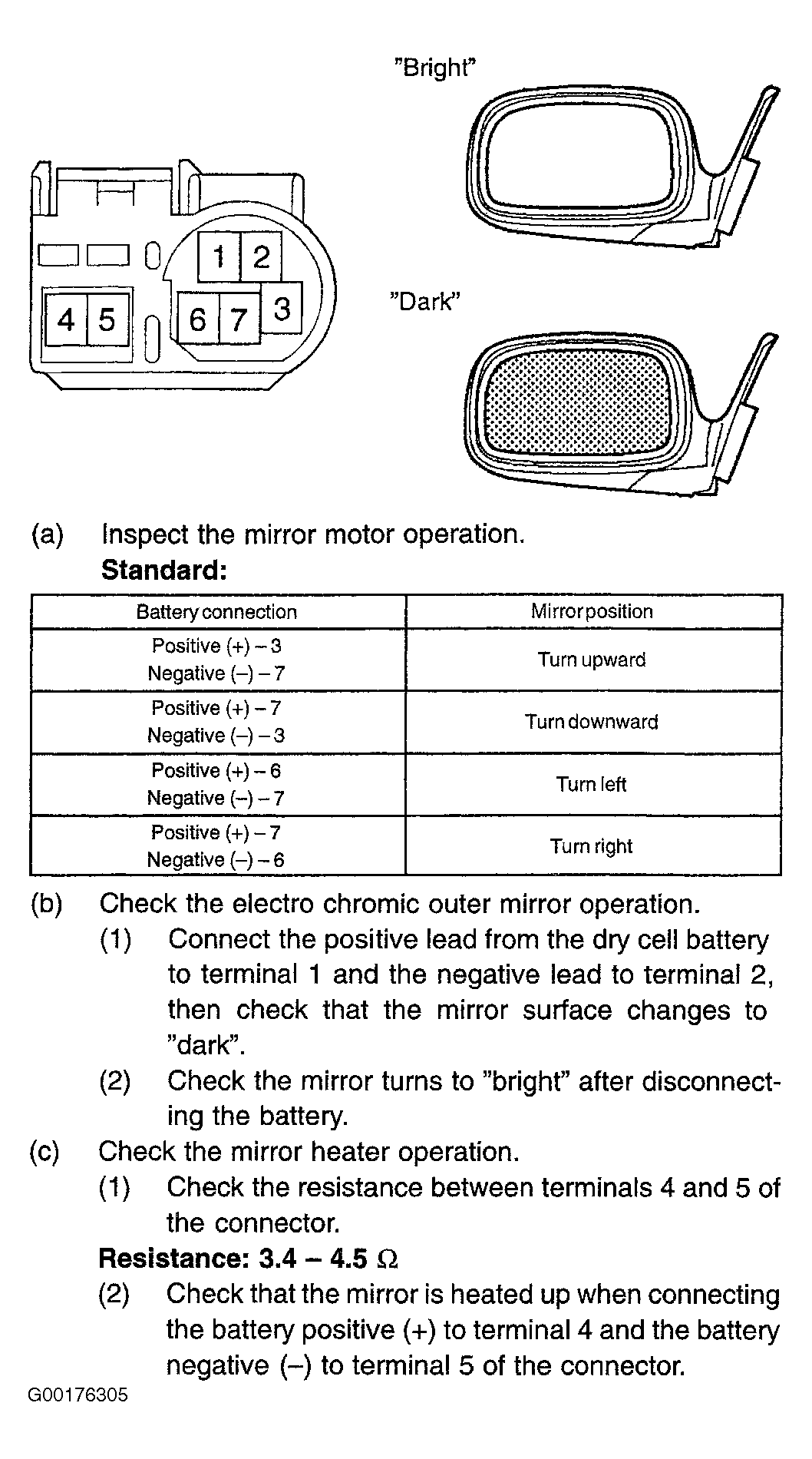

On power mirrors without memory, inspect left hand and right hand outside rear view mirror operation. See Fig 2.

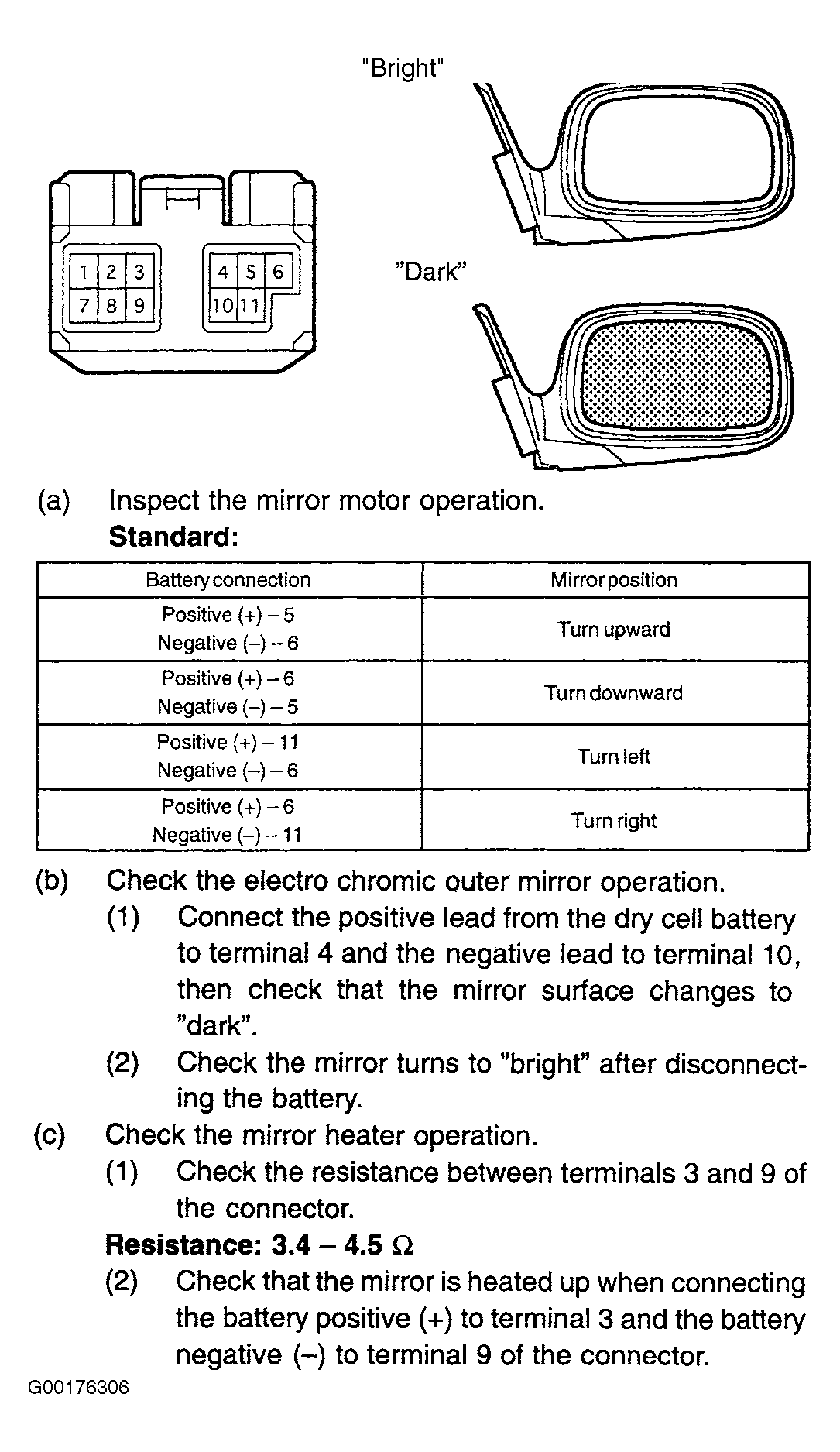

On power mirrors with memory, inspect left hand and right hand outside rear view mirror operation. See Fig 3.
Inspect the ACC relay. See Fig 4.

Fig 1: Inspecting Outside Rear View Mirror Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Inspecting Outside Rear View Mirror Operation (Without Memory)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Inspecting Outside Rear View Mirror Operation (With Memory)

Fig 4: Inspecting ACC Relay Continuity
