Circuit Description

While a switch signal of the power mirrors is transmitted to the mirror ECU as well. This time the power mirrors face upward and downward or right and left. See Fig 1.

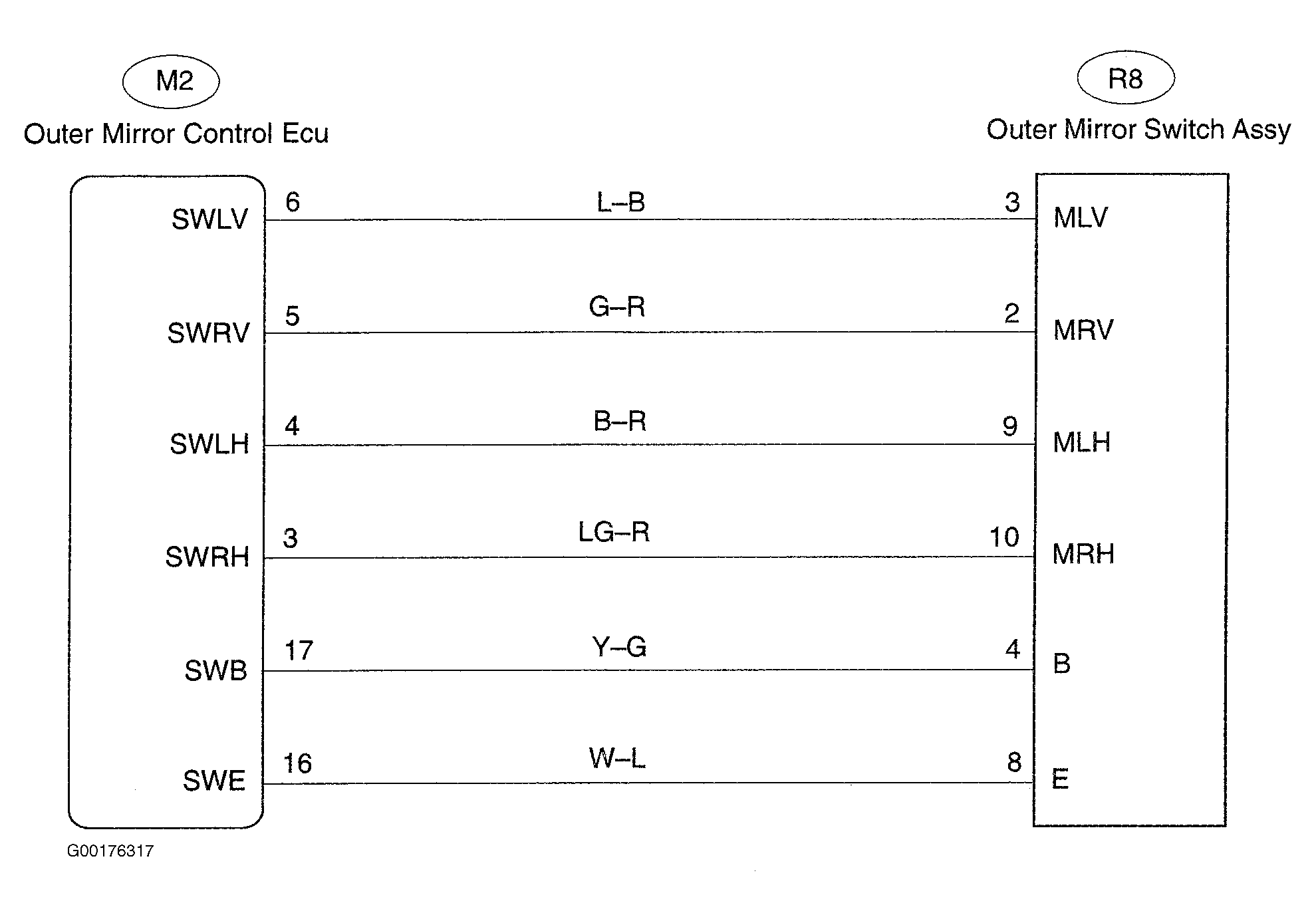

Fig 1: Identifying Outside Rear View Mirror Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
