Inspection Procedure
- Check fuses. Check if the ECU - B and ECU - ACC fuse are normal. If the fuses are OK, go to the next step. If the fuses are not OK, replace the fuse.

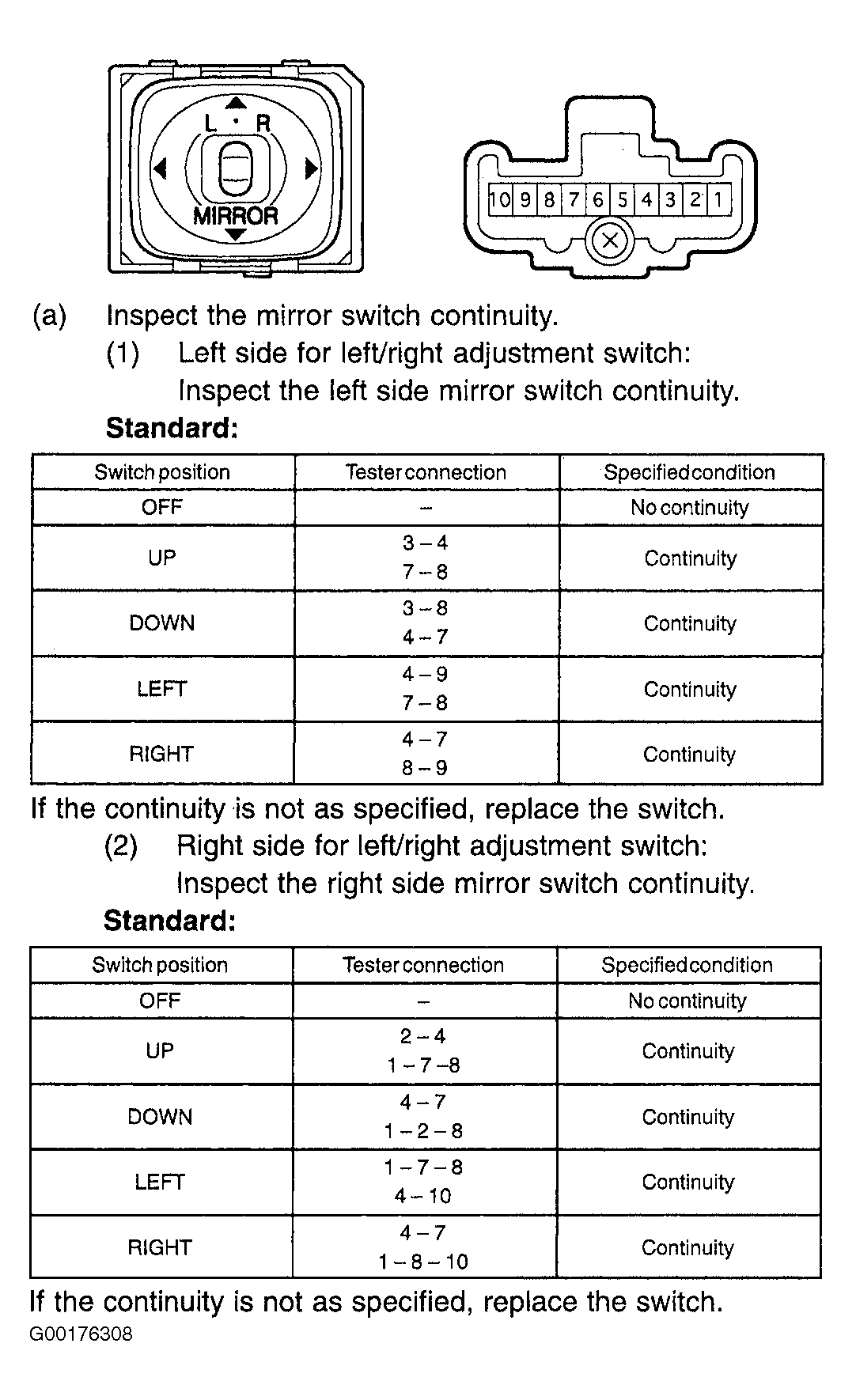

- Inspect the outside rear view mirror switch assembly. See Figure. If the switch is OK, go to the next step. If the switch is not OK, replace the outside rear view mirror switch assembly.

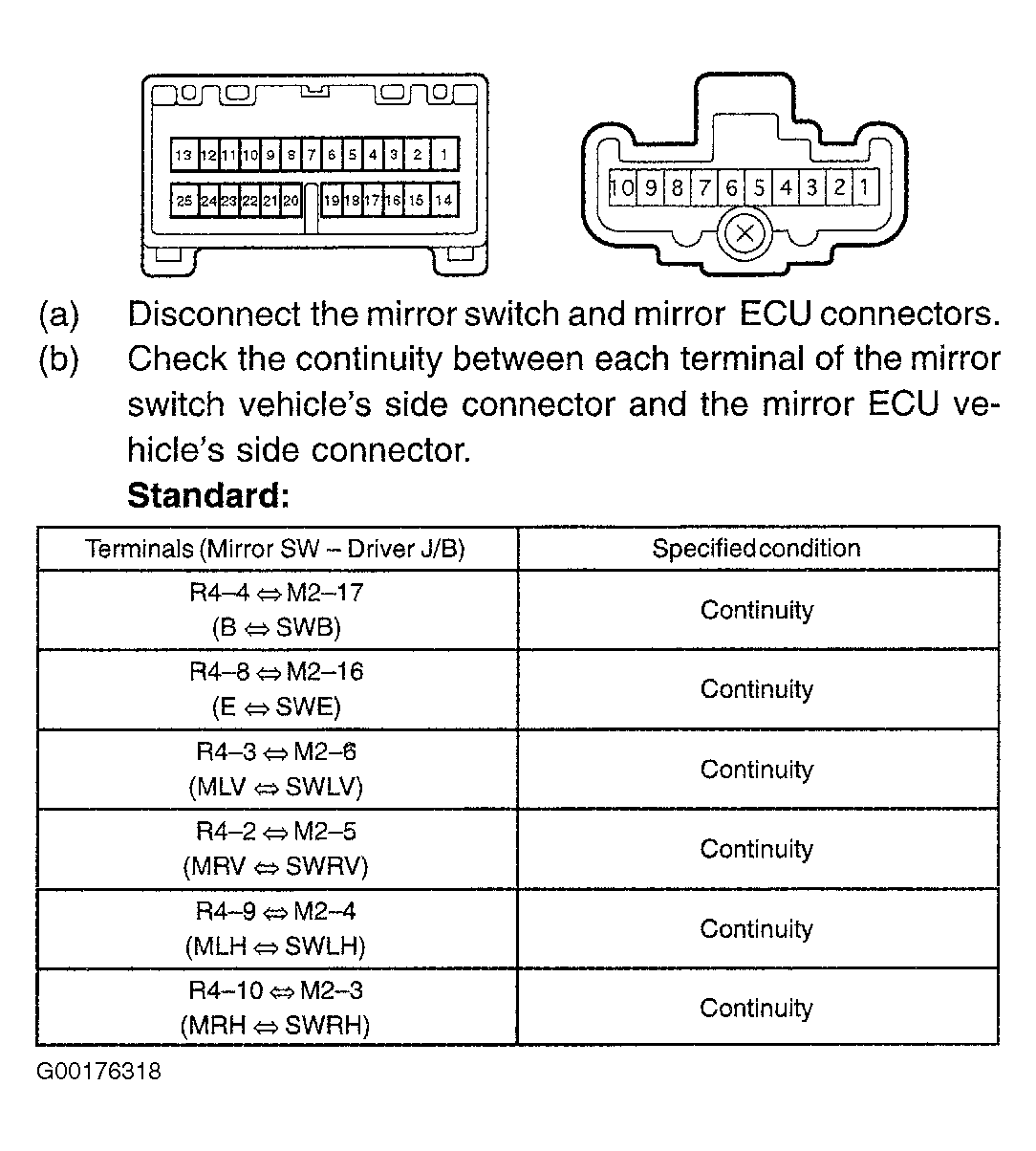

- Check the mirror switch and mirror ECU wiring harness. See Fig 1. If the connectors are OK, replace the outside rear view mirror control ECU assembly. If the connectors are not OK, repair or replace the wiring harness or connector.
