Outside Rear View Mirror Control ECU Assembly

For inspection of the outside rear view mirror control ECU, go to Fig 1.

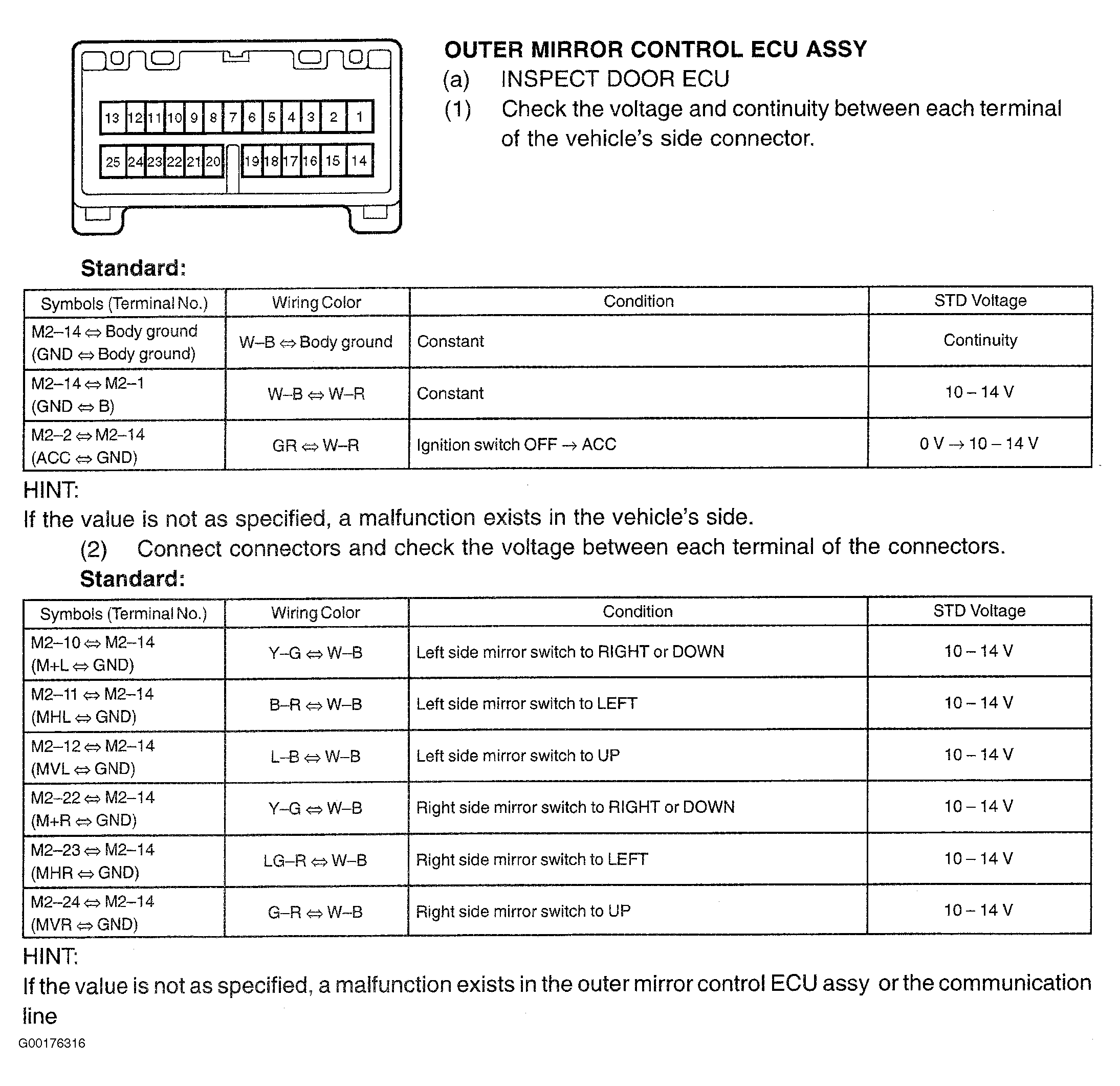

Fig 1: Inspecting Outside Rear View Mirror Control ECU Continuity & Voltage

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
