Component Locations

COMPONENT LOCATIONS

Component Location
Lumbar Support Adjuster Assembly (Driver's Seat Only) (2) & (3)
Power Seat Memory Switch (1)
Power Seat Motor Assembly
Front Slide (1), (2) & (3)
Front Vertical (Front Up/Down) (1), (2) & (3)
Rear Vertical (Lifter) (1), (2) & (3)
Reclining (1), (2) & (3)
Power Seat Switch (Left Hand) (1), (2) & (3)
Seat Heater (3) & (4)
Seat Heater Switch (4)
Seat Position Control ECU (1) & (3)
(1) See Fig 1.
(2) See Fig 2.
(3) See Fig 3.
(4) See Fig 4.

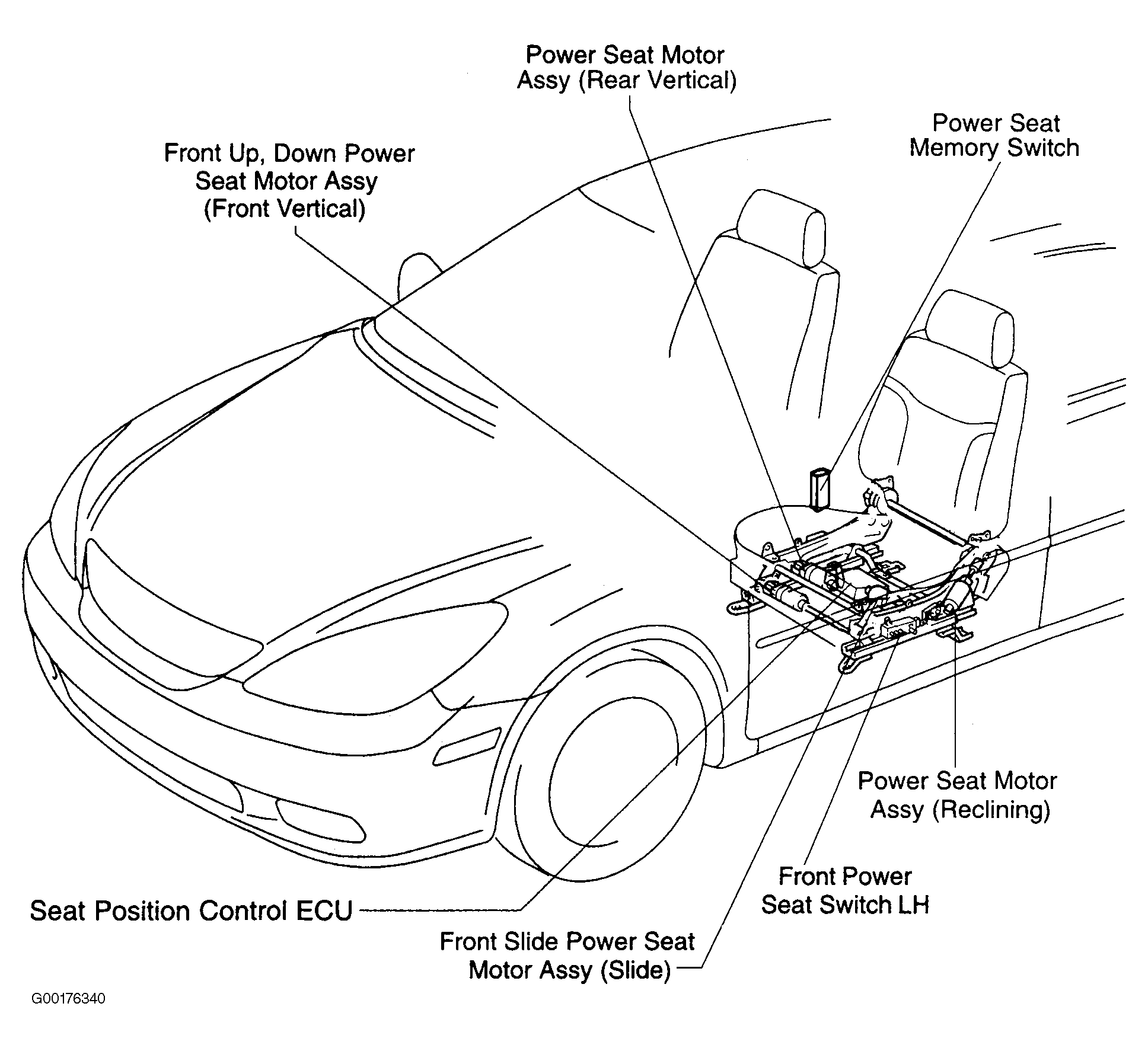

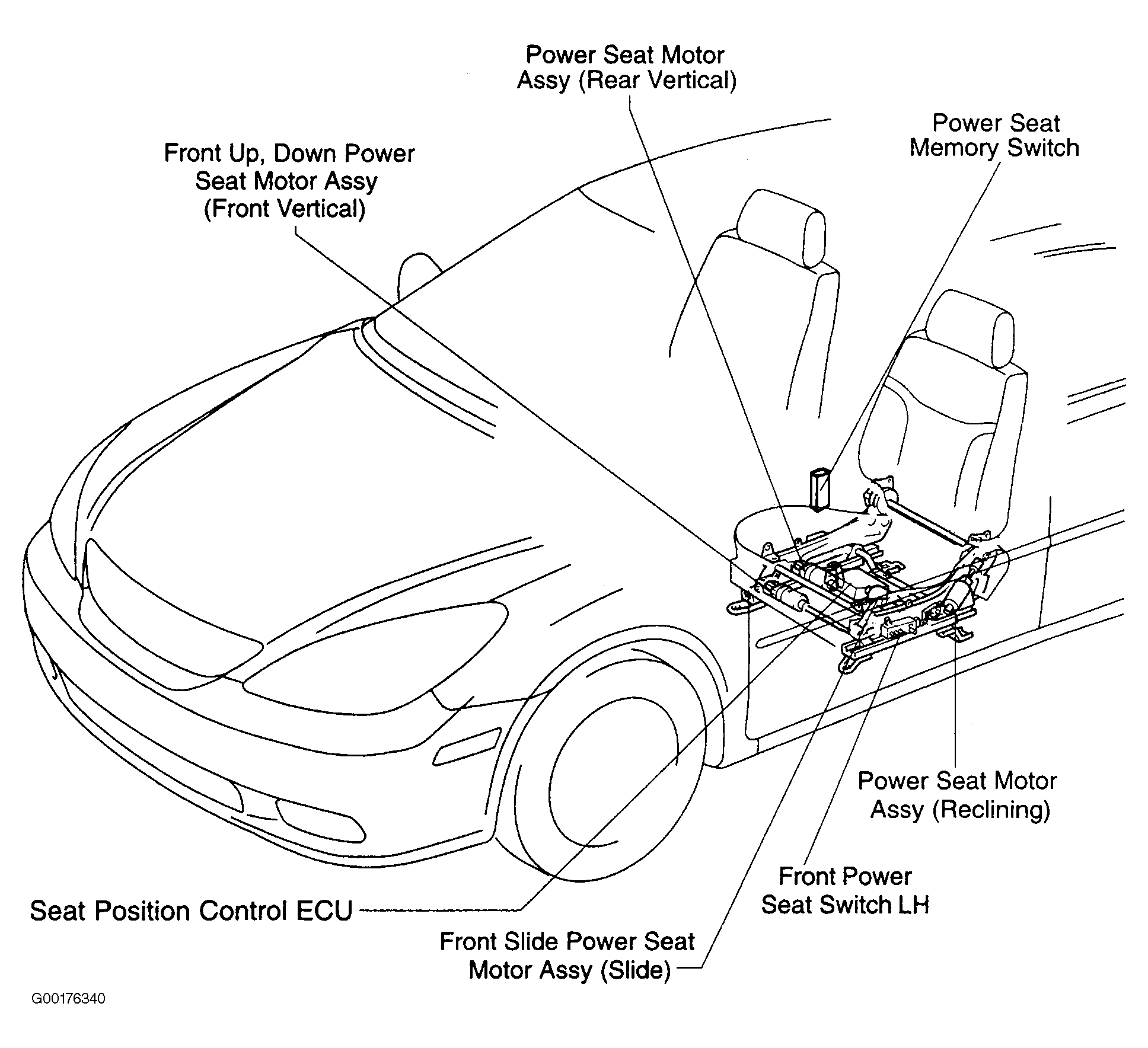

Fig 1: Identifying Power Seat & Memory Component Locations
G00176340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

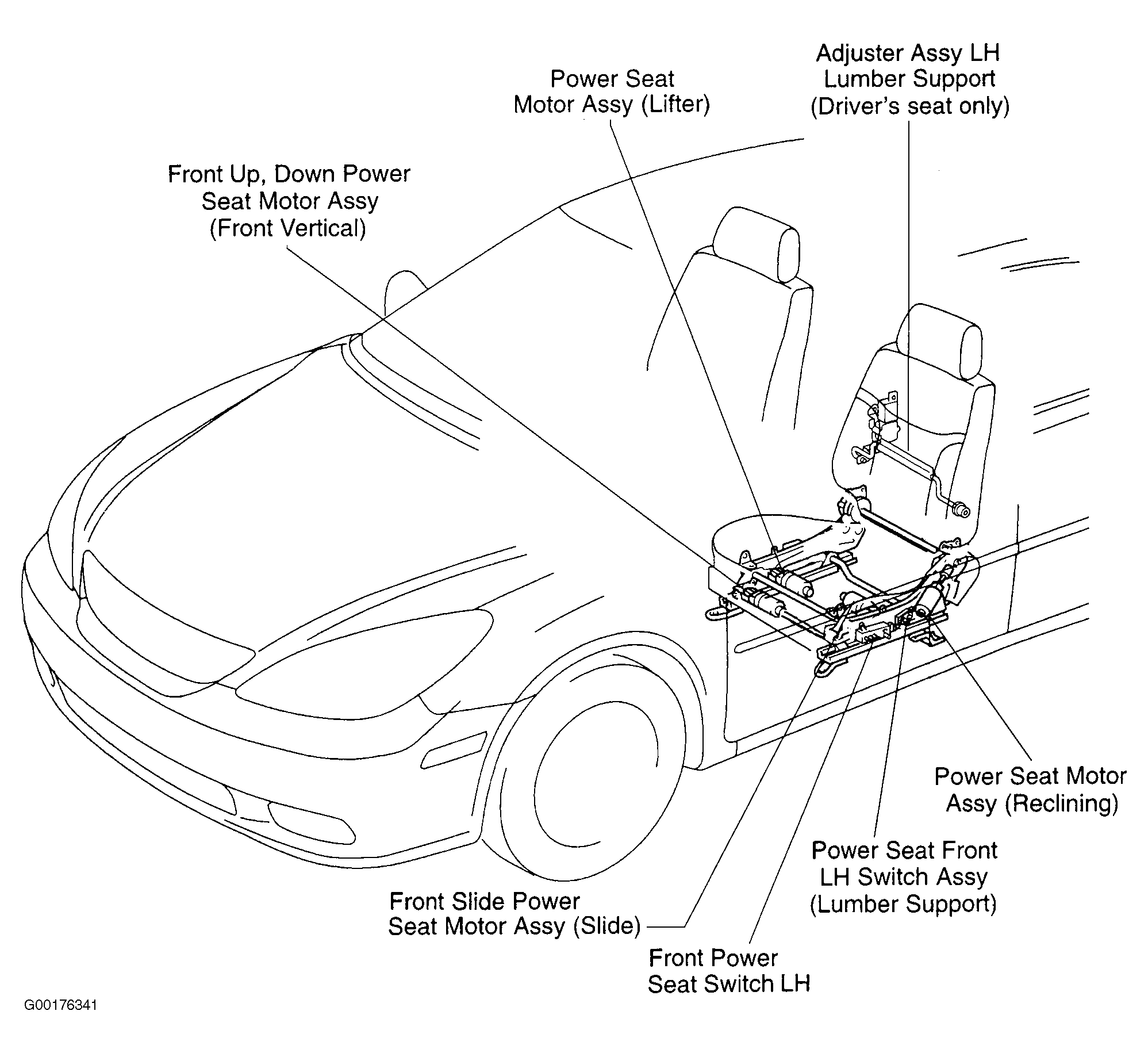

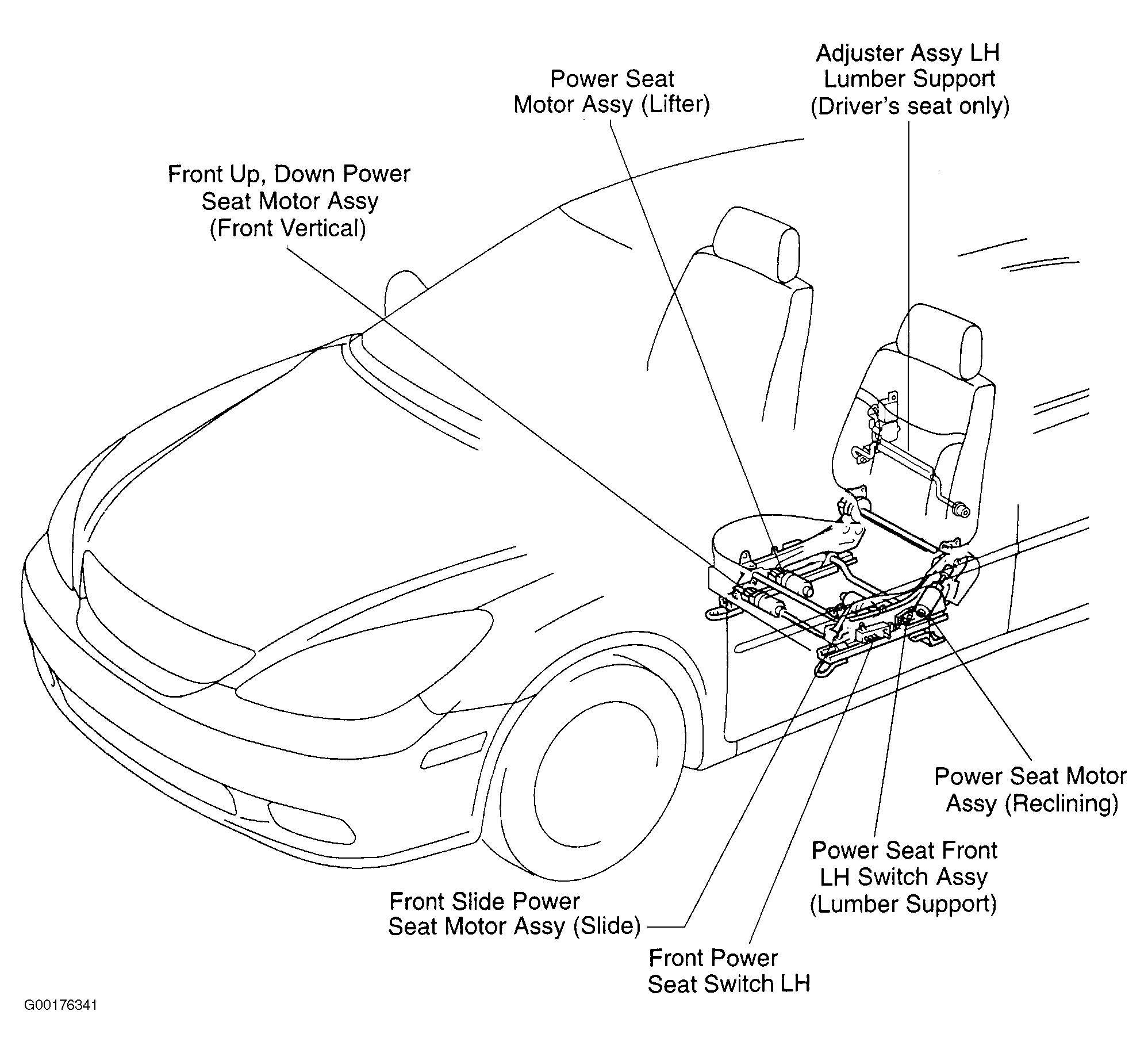

Fig 2: Identifying Power Seat & Lumbar Support Component Locations
G00176341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

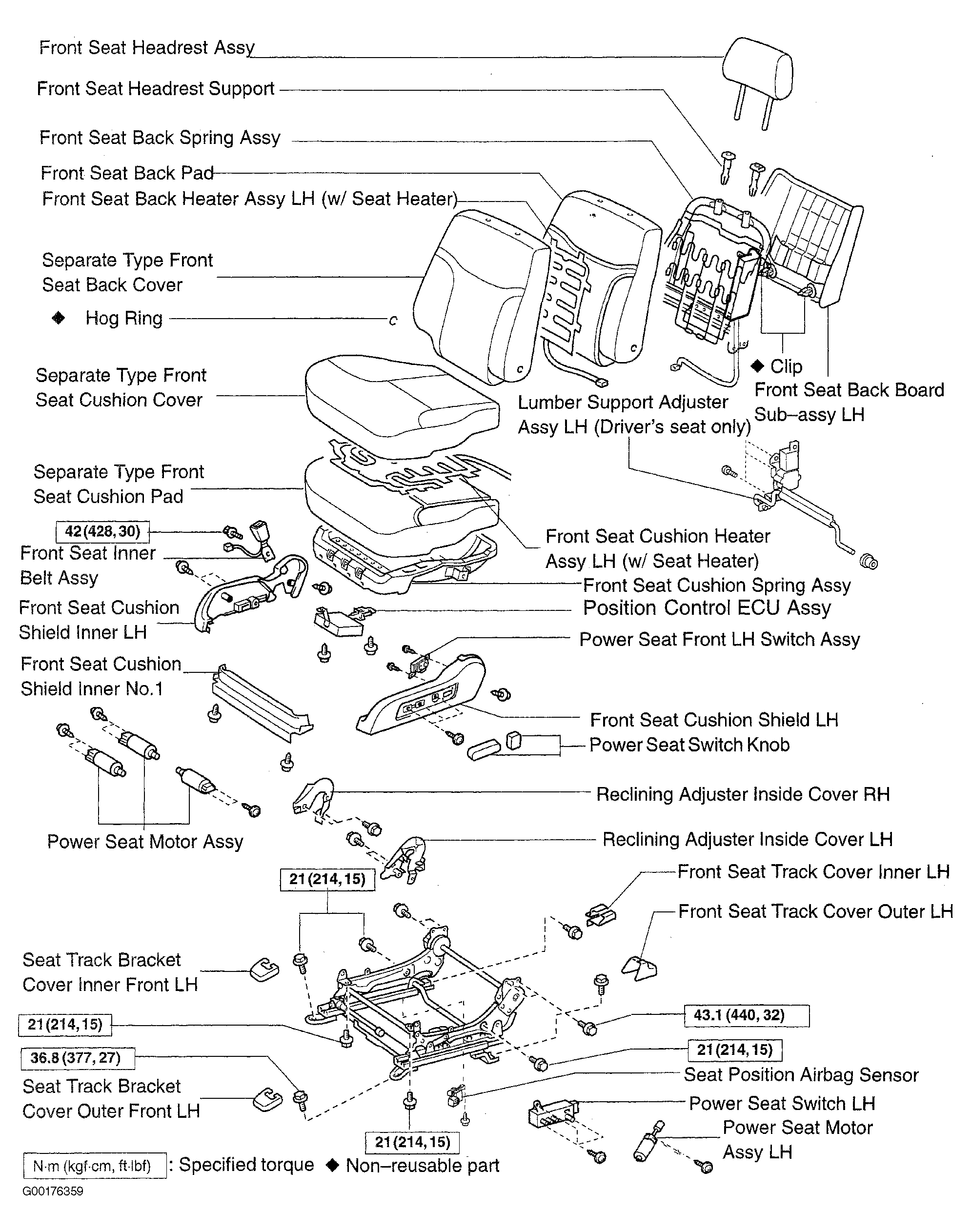

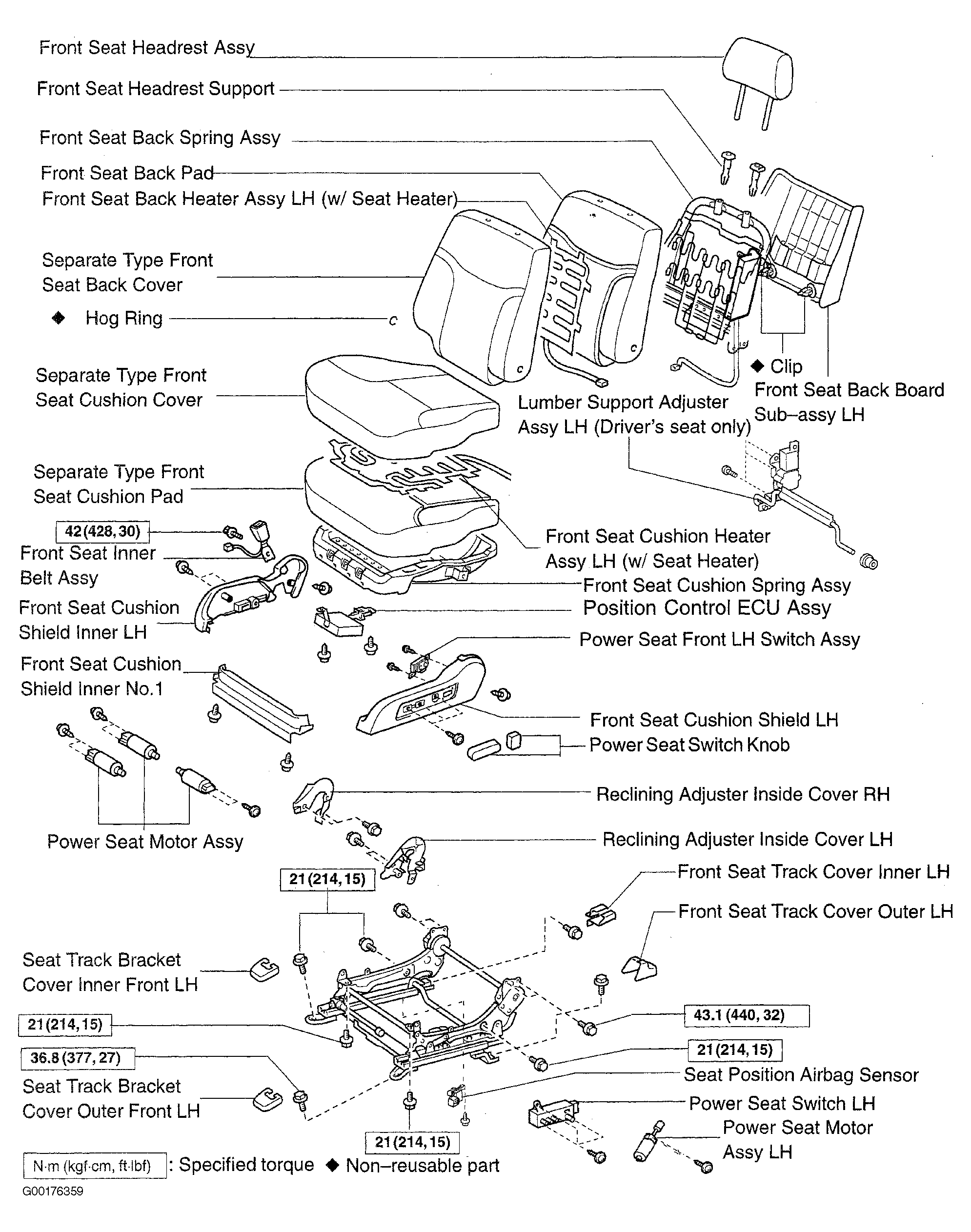

Fig 3: Exploded View Of Front Seat Assembly
G00176359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

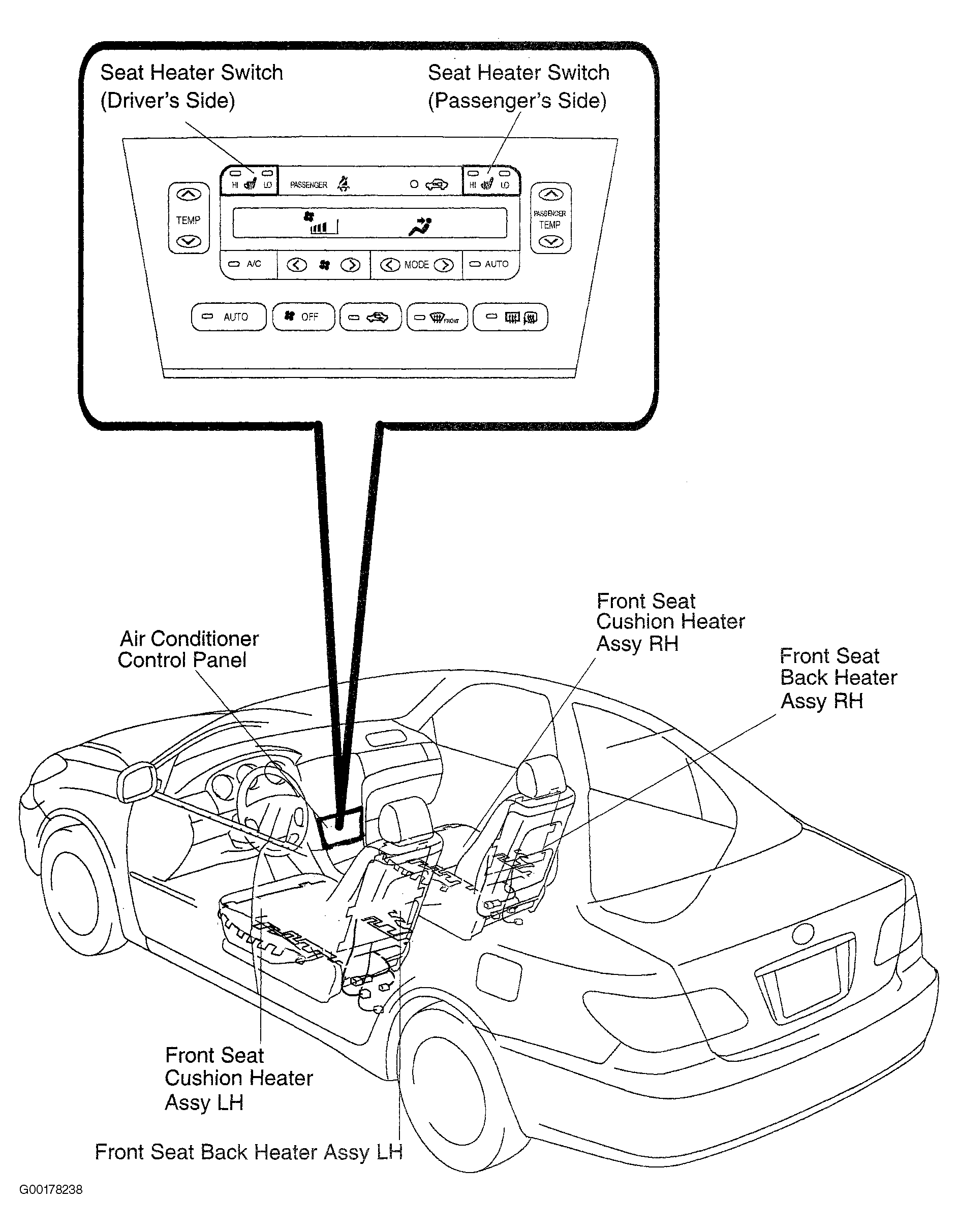

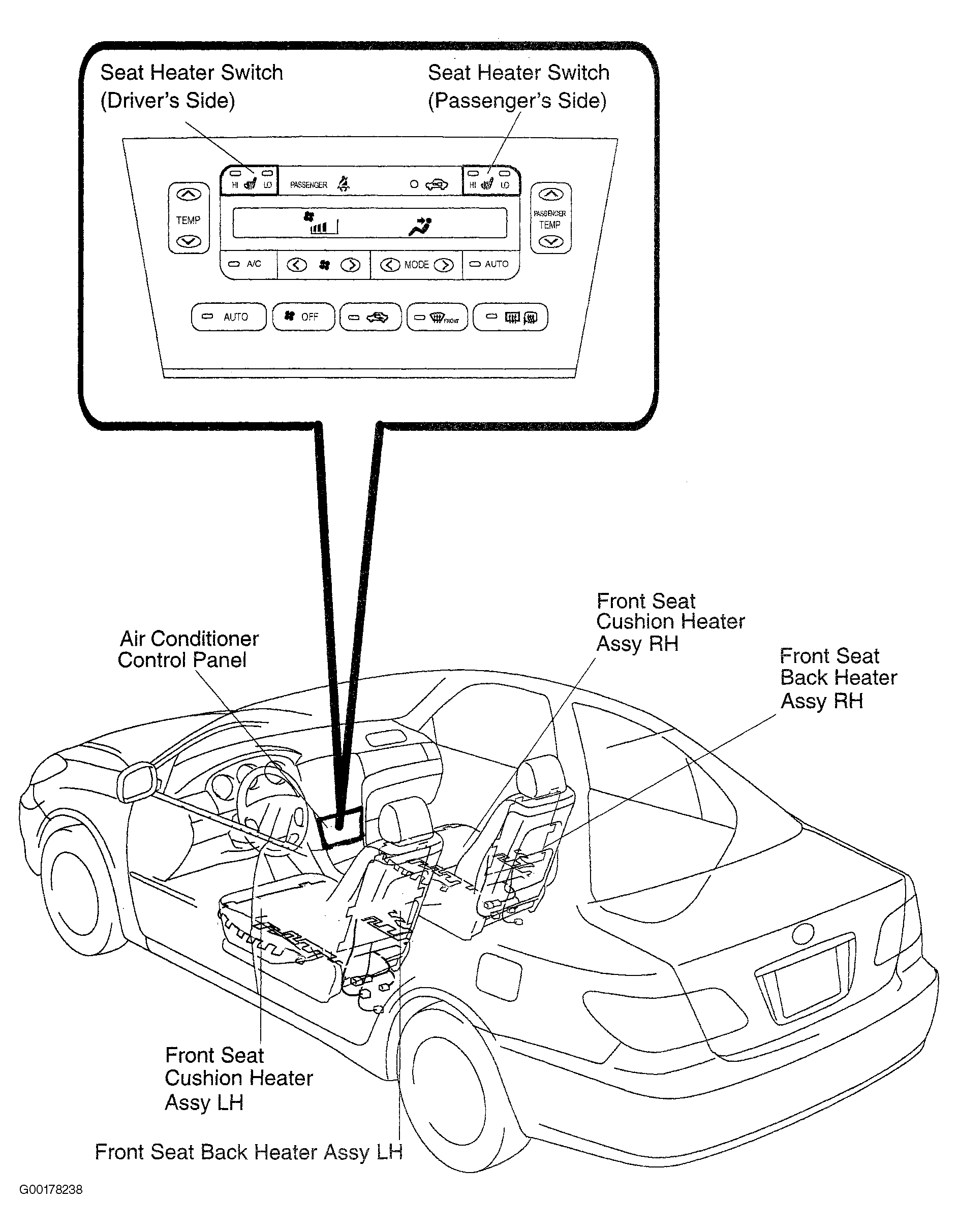

Fig 4: Identifying Seat Heater Component Locations & A/C Control Panel Switches
G00178238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
