Power Seat Control System Inspection

  1. Inspect the left hand front power seat switch. See Fig 1.
  2. Inspect the right hand front power seat switch. See Fig 2.
  3. Inspect the left hand power seat front switch assembly. See Fig 3.
  4. Inspect the right hand lumbar support adjuster assembly. See Fig 4.
  5. Inspect the front up, down power seat motor assembly. See Fig 5.

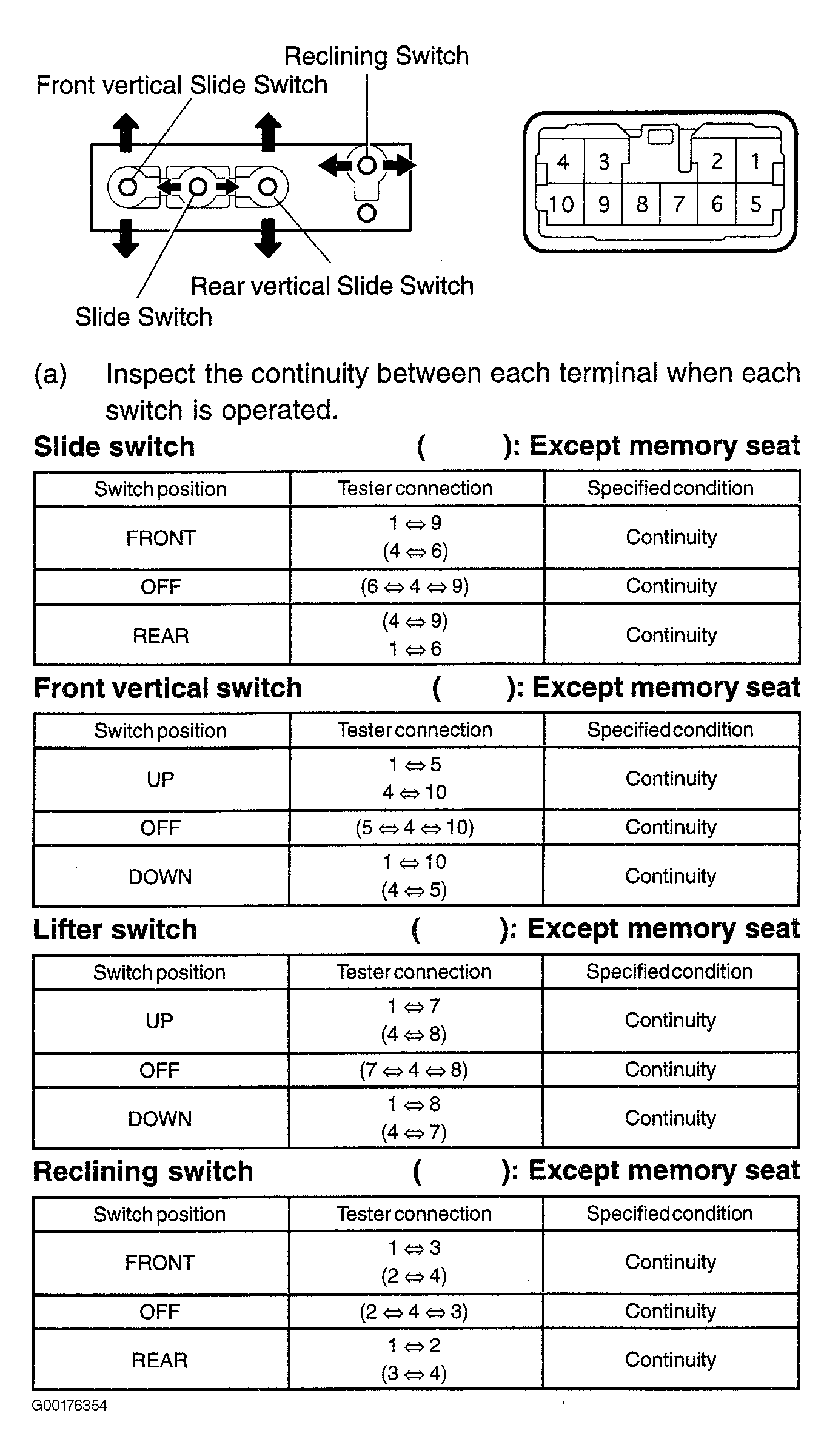

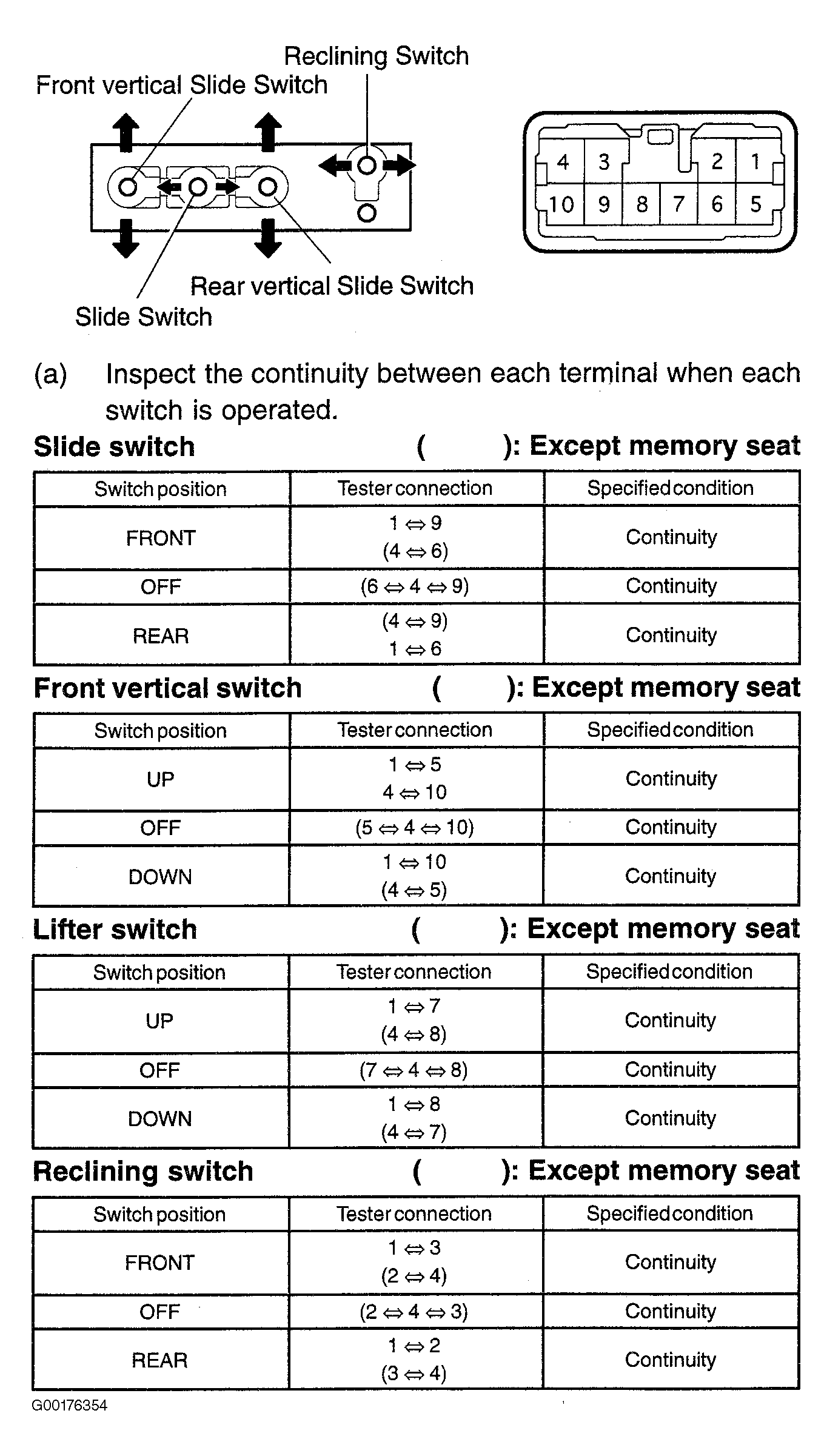

Fig 1: Inspecting LH Front Power Seat Switch Continuity
G00176354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

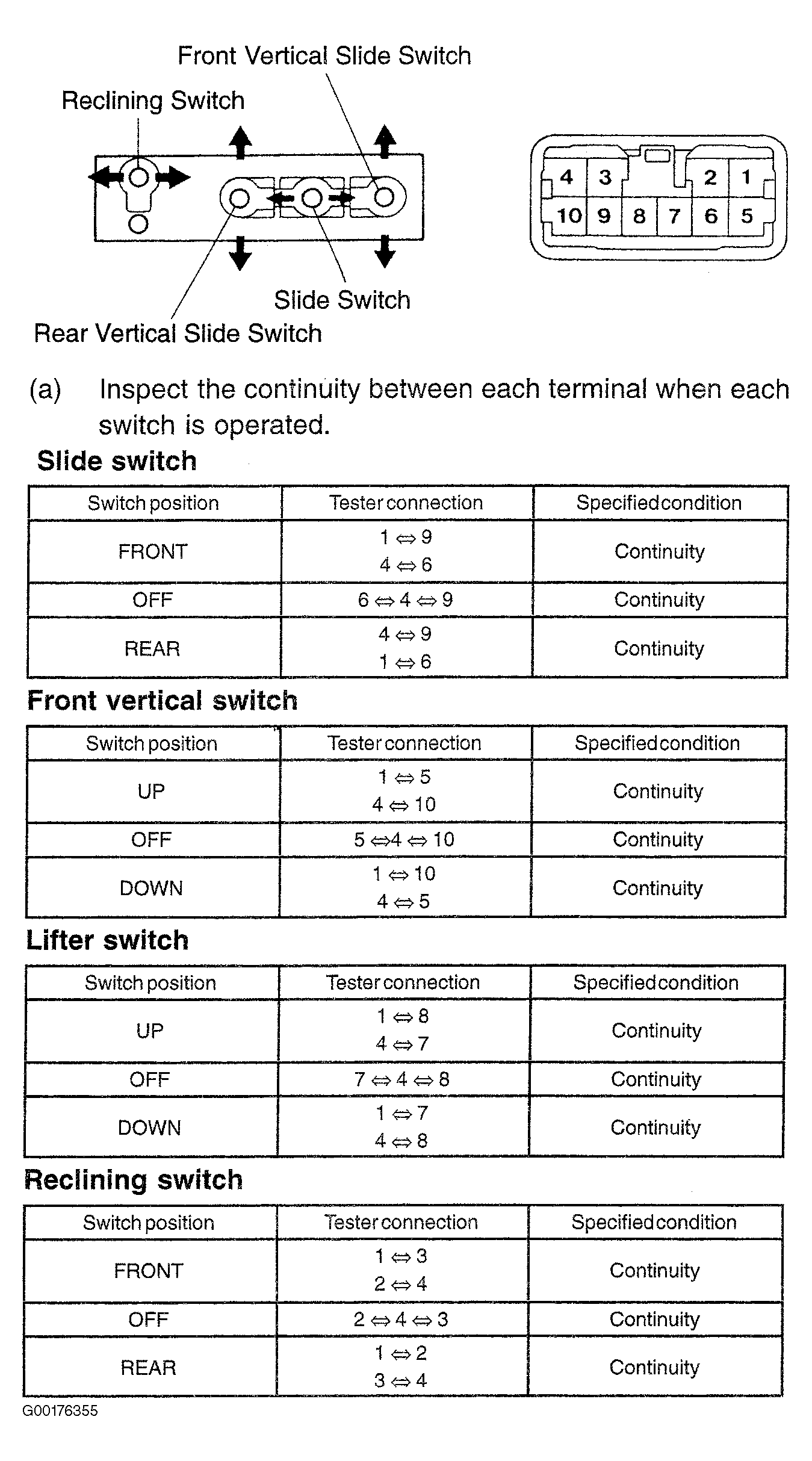

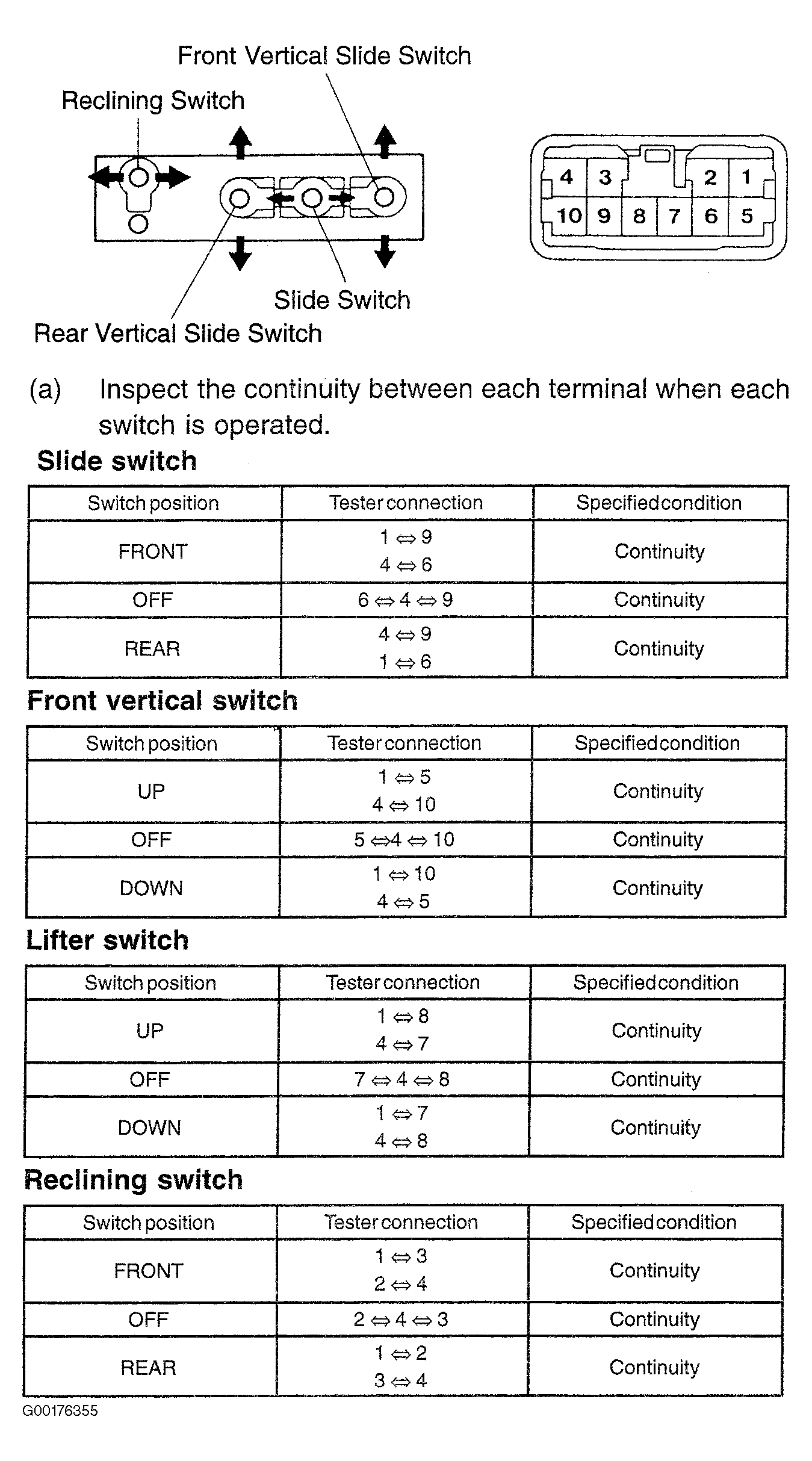

Fig 2: Inspecting RH Front Power Seat Switch Continuity
G00176355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

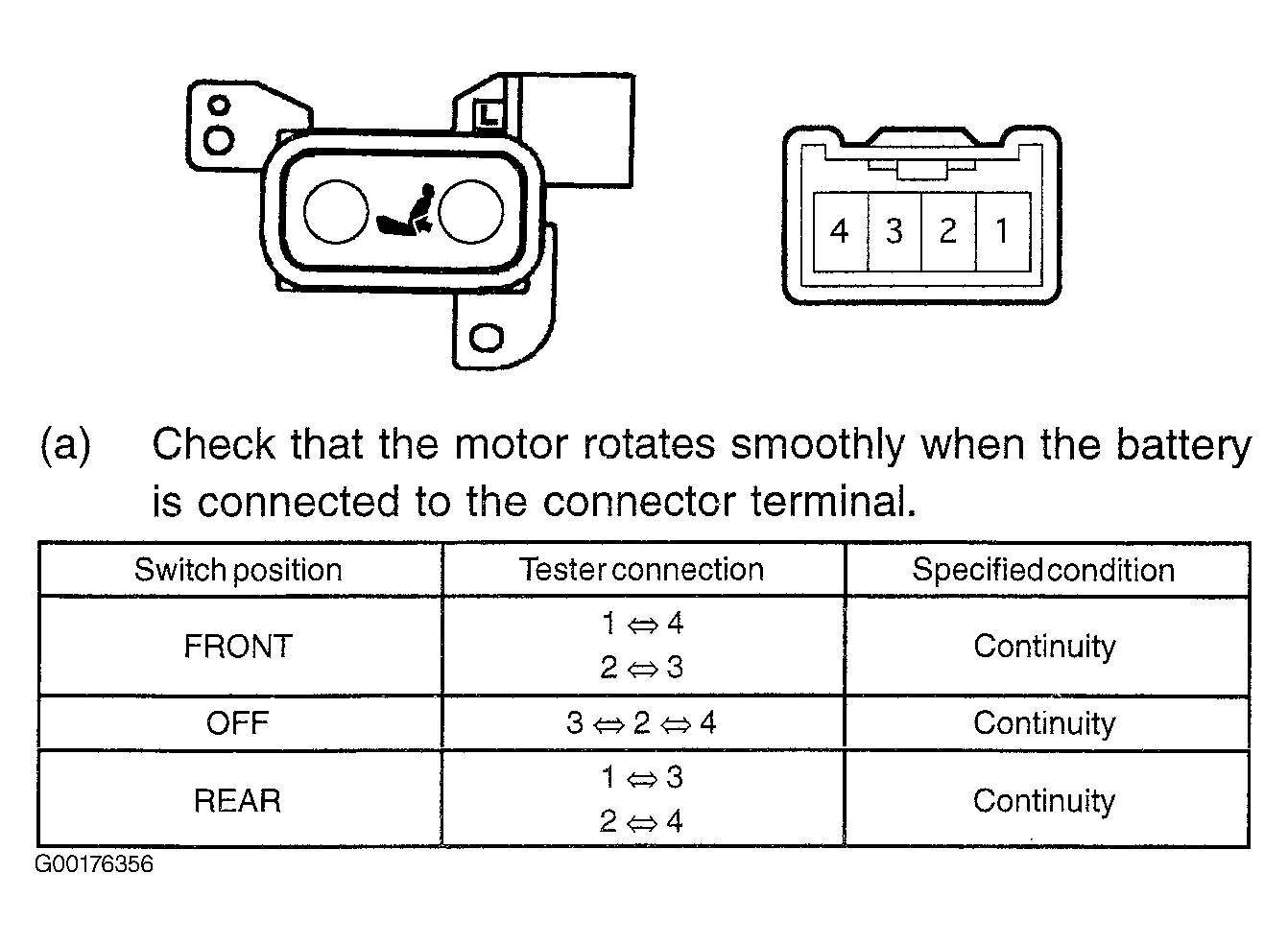

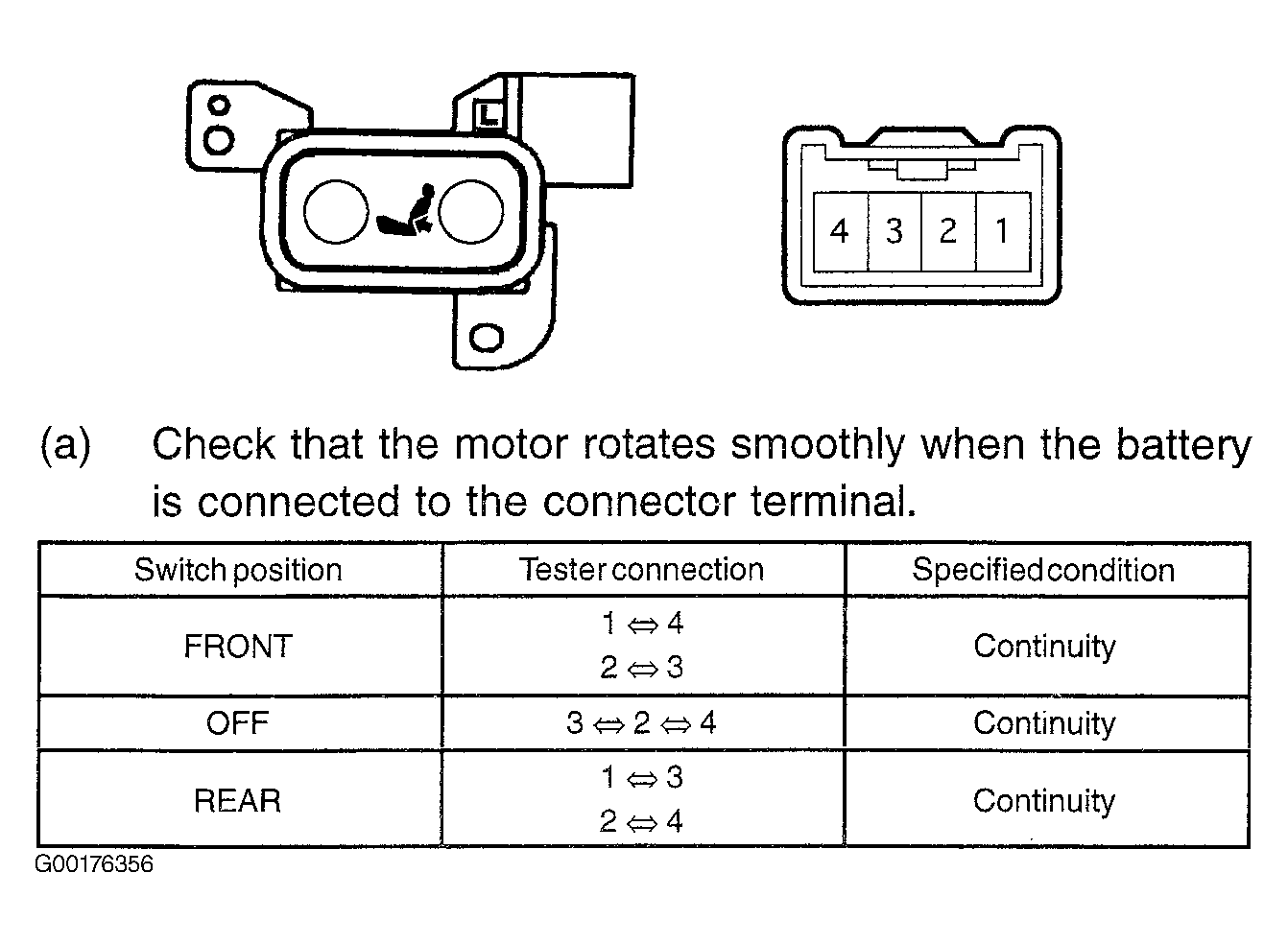

Fig 3: Inspecting LH Power Seat Front Switch Assembly Continuity
G00176356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

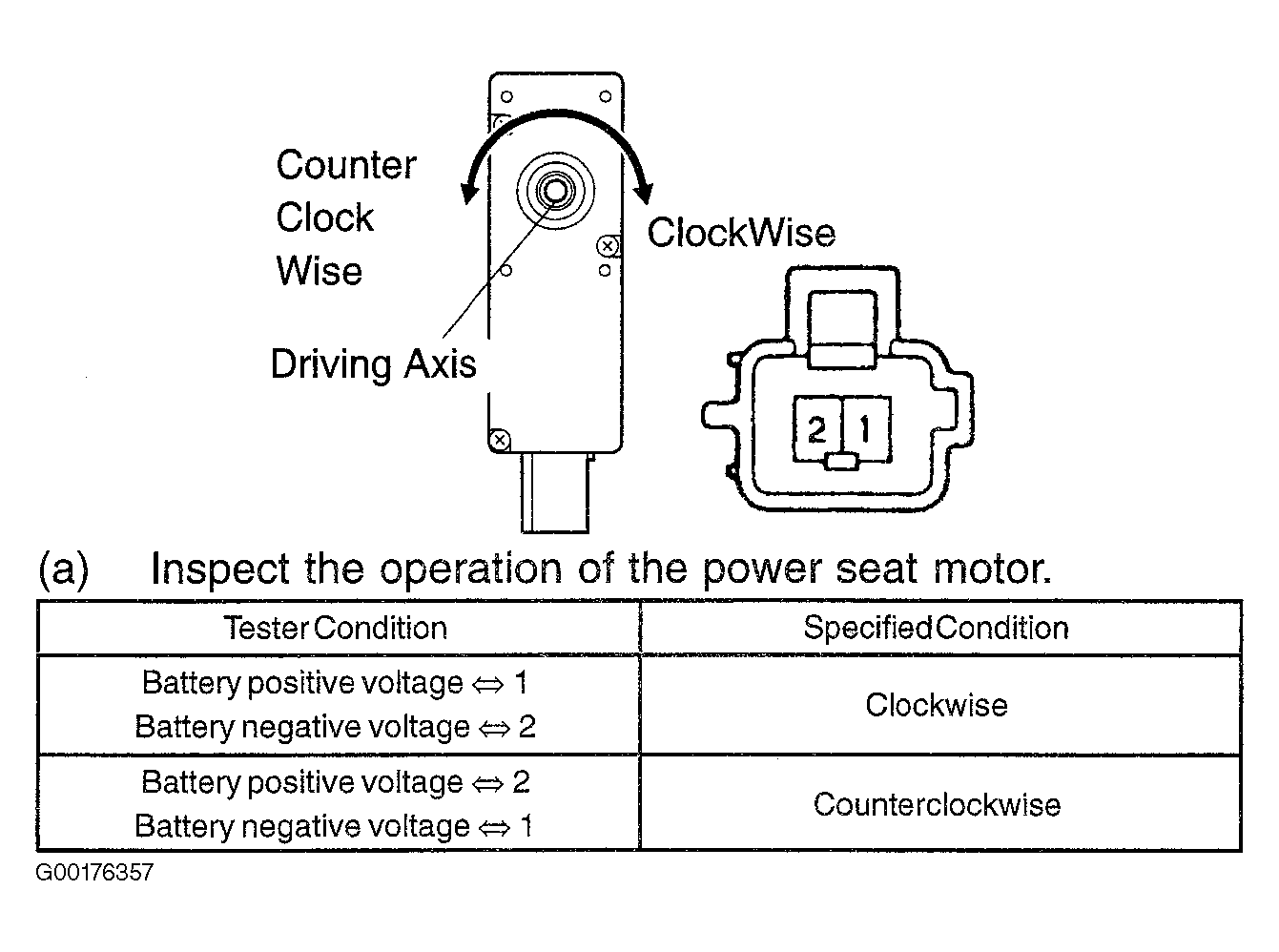

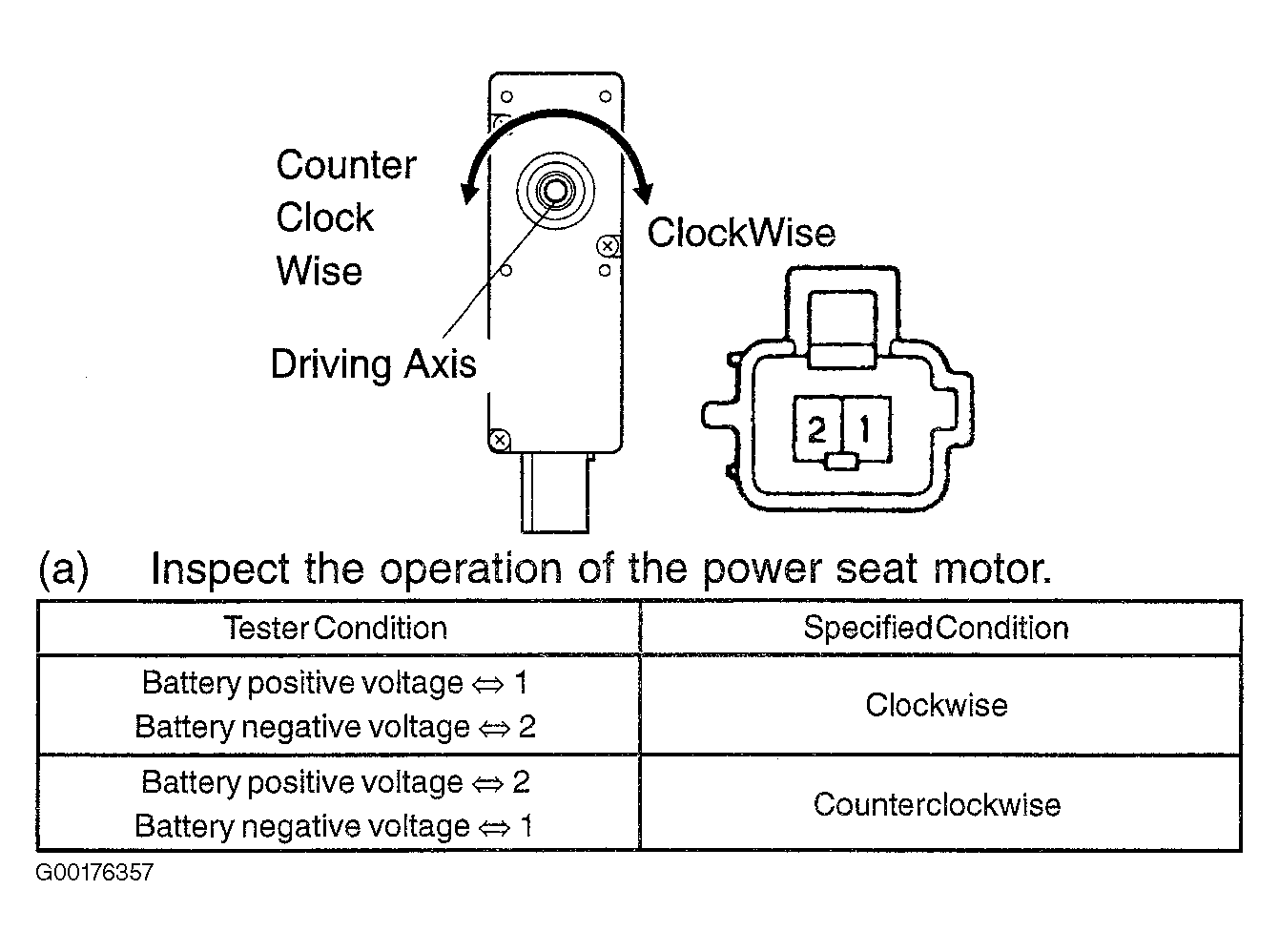

Fig 4: Inspecting RH Lumbar Support Adjuster Assembly Voltage
G00176357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

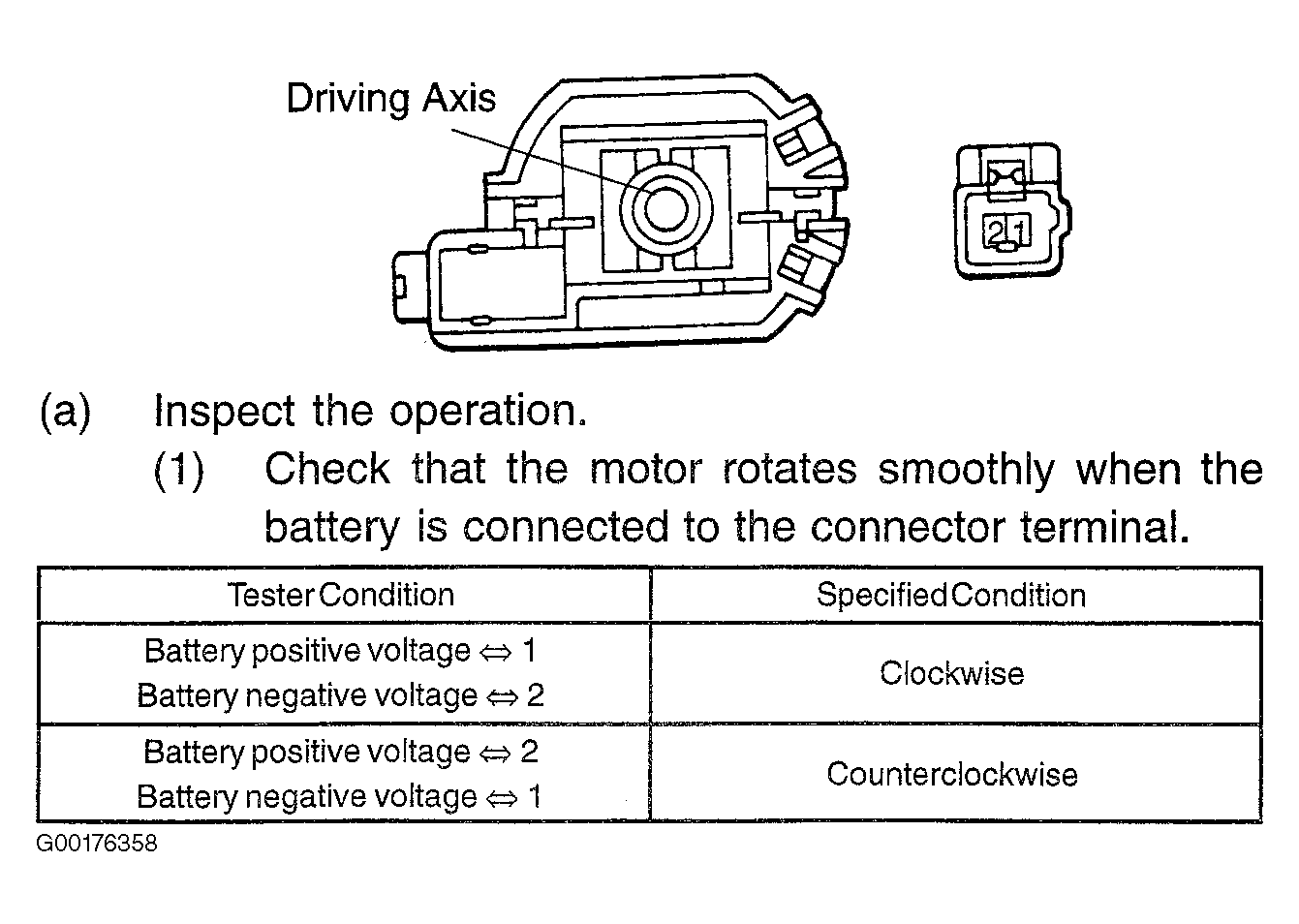

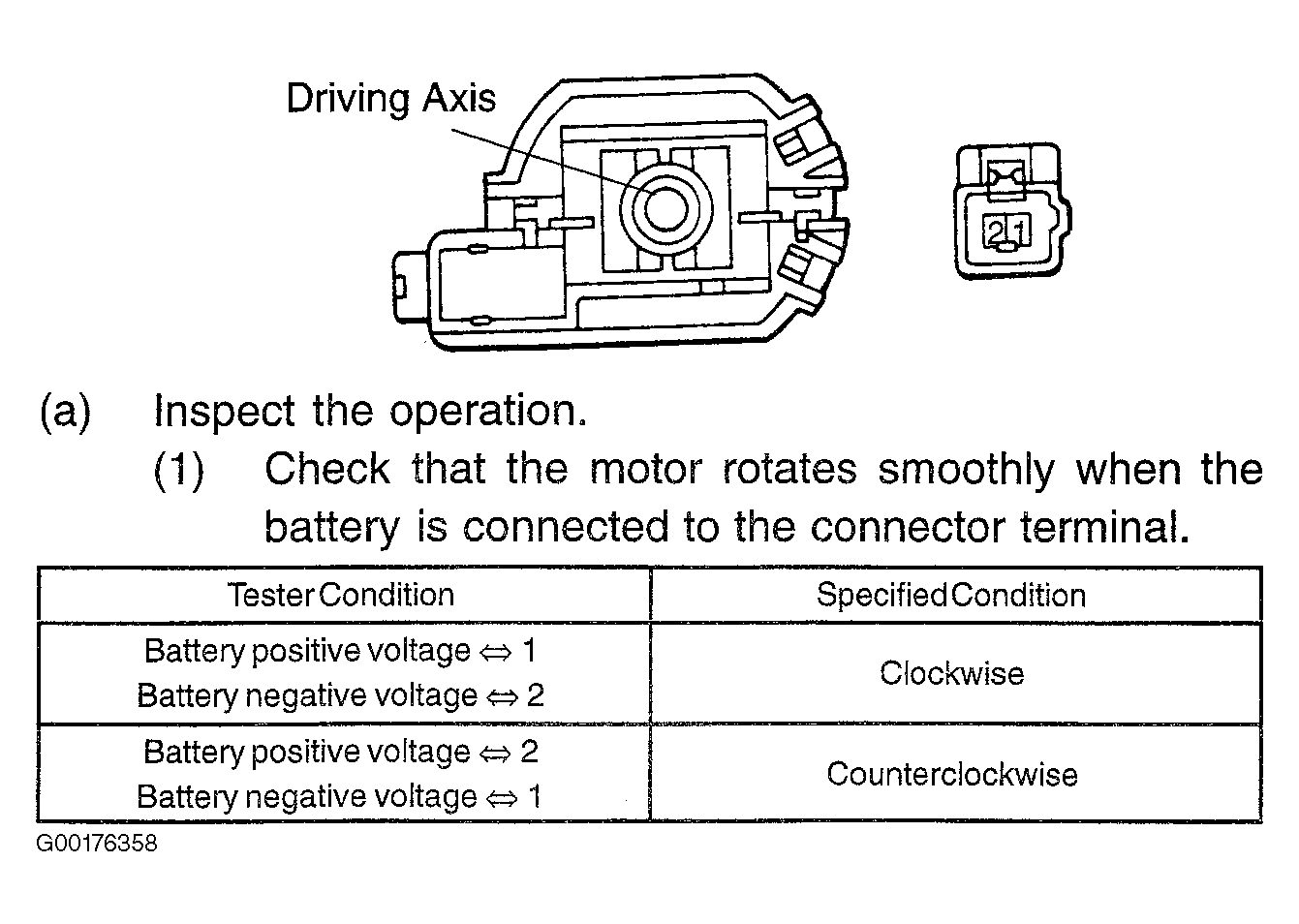

Fig 5: Inspecting Front Up/Down Power Seat Motor Assembly Voltage
G00176358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
