Terminals Of Ecu

For inspection, go to Fig 1.

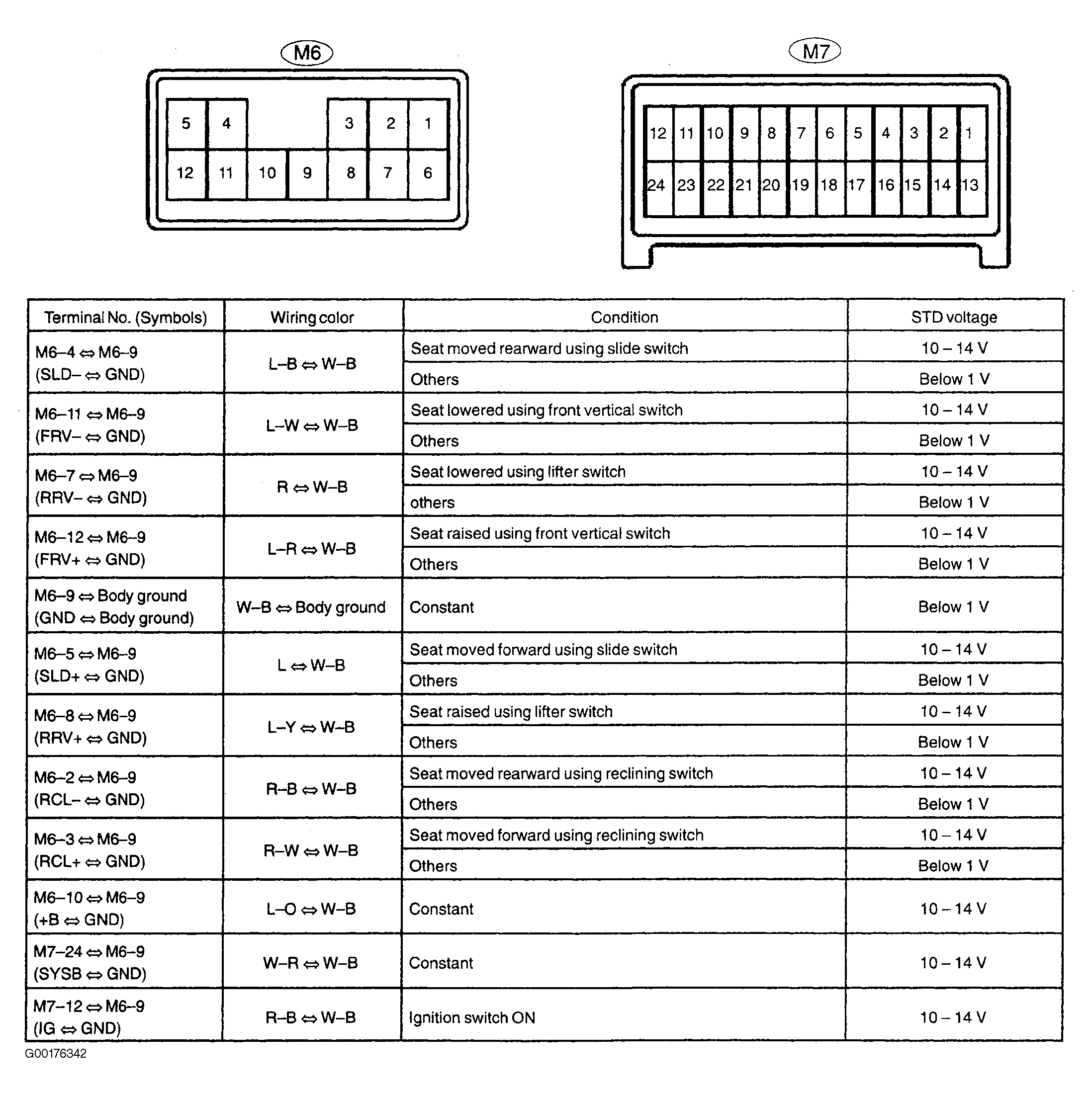

Fig 1: Inspecting ECU Power Seat Terminals
G00176342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
