Description & Operation
WARNING:
Vehicles are equipped with air bag supplemental restraint system. Before attempting any repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in AIR BAG RESTRAINT SYSTEMS
article.
CAUTION:
When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES
article in GENERAL INFORMATION before disconnecting battery.

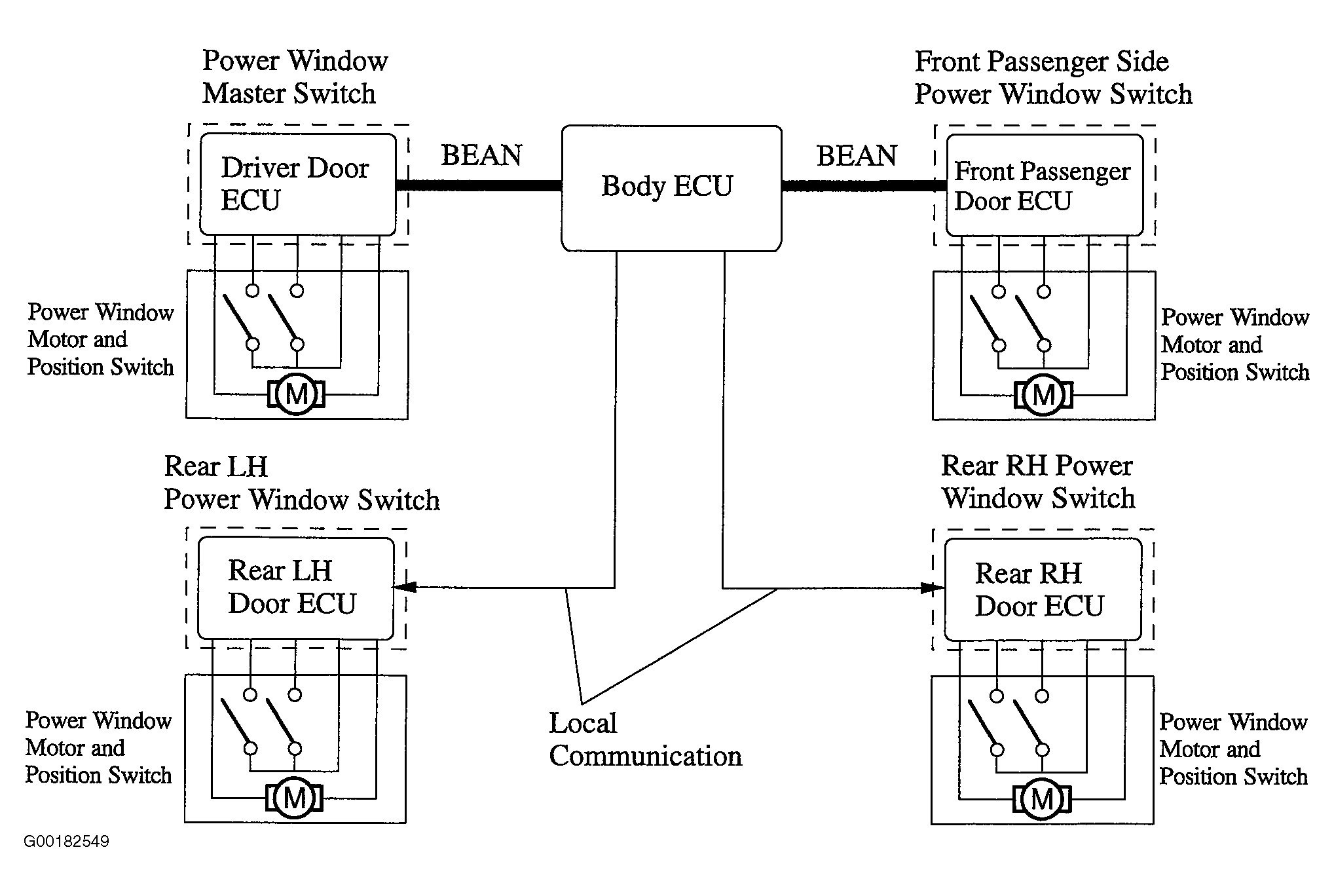

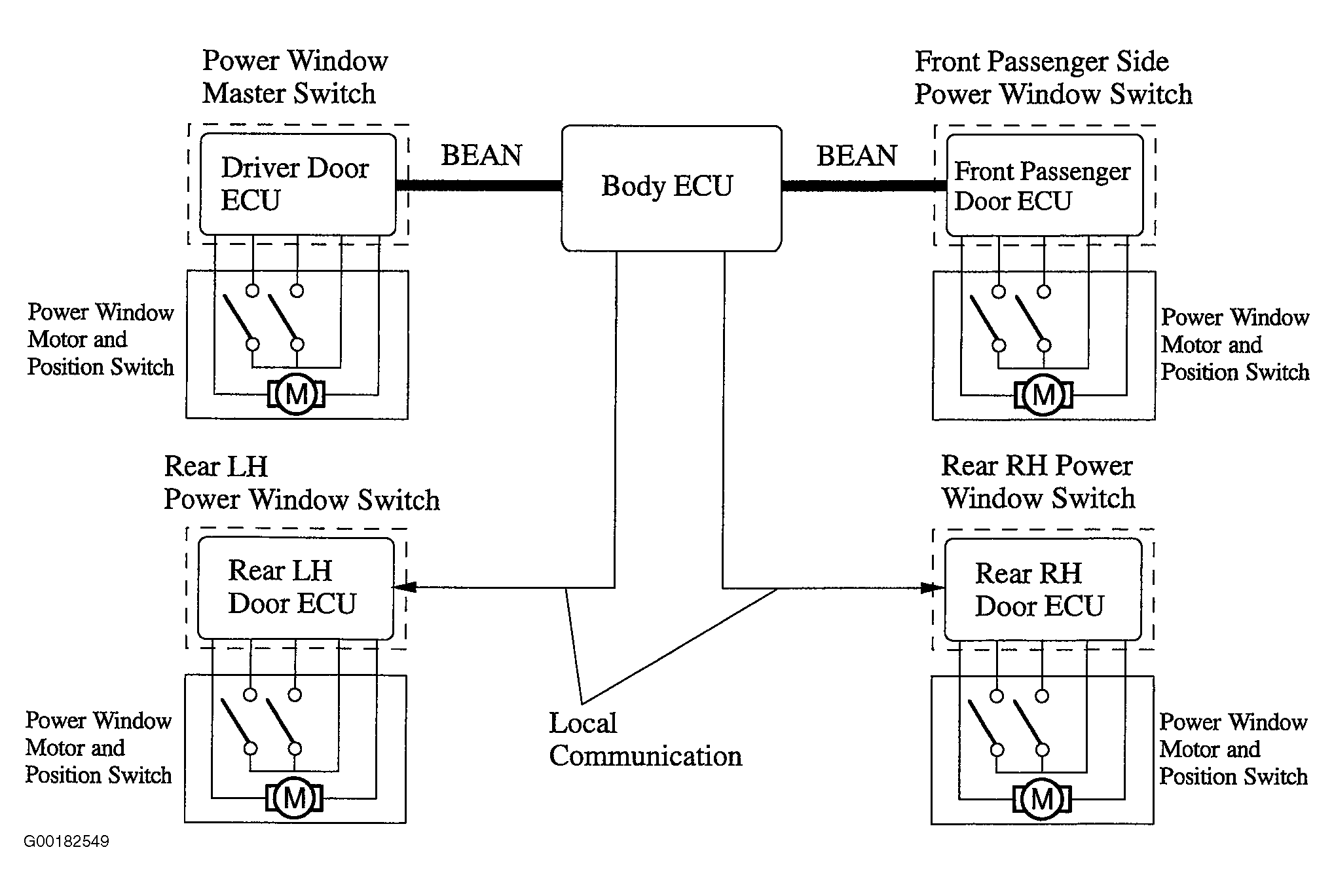

The power window system has the following functions:
- Manual Up-and-Down Function - This function causes the window to open or close while the power window switch is being pulled halfway up or pushed halfway down. The window stops as soon as the switch is released.
- All Door One-Touch Auto Up-and-Down Function - The all door one-touch auto up-and-down function enables the window of all doors to be fully opened or closed at a touch of the power window switch.
- Jam Protection Function - A jam protection function automatically stops the power window and moves it downward if a foreign object gets jammed in the window during one-touch auto-up operation.
- Remote Control Function - The up-and-down operations of the front passenger door window and the rear door windows can be controlled by operating the power window master switch.
- Key-Off Operation Function - The driver's door key-off operation function makes it possible to operate the power window for approximately 43 seconds after the ignition switch is turned to the ACC or LOCK position, if the front doors are not opened.
- Key-Linked Down Function - A key-linked down function, which is linked to the driver door key cylinder operation, opens the windows of all the doors.
- Transmitter-Linked Down Function - When the body ECU receives an unlock signal from the transmitter continuously for longer than 2.5 seconds, the door ECUs control their power window motors in accordance with the signal to open the windows.
