Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

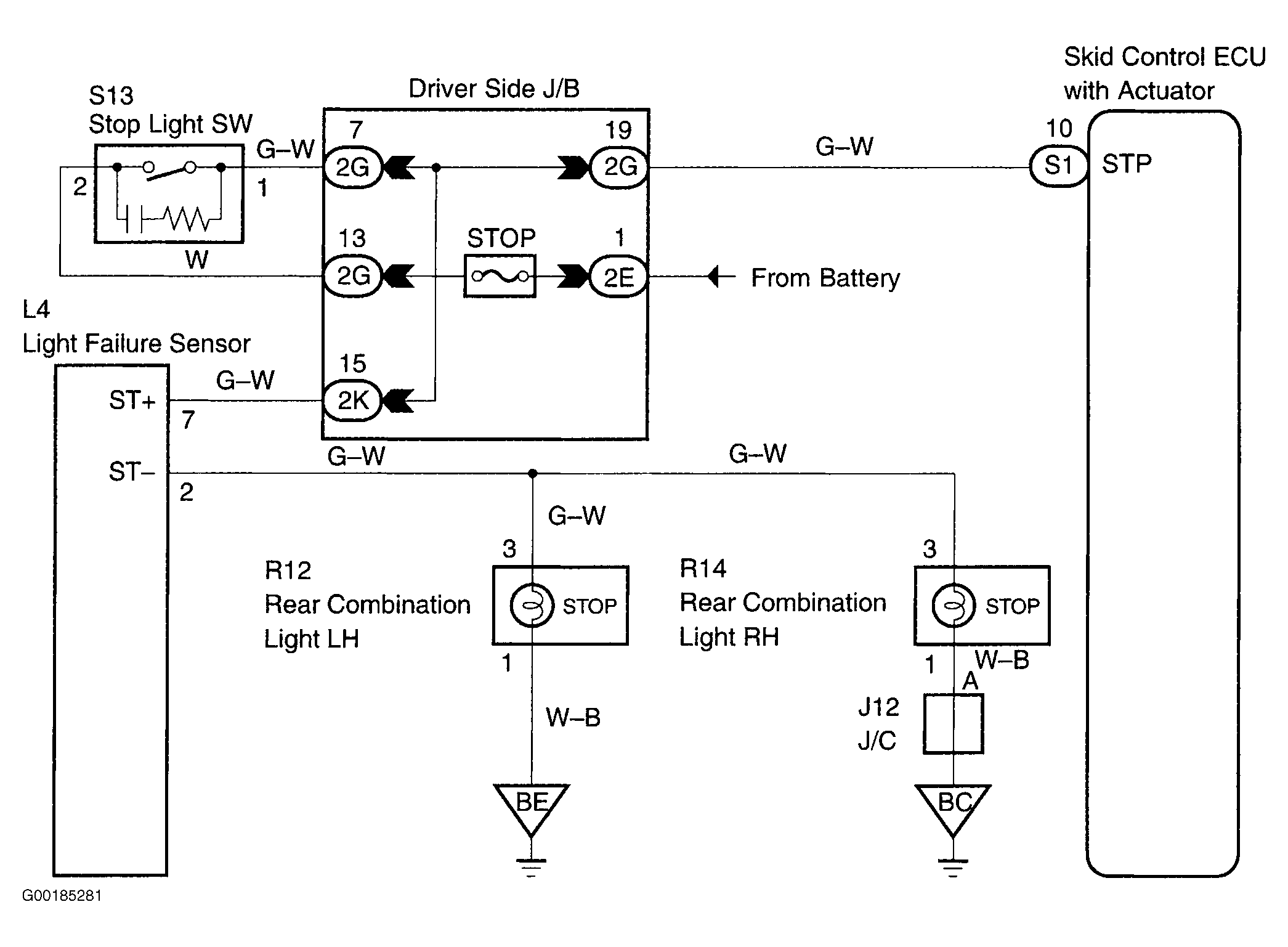

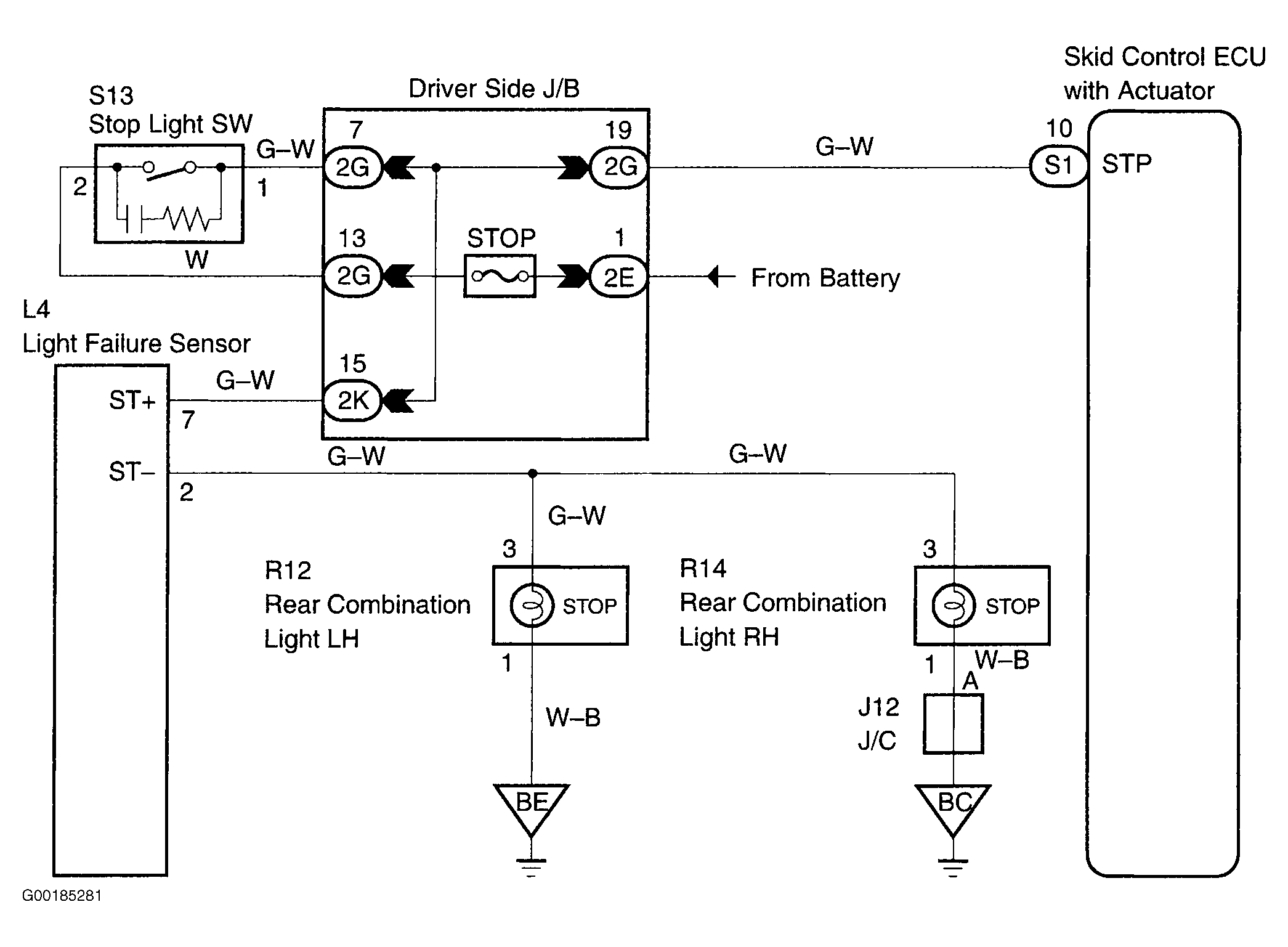

Fig 1: Wiring Diagram (Stop Light Switch Circuit)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

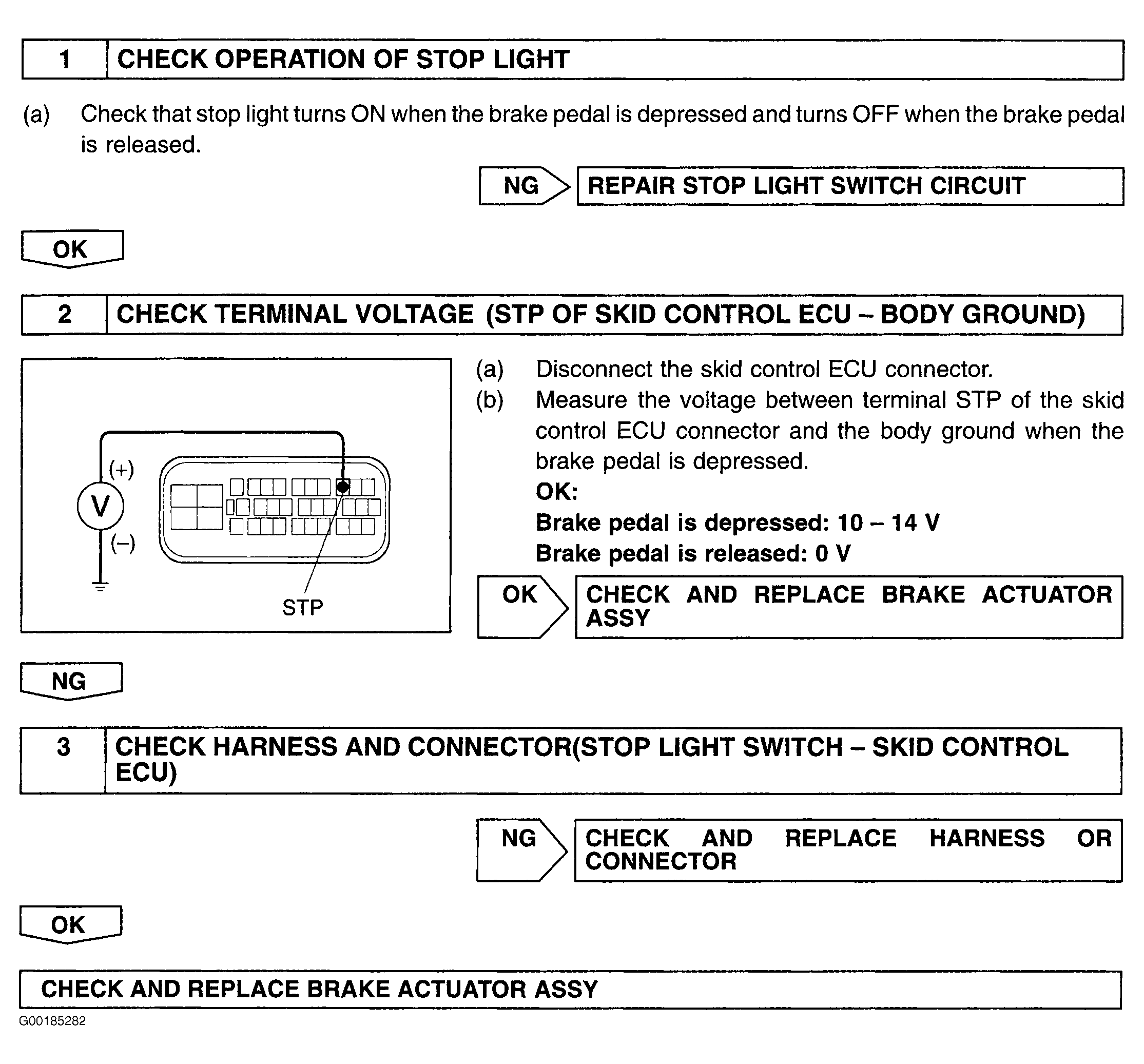

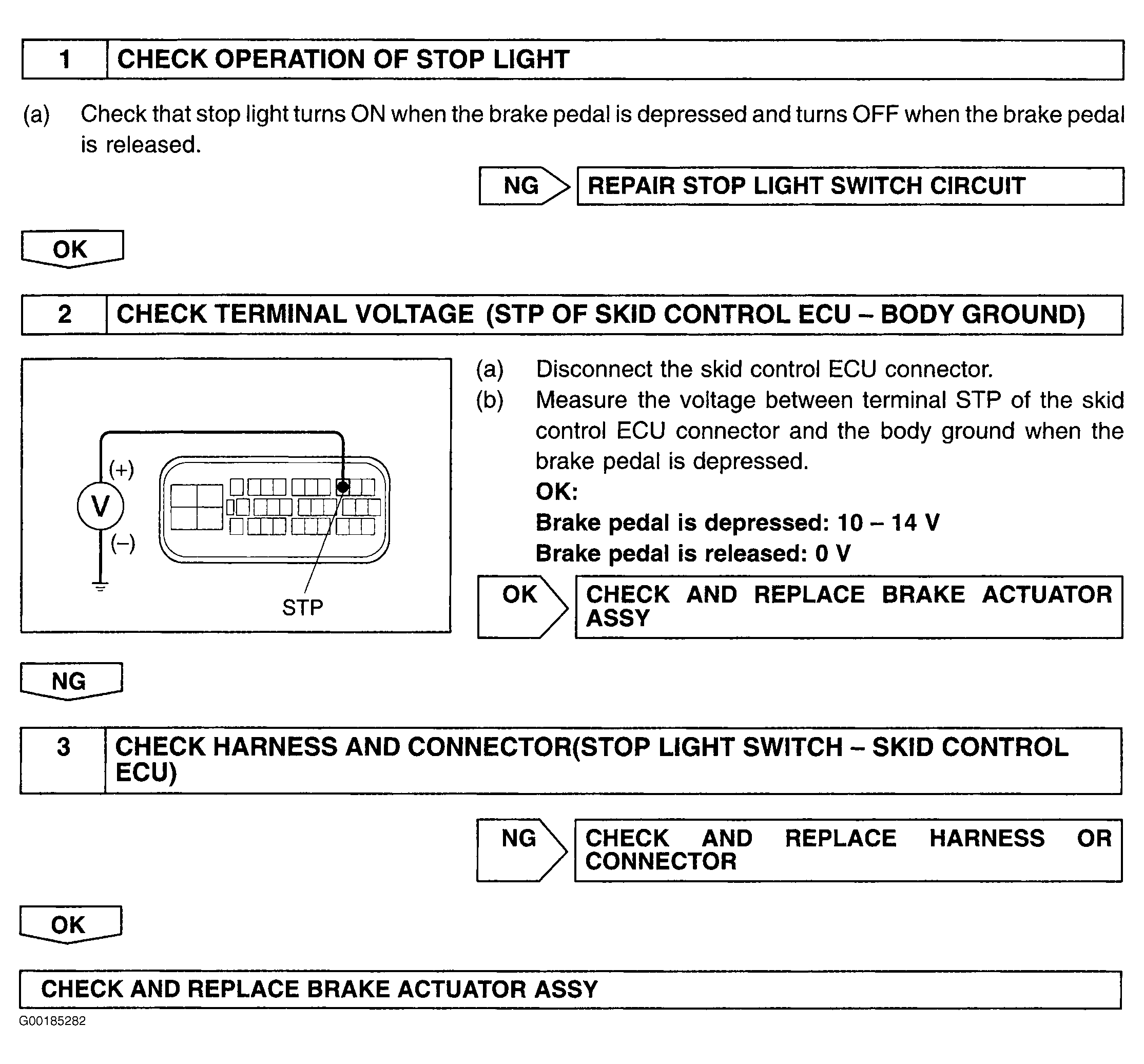

Fig 2: Testing Procedure (Stop Light Switch Circuit)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
