Testing Procedure

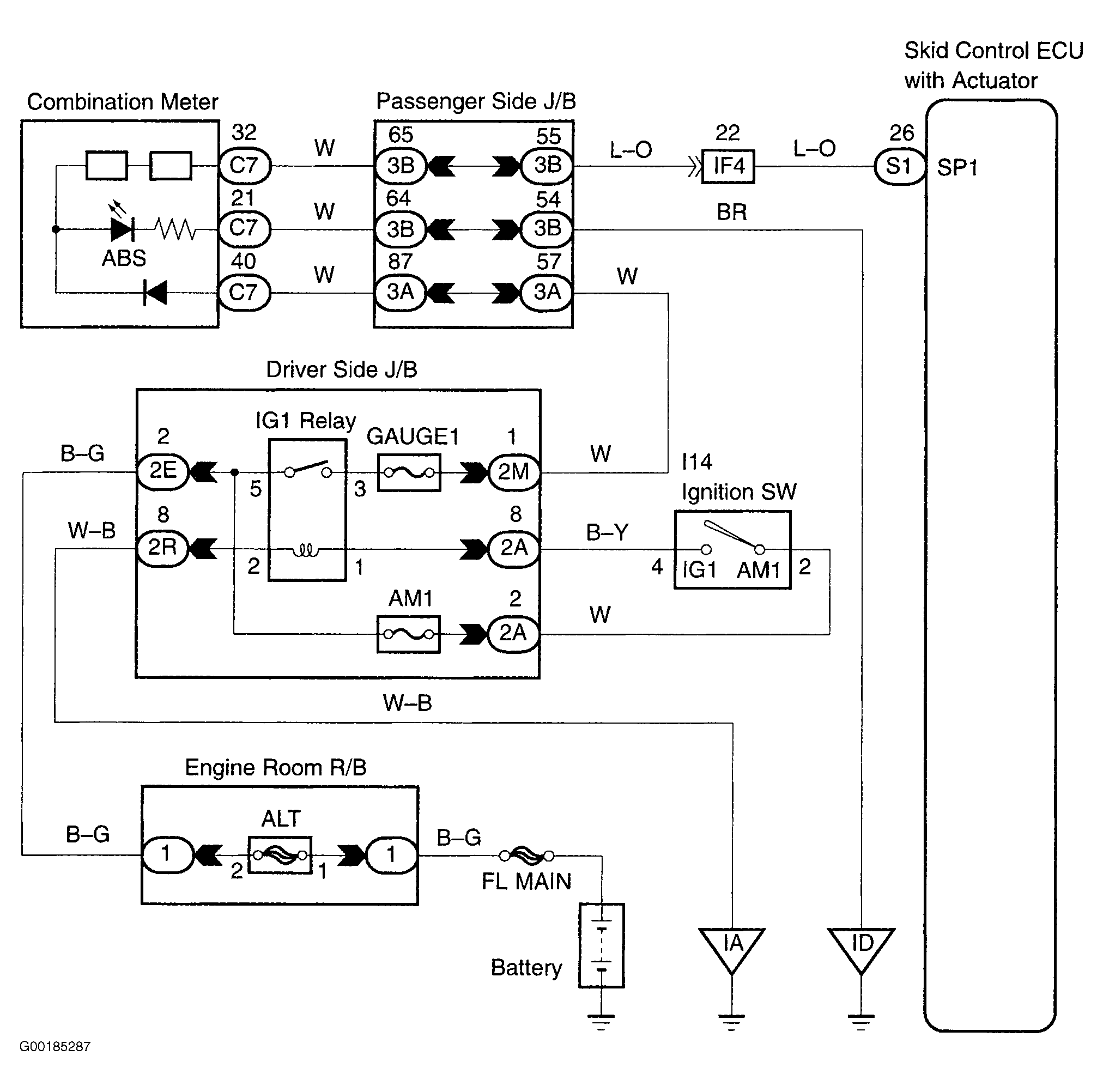

For wiring diagram, see Figure. For testing procedure, see Fig 1.

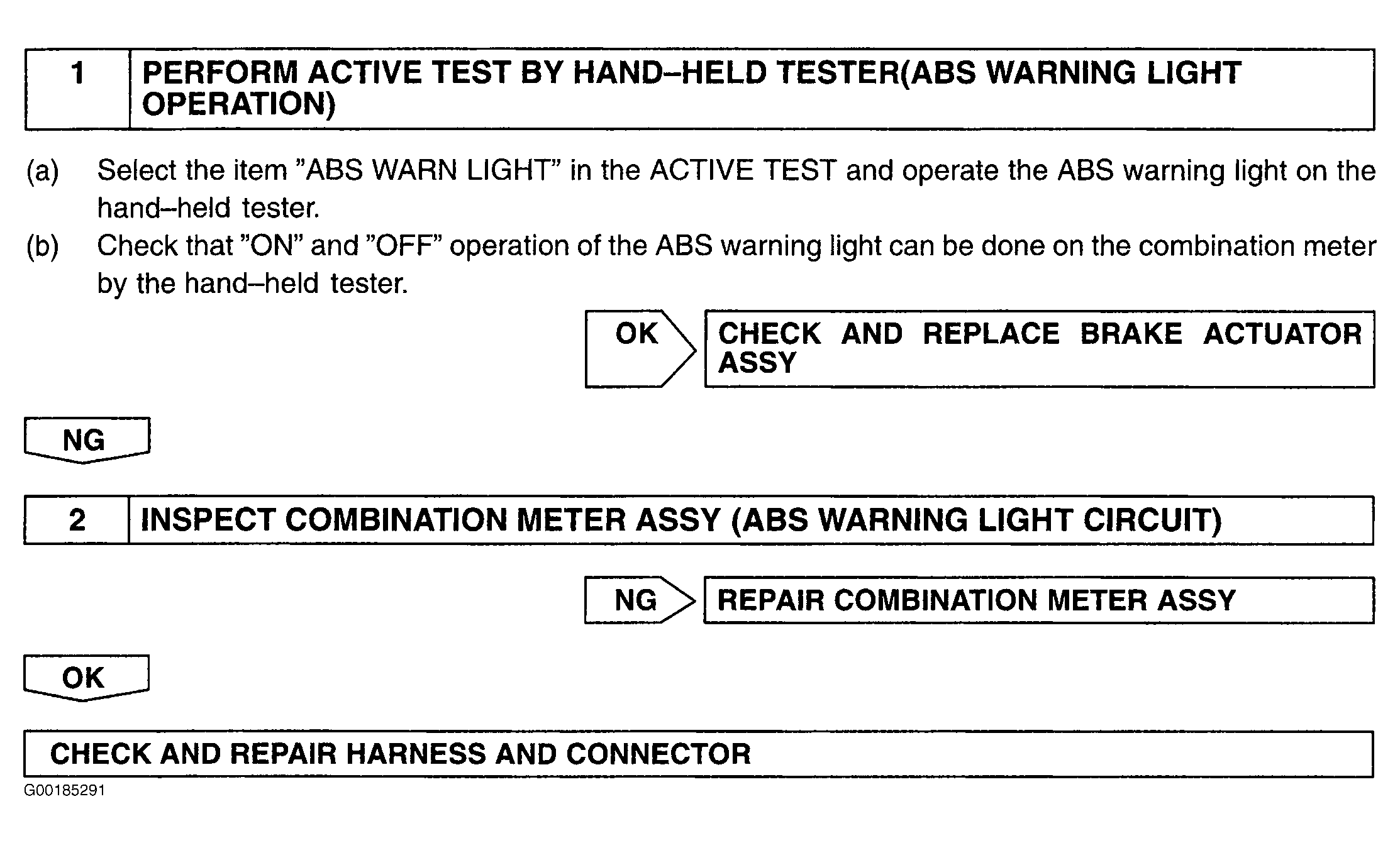

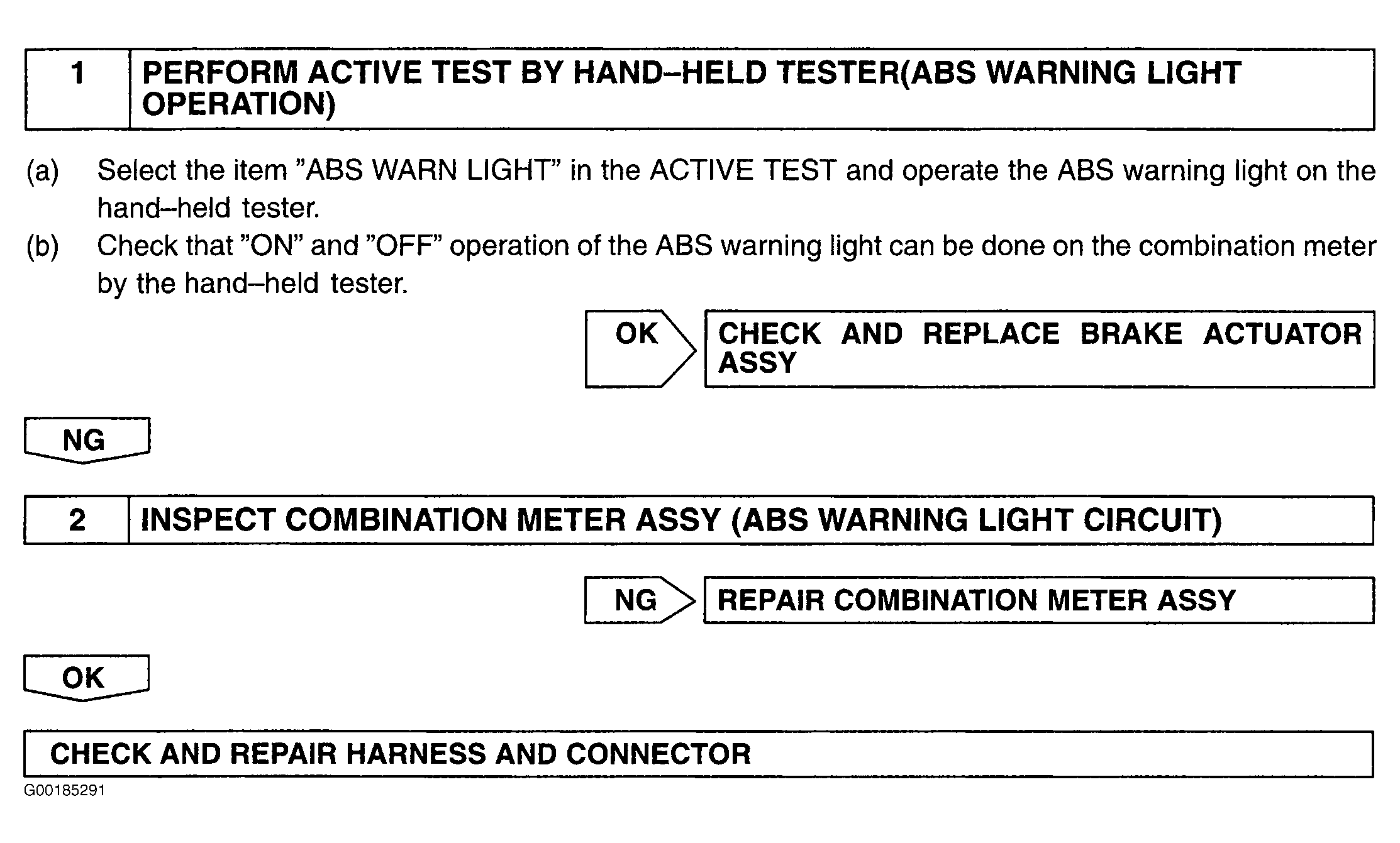

Fig 1: Testing Procedure ABS Warning Light Circuit Does Not Light Up

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
