Removal & Installation : Installation

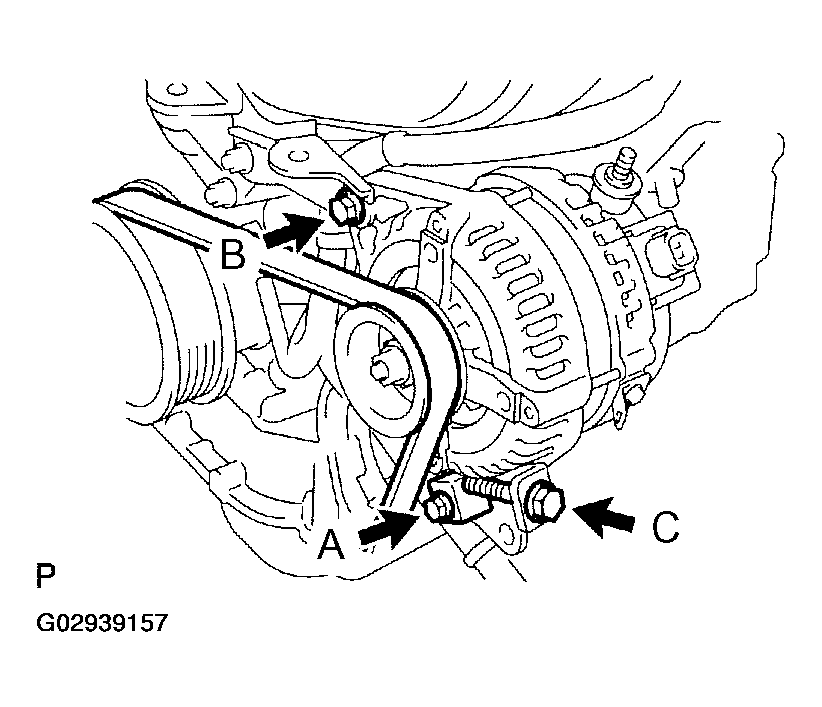

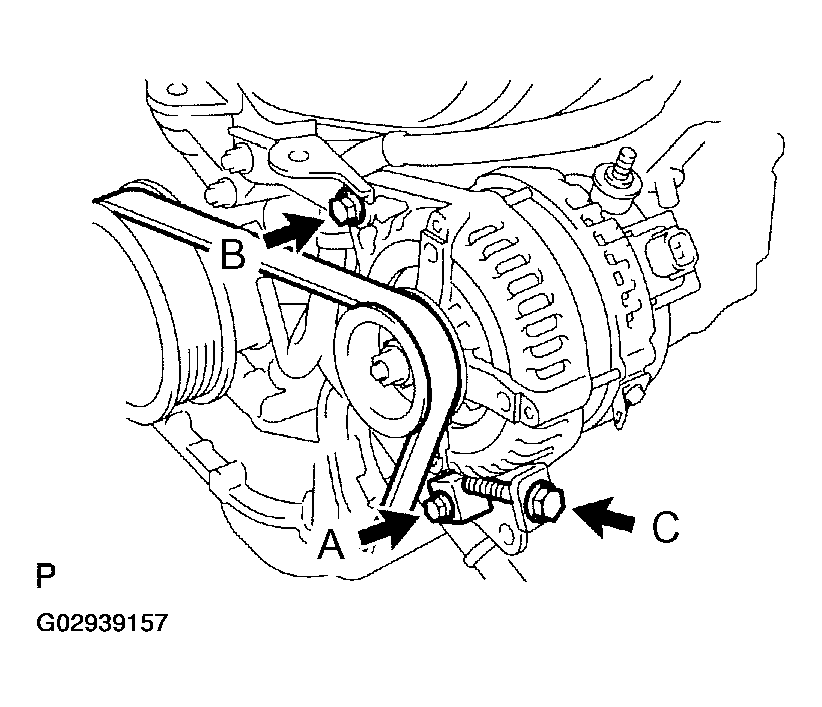

  1. Install generator. Mount generator on the generator bracket with the pivot bolt and adjusting lock bolt. See Figure. Do not tighten the bolts yet. Connect the generator connector. Connect the generator wire with the nut.
  2. Install drive belt. Install the drive belt with the adjusting bolt. Using a belt tension gauge, measure the drive belt tension. See BELT TENSION .
    3. NOTE: "New belt" refers to a belt which has been used less than 5 minutes on a running engine. "Used belt" refers to a belt which has been used on a running engine for 5 minutes or more.
  3. Tighten the pivot bolt and adjusting lock bolt. Torque: 56 N.m (570 kgf.cm, 41 ft.lbf) for pivot bolt, 18 N.m (180 kgf.cm, 13 ft.lbf) for lock bolt * After installing a belt, check that it fits properly in the ribbed grooves. Check by hand to confirm that the belt has not slip out of the groove on the bottom of the pulley. After installing a new belt, run the engine for about 5 minutes and recheck the belt tension.
  4. Connect negative (-) terminal cable to battery.
  5. Perform on-vehicle inspection. See ON-VEHICLE INSPECTION .
