Input Shaft ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

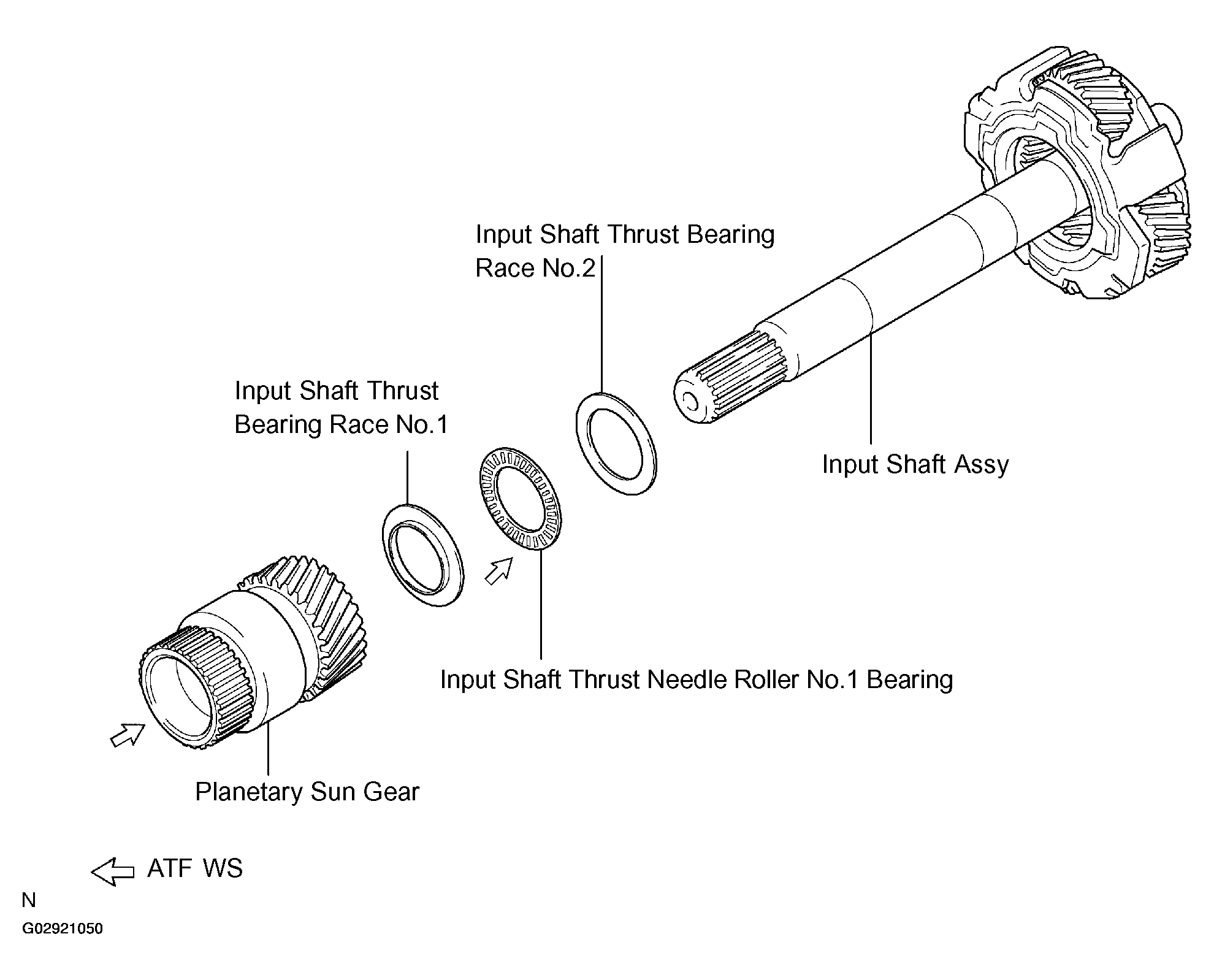

Fig 1: Exploded View Of Input Shaft Assy Component
G02921050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
