Shift Lever ASSY: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

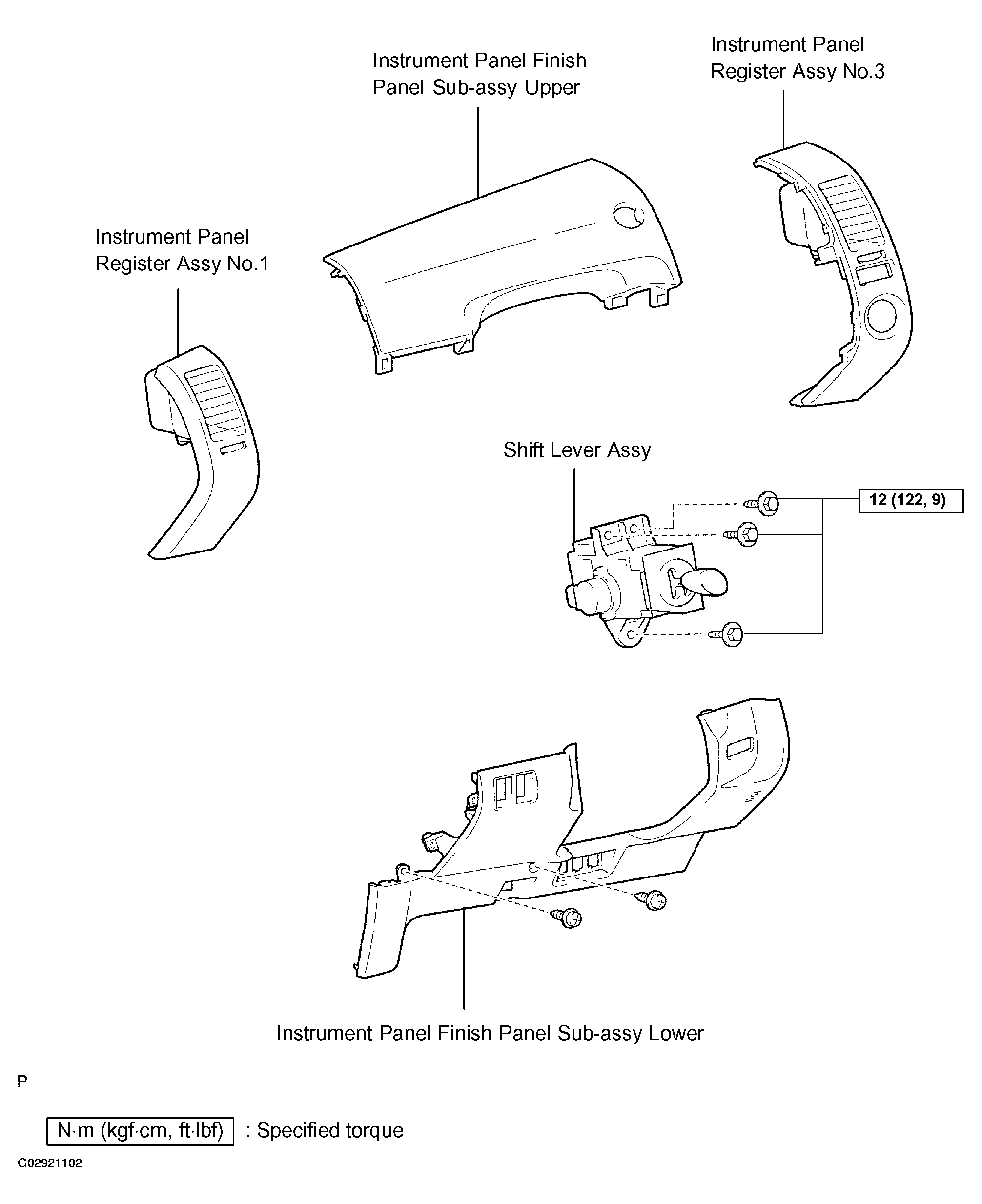

Fig 1: Exploded View Of Shift Lever Assy Components (1 Of 2)
G02921102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

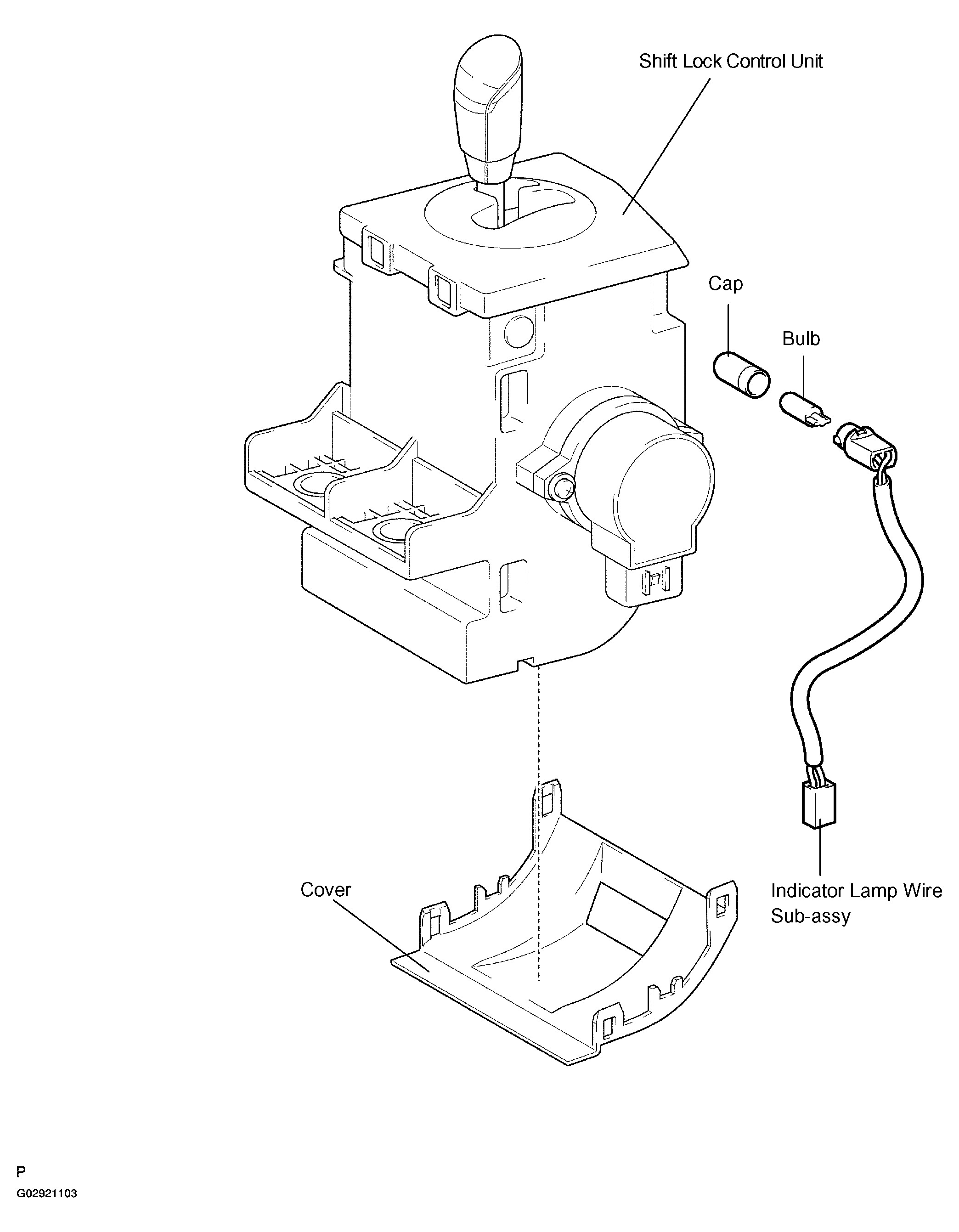

Fig 2: Exploded View Of Shift Lever Assy Components (2 Of 2)
G02921103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
