Battery Current Sensor: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When working on the high voltage systems, always wear insulating gloves.
  • After removing the service plug grip, do not operate the power switch as it may damage the hybrid vehicle control ECU.
  • Keep the removed service plug in your pocket to prevent other technicians from reconnecting it while you are servicing the vehicle.
  • After removing the service plug grip, do not touch the high voltage connectors and terminals for 5 minutes.
  1. PRECAUTION (See  PRECAUTION  )
  2. REMOVE REAR FLOOR BOARD NO. 2 (See  SERVICE PLUG GRIP  )
  3. REMOVE DECK FLOOR BOX REAR (See  SERVICE PLUG GRIP  )
  4. REMOVE REAR FLOOR BOARD NO. 3 (See  SERVICE PLUG GRIP  )
  5. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SERVICE PLUG GRIP  )
  6. REMOVE SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
  7. REMOVE DECK TRIM COVER REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  8. REMOVE TONNEAU COVER ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  9. REMOVE REAR SEAT CUSHION ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  10. REMOVE REAR FLOOR BOARD NO. 1 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  11. REMOVE REAR SIDE SEAT BACK FRAME LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  12. REMOVE REAR FLOOR BOARD NO. 4 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  13. REMOVE DECK FLOOR BOX LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  14. REMOVE DECK TRIM SIDE PANEL ASSY LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  15. REMOVE BATTERY CARRIER BRACKET (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  16. REMOVE BATTERY CARRIER PANEL NO. 6 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  17. REMOVE BATTERY CURRENT SENSOR
    NOTE: Wear insulating gloves.
    1. Remove the terminal cover.
      Fig 1: Removing Terminal Cover
      G00950501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut, then disconnect the main battery cable.

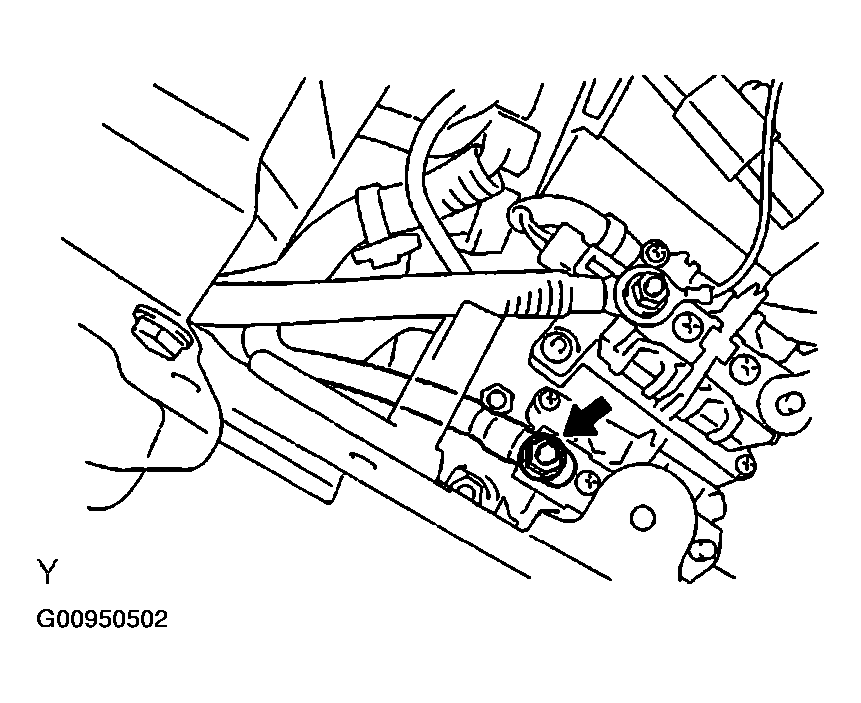

      Fig 2: Removing Nut And Disconnecting Main Battery Cable
      G00950502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector.
    4. Remove the 2 screws and battery current sensor.

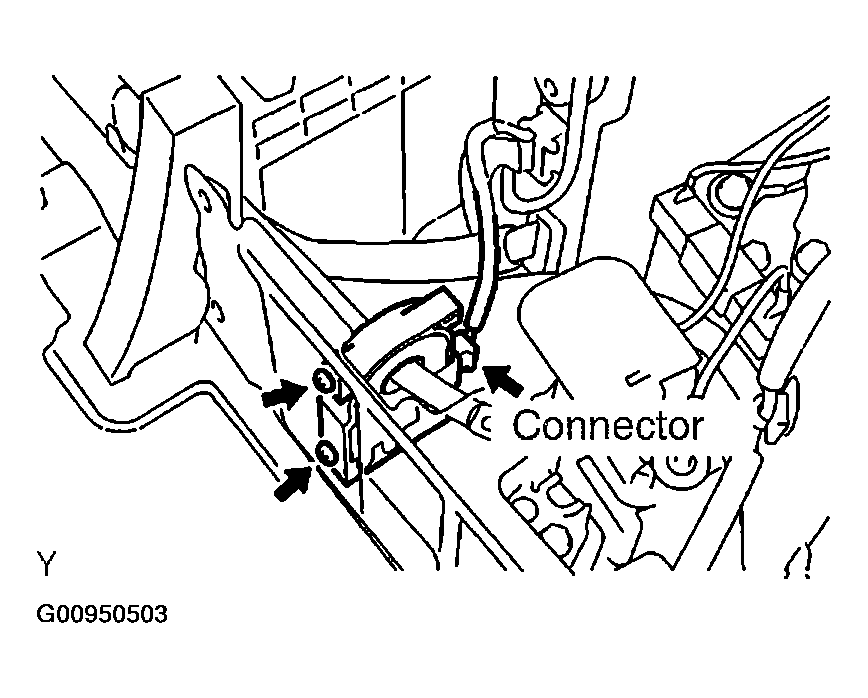

      Fig 3: Disconnecting Connector
      G00950503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL BATTERY CURRENT SENSOR
    NOTE: Wear insulating gloves.
    1. Install the battery current sensor with the 2 screws.

      Torque: 1.4 N.m (14 kgf.cm, 12 in.lbf)

    2. Connect the connector.
      Fig 4: Connecting Connector
      G00950504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the main battery cable with a new nut.

      Torque: 5.6 N.m (57 kgf.cm, 50 in.lbf)

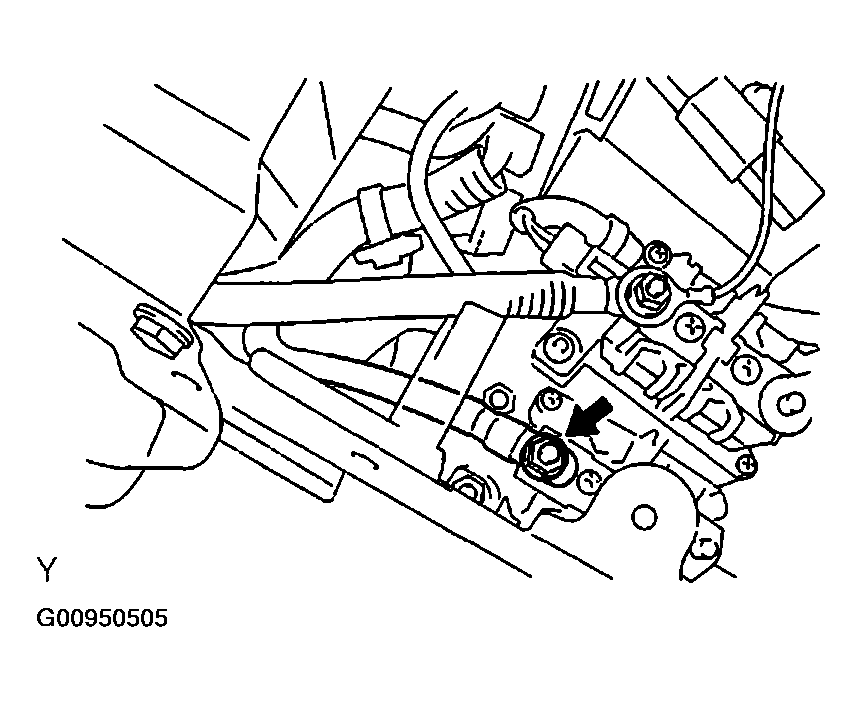

      Fig 5: Installing Main Battery Cable With New Nut
      G00950505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the terminal cover.

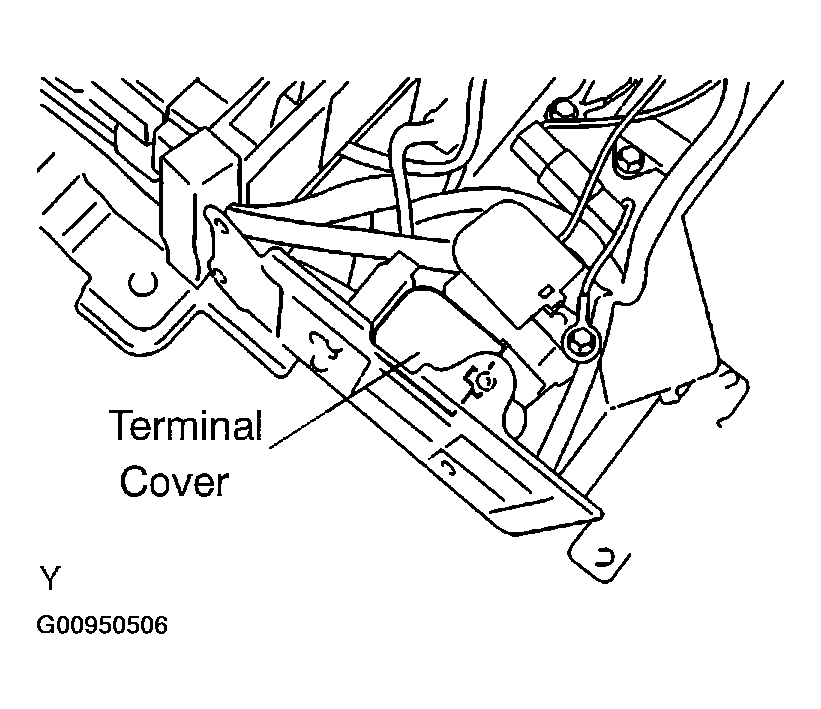

      Fig 6: Installing Terminal Cover
      G00950506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL BATTERY CARRIER PANEL NO. 6 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
    NOTE: Wear insulating gloves.
  20. INSTALL BATTERY CARRIER BRACKET (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  21. INSTALL DECK TRIM SIDE PANEL ASSY LH
  22. INSTALL DECK FLOOR BOX LH
  23. INSTALL REAR FLOOR BOARD NO. 4
  24. INSTALL REAR SIDE SEAT BACK FRAME LH
  25. INSTALL REAR FLOOR BOARD NO. 1
  26. INSTALL REAR SEAT CUSHION ASSY
  27. INSTALL TONNEAU COVER ASSY
  28. INSTALL DECK TRIM COVER REAR
  29. INSTALL SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
    NOTE: Wear insulating gloves.
  30. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

  31. INSTALL REAR FLOOR BOARD NO. 3
  32. INSTALL DECK FLOOR BOX REAR
  33. INSTALL REAR FLOOR BOARD NO. 2
  34. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
