HV Battery: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

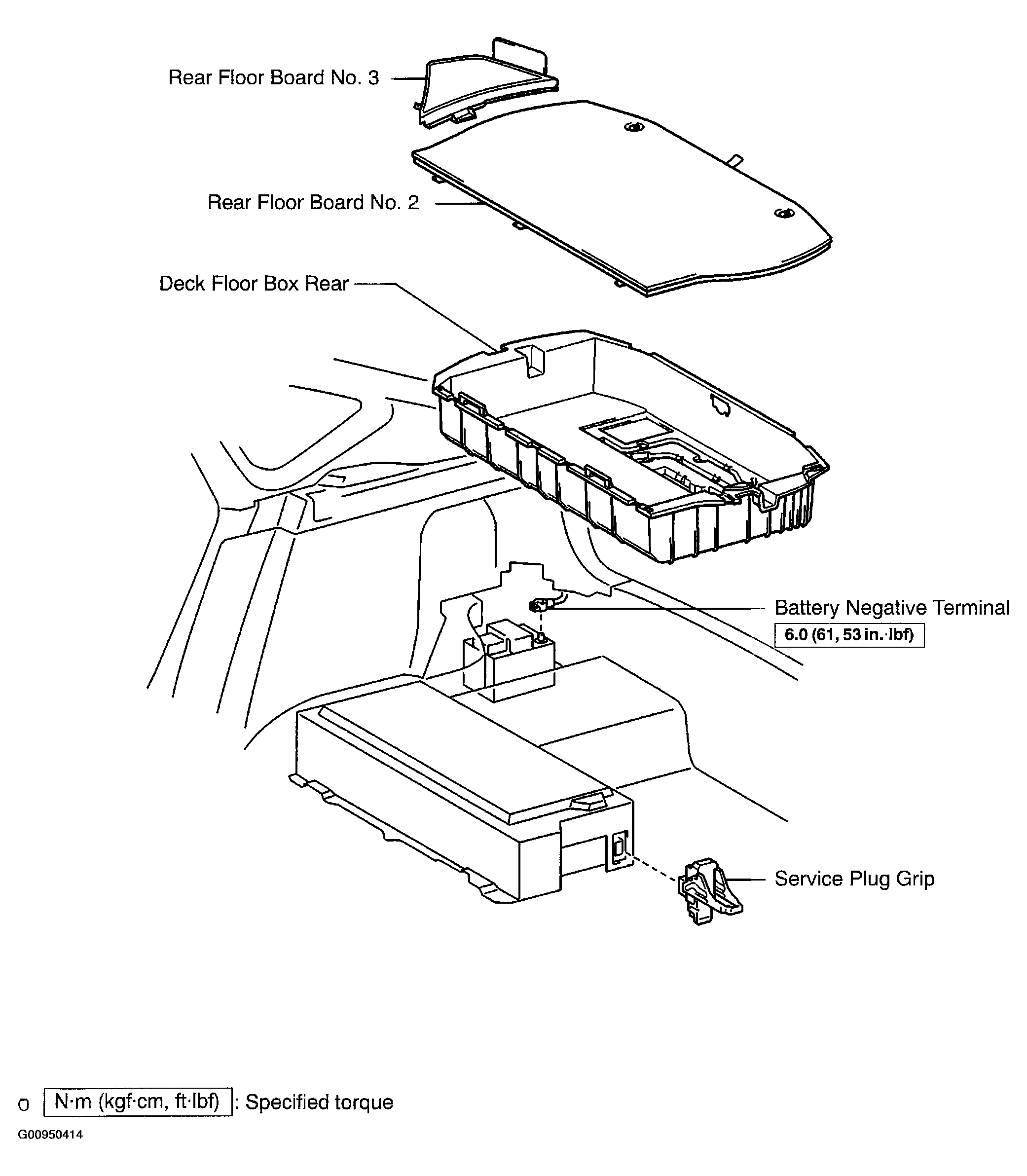

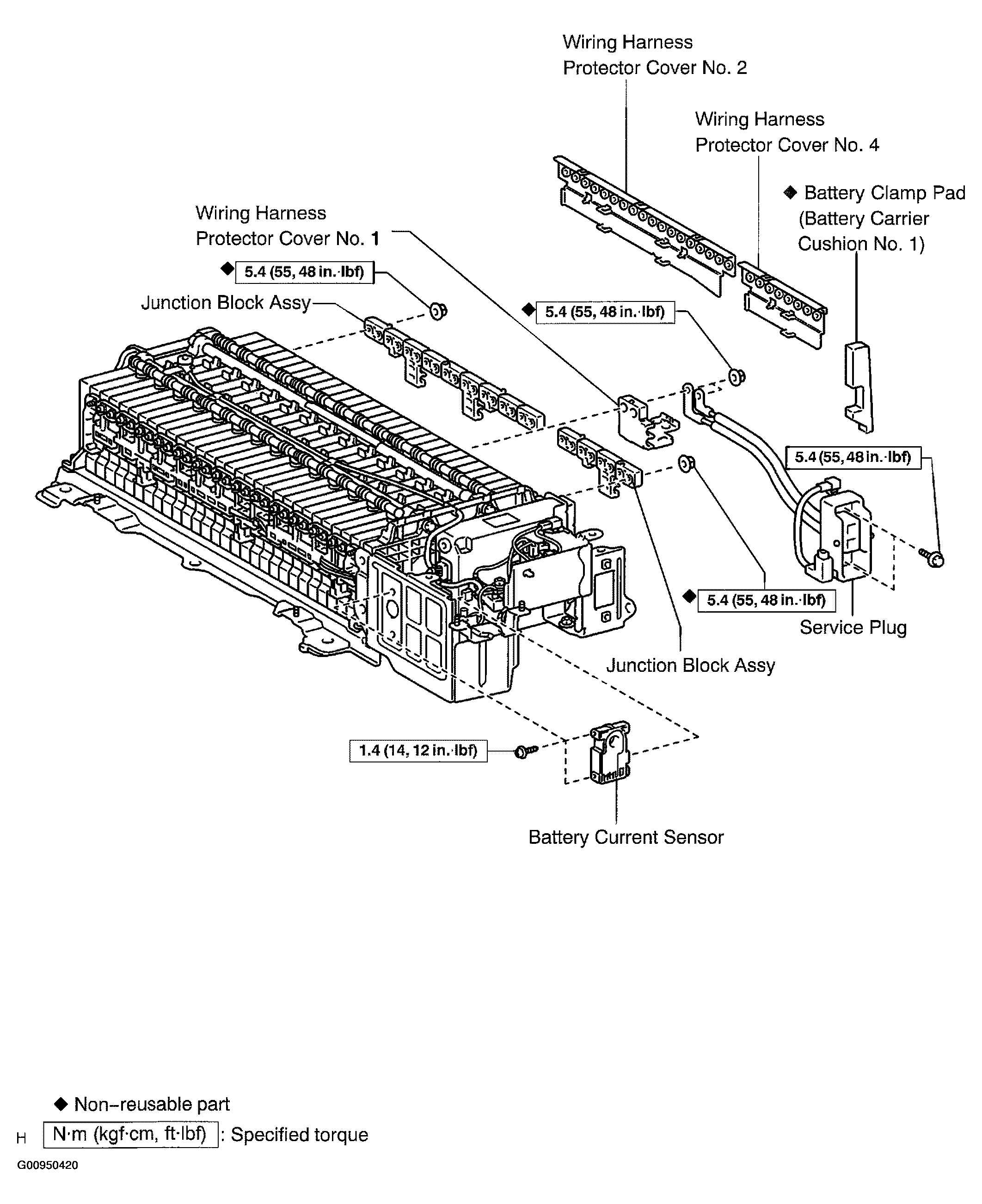

Fig 1: Identifying HV Battery Components (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

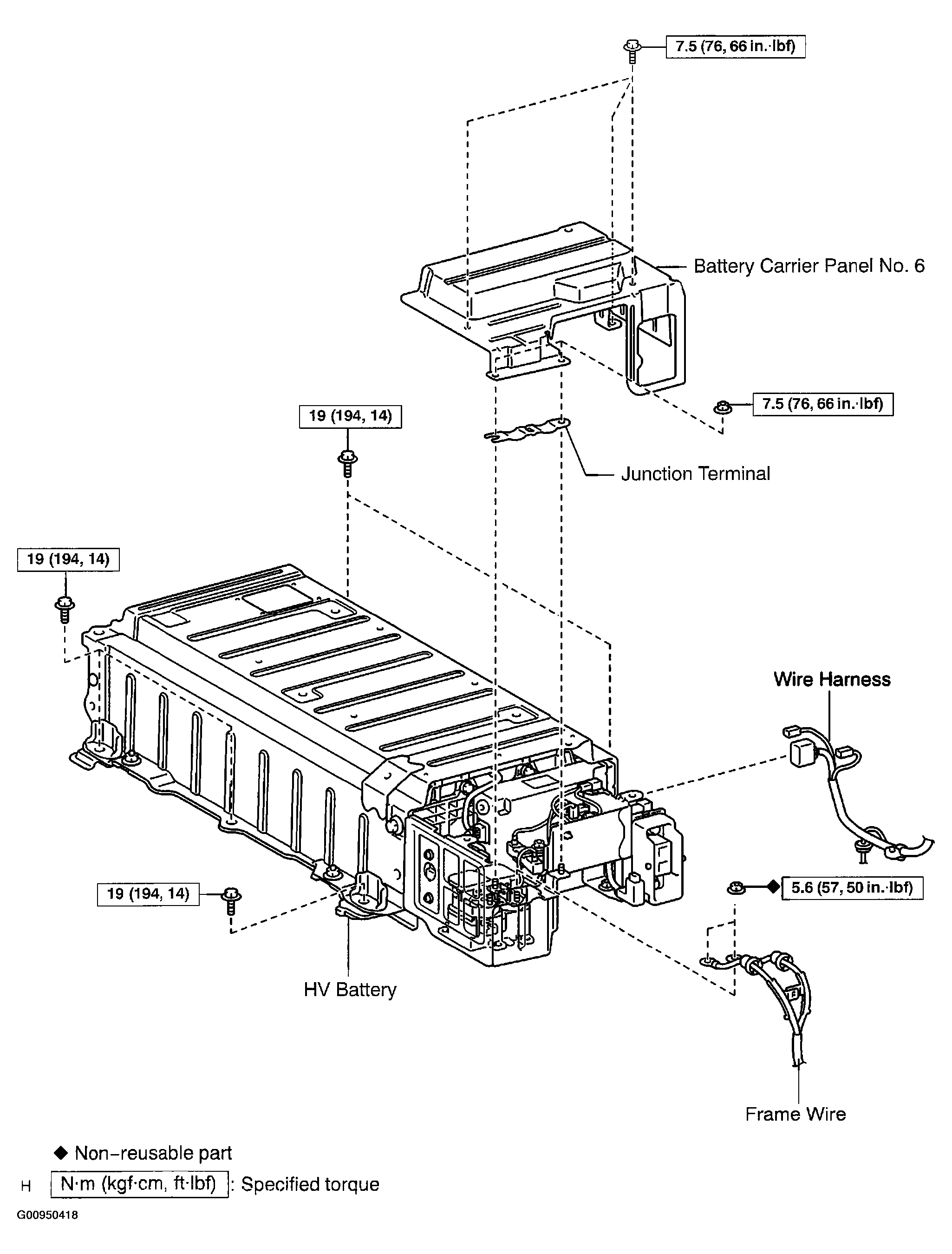

Fig 2: Identifying HV Battery Components (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

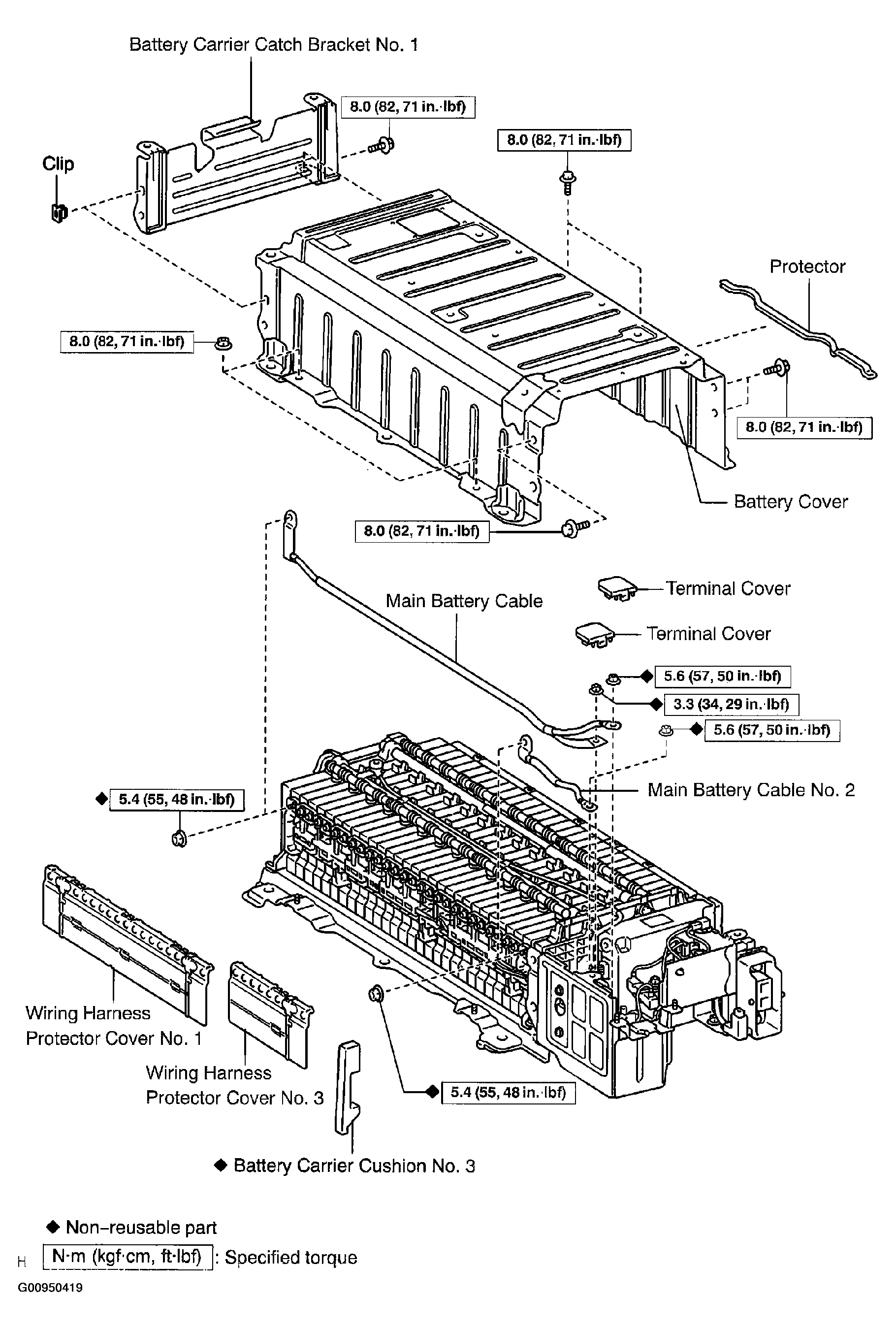

Fig 3: Identifying HV Battery Components (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

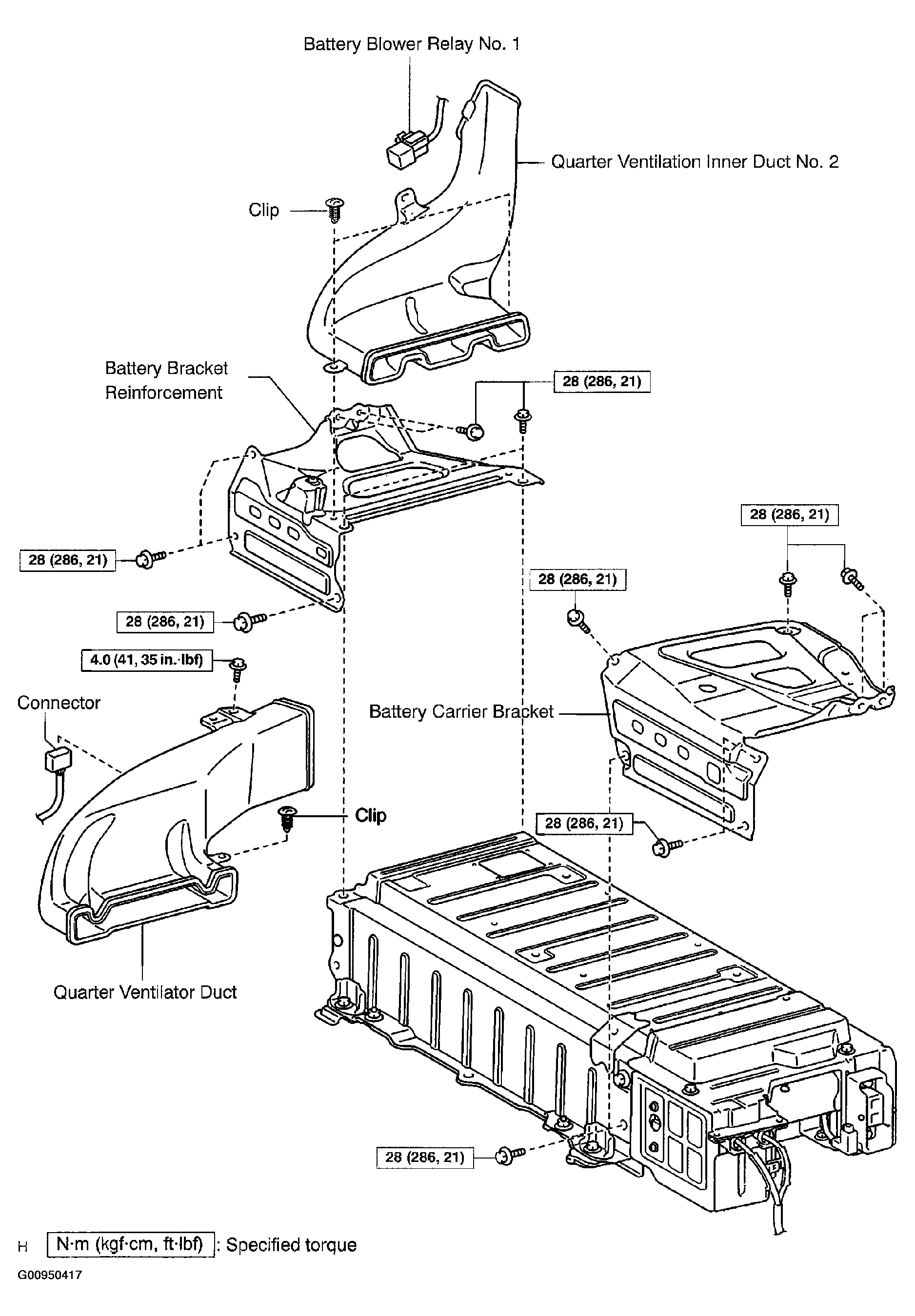

Fig 4: Identifying HV Battery Components (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

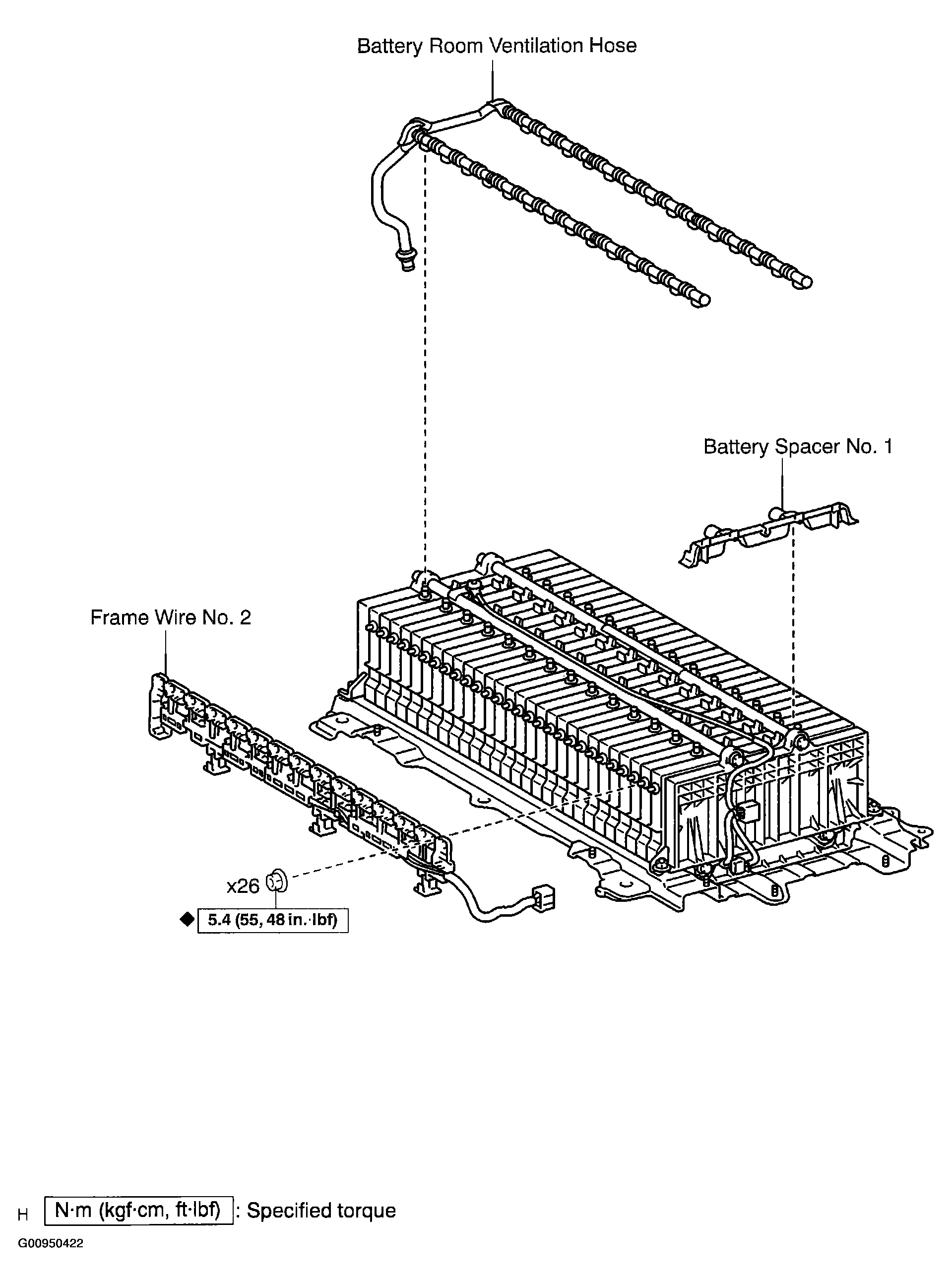

Fig 5: Identifying HV Battery Components (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying HV Battery Components (6 Of 9)

Fig 7: Identifying HV Battery Components (7 Of 9)

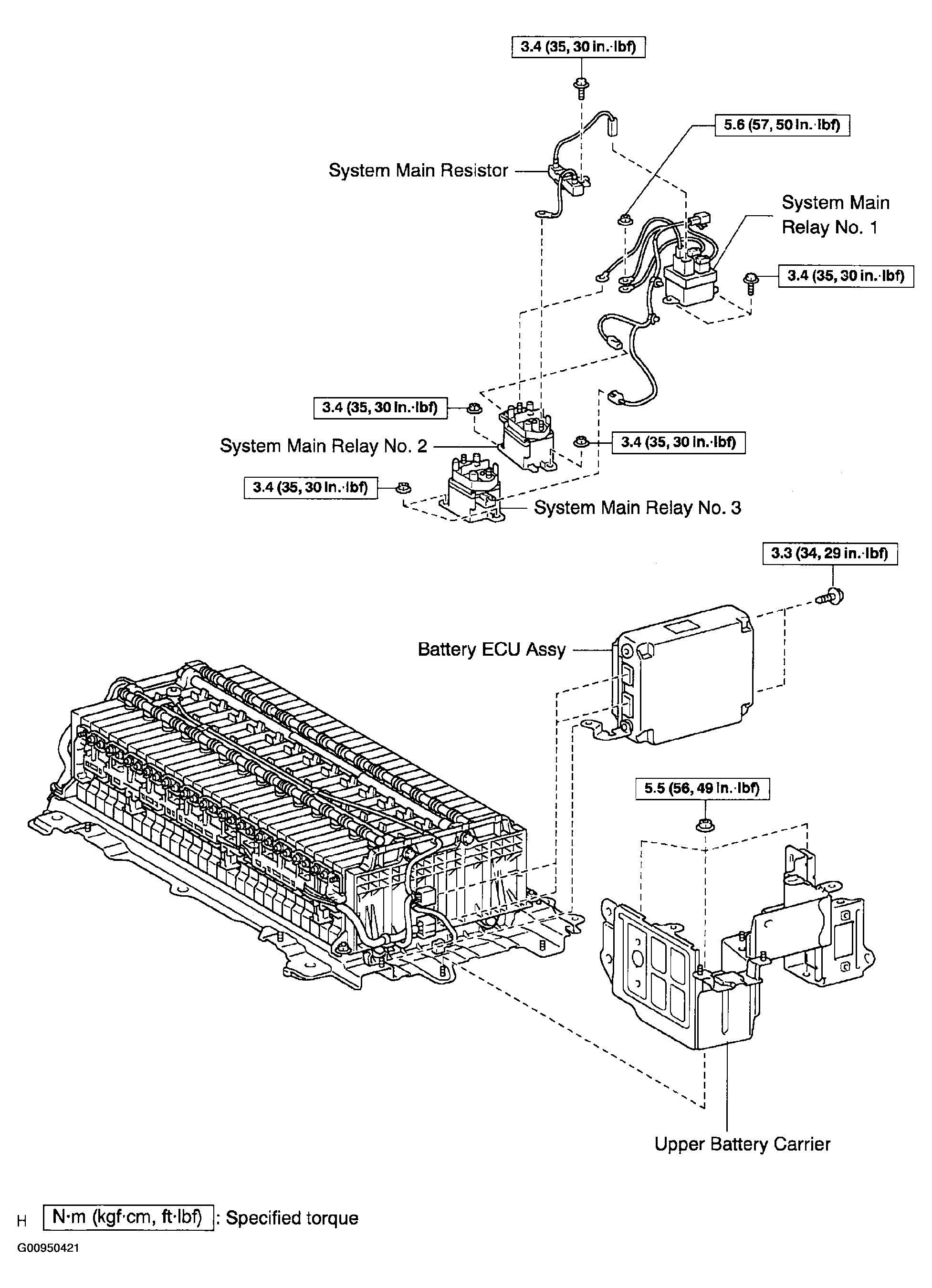

Fig 8: Identifying HV Battery Components (8 Of 9)

Fig 9: Identifying HV Battery Components (9 Of 9)
