Hybrid Vehicle Control Ecu: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR FLOOR BOARD NO. 2 (See  SERVICE PLUG GRIP  )
  2. REMOVE DECK FLOOR BOX REAR (See  SERVICE PLUG GRIP  )
  3. REMOVE REAR FLOOR BOARD NO. 3 (See  SERVICE PLUG GRIP  )
  4. DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL) (See  SERVICE PLUG GRIP  )
  5. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1 (See  INSTRUMENT PANEL  )
  6. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER (See  INSTRUMENT PANEL  )
  7. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER (See  INSTRUMENT PANEL  )
  8. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 3 (See  INSTRUMENT PANEL  )
  9. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 4 (See  INSTRUMENT PANEL  )
  10. REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 2 (See  INSTRUMENT PANEL  )
  11. REMOVE MULTI-DISPLAY ASSY (See  INSTRUMENT PANEL  )
  12. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY (See  INSTRUMENT PANEL  )
  13. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  INSTRUMENT PANEL  )
  14. REMOVE GLOVE COMPARTMENT DOOR (See  INSTRUMENT PANEL  )
  15. REMOVE INSTR PANEL SPEAKER PANEL SUB-ASSY NO. 1 W/CTR SPEAKER (See  INSTRUMENT PANEL  )
  16. REMOVE FRONT PILLAR GARNISH CORNER PIECE RH (See  INSTRUMENT PANEL  )
  17. REMOVE FRONT PILLAR GARNISH CORNER PIECE LH (See  INSTRUMENT PANEL  )
  18. REMOVE FRONT PILLAR GARNISH RH (See  INSTRUMENT PANEL  )
  19. REMOVE FRONT PILLAR GARNISH LH (See  INSTRUMENT PANEL  )
  20. DISCONNECT PASSENGER AIRBAG CONNECTOR (See  INSTRUMENT PANEL  )
  21. REMOVE INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY (See  INSTRUMENT PANEL  )
  22. REMOVE HEATER TO REGISTER DUCT NO. 3 (See  INSTRUMENT PANEL  )
  23. REMOVE ECM (See  REPLACEMENT  )
  24. REMOVE HYBRID VEHICLE CONTROL ECU
    1. Remove the 2 nuts and hybrid vehicle control ECU.

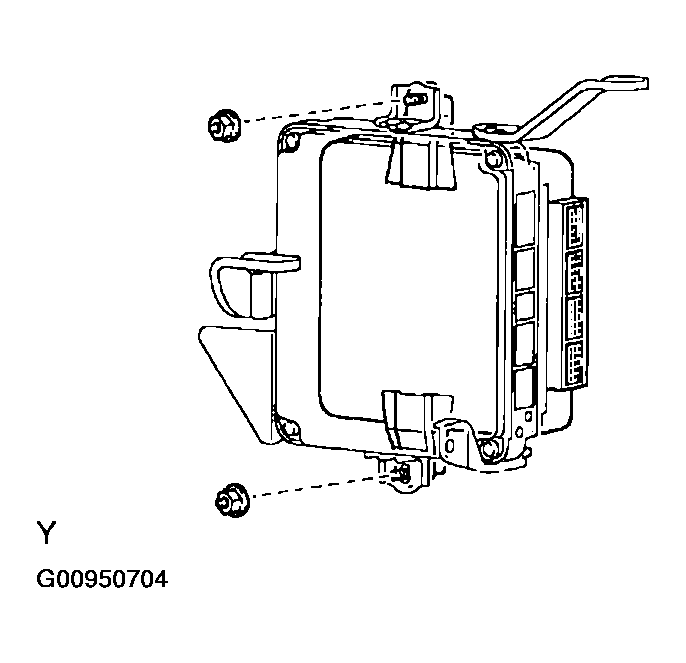

      Fig 1: Removing Hybrid Vehicle Control ECU
      G00950704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL HYBRID VEHICLE CONTROL ECU
    1. Install the hybrid vehicle control ECU with the 2 nuts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

  26. INSTALL ECM (See  REPLACEMENT  )
  27. INSTALL HEATER TO REGISTER DUCT NO. 3
  28. INSTALL INSTRUMENT PANEL SUB-ASSY W/PASSENGER AIRBAG ASSY
  29. CONNECT PASSENGER AIRBAG CONNECTOR
  30. INSTALL FRONT PILLAR GARNISH RH
  31. INSTALL FRONT PILLAR GARNISH LH
  32. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH
  33. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH
  34. INSTALL INSTR PANEL SPEAKER PANEL SUB-ASSY NO. 1 W/CTR SPEAKER
  35. INSTALL GLOVE COMPARTMENT DOOR
  36. INSTALL GLOVE COMPARTMENT DOOR ASSY
  37. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSY
  38. INSTALL MULTI-DISPLAY ASSY
  39. INSTALL INSTRUMENT PANEL REGISTER ASSY NO. 2
  40. INSTALL INSTRUMENT PANEL REGISTER ASSY NO. 4
  41. INSTALL INSTRUMENT PANEL REGISTER ASSY NO. 3
  42. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY UPPER
  43. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSY LOWER
  44. INSTALL INSTRUMENT PANEL REGISTER ASSY NO. 1
  45. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

  46. INSPECT SRS WARNING LIGHT
  47. INSTALL REAR FLOOR BOARD NO. 3
  48. INSTALL DECK FLOOR BOX REAR
  49. INSTALL REAR FLOOR BOARD NO. 2
  50. REGISTER ECU COMMUNICATION ID (W/O SMART KEY) (See  ENGINE IMMOBILIZER SYSTEM  )
  51. REGISTER ECU COMMUNICATION ID (W/ SMART KEY) (See  ENGINE IMMOBILIZER SYSTEM  )
  52. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
