Junction Block ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When working on the high voltage systems, always wear insulating gloves.
  • After removing the service plug grip, do not operate the power switch as it may damage the hybrid vehicle control ECU.
  • Keep the removed service plug in your pocket to prevent other technicians from reconnecting it while you are servicing the vehicle.
  • After removing the service plug grip, do not touch the high voltage connectors and terminals for 5 minutes.
  1. PRECAUTION (See  PRECAUTION  )
  2. REMOVE REAR FLOOR BOARD NO. 2 (See  SERVICE PLUG GRIP  )
  3. REMOVE DECK FLOOR BOX REAR (See  SERVICE PLUG GRIP  )
  4. REMOVE REAR FLOOR BOARD NO. 3 (See  SERVICE PLUG GRIP  )
  5. DISCONNECT BATTERY NEGATIVE TERMINAL (See  SERVICE PLUG GRIP  )
  6. REMOVE SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
  7. REMOVE DECK TRIM COVER REAR (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  8. REMOVE TONNEAU COVER ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  9. REMOVE REAR SEAT CUSHION ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  10. REMOVE REAR FLOOR BOARD NO. 1 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  11. REMOVE REAR SIDE SEAT BACK FRAME LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  12. REMOVE REAR SIDE SEAT BACK FRAME RH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  13. REMOVE REAR FLOOR BOARD NO. 4 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  14. REMOVE DECK FLOOR BOX LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  15. REMOVE DECK TRIM SIDE PANEL ASSY LH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  16. REMOVE DECK TRIM SIDE PANEL ASSY RH (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  17. REMOVE BATTERY CARRIER BRACKET (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  18. REMOVE QUARTER VENT DUCT INNER NO. 2 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  19. REMOVE BATTERY BRACKET REINFORCEMENT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  20. REMOVE QUARTER VENT DUCT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  21. REMOVE BATTERY CARRIER PANEL NO. 6 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  22. REMOVE JUNCTION TERMINAL (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
    NOTE: Wear insulating gloves.
  23. REMOVE FRAME WIRE (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
    NOTE: Wear insulating gloves.
  24. REMOVE HV BATTERY ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  25. REMOVE BATTERY COVER SUB-ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  26. REMOVE WIRING HARNESS PROTECTOR COVER NO. 2
    NOTE: Wear insulating gloves.

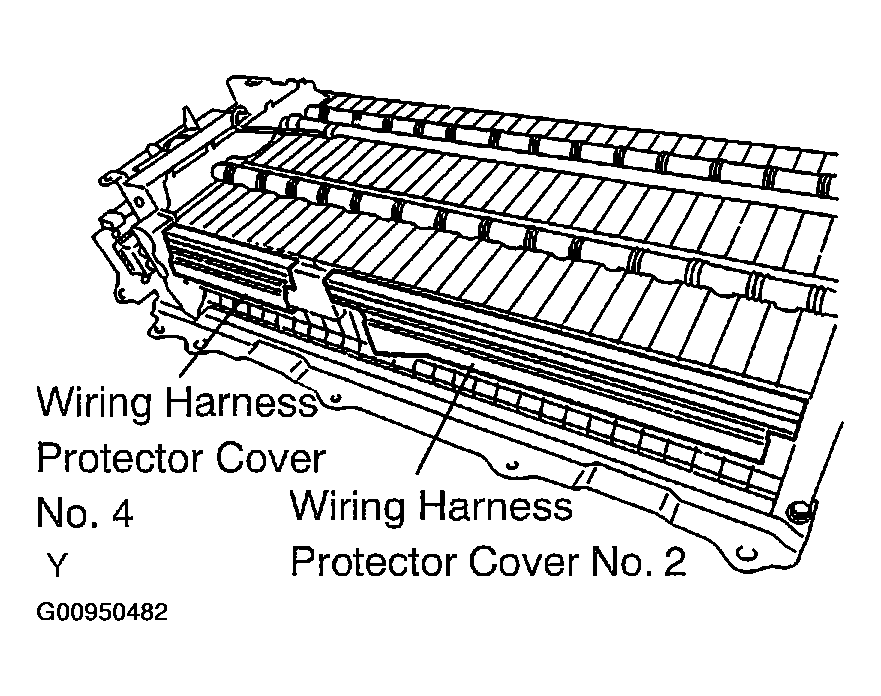

    Fig 1: Removing Wiring Harness Protector Cover No. 2
    G00950482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE WIRING HARNESS PROTECTOR COVER NO. 4
    NOTE: Wear insulating gloves.
  28. REMOVE JUNCTION BLOCK ASSY
    NOTE: Wear insulating gloves.
    1. Remove the 26 nuts and junction block assembly.
      Fig 2: Removing Junction Block Assy
      G00950483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL JUNCTION BLOCK ASSY
    NOTE: Wear insulating gloves.
    1. Install the junction block assembly with 26 new nuts.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

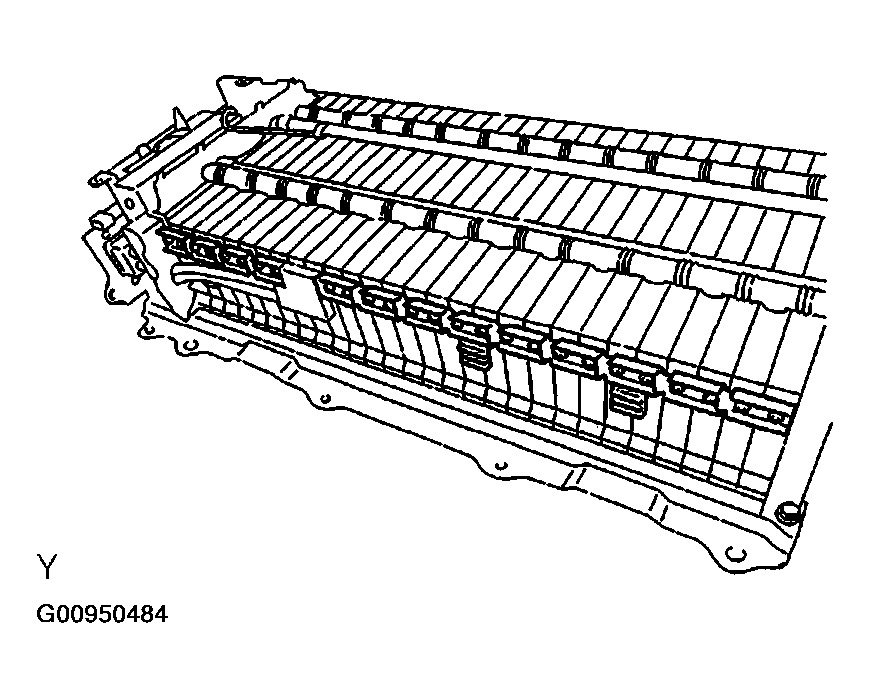

      Fig 3: Installing Junction Block Assy
      G00950484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL WIRING HARNESS PROTECTOR COVER NO. 2
    NOTE: Wear insulating gloves.
    Fig 4: Installing Wiring Harness Protector Cover No. 2
    G00950485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL WIRING HARNESS PROTECTOR COVER NO. 4
    NOTE: Wear insulating gloves.
  32. INSTALL BATTERY COVER SUB-ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  33. INSTALL HV BATTERY ASSY (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  34. INSTALL FRAME WIRE (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
    NOTE: Wear insulating gloves.
  35. INSTALL JUNCTION TERMINAL (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
    NOTE: Wear insulating gloves.
  36. INSTALL BATTERY CARRIER PANEL NO. 6 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  37. INSTALL QUARTER VENT DUCT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  38. INSTALL BATTERY BRACKET REINFORCEMENT (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  39. INSTALL QUARTER VENT DUCT INNER NO. 2 (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  40. INSTALL BATTERY CARRIER BRACKET (See  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
  41. INSTALL DECK TRIM SIDE PANEL ASSY RH
  42. INSTALL DECK TRIM SIDE PANEL ASSY LH
  43. INSTALL DECK FLOOR BOX LH
  44. INSTALL REAR FLOOR BOARD NO. 4
  45. INSTALL REAR SIDE SEAT BACK FRAME RH
  46. INSTALL REAR SIDE SEAT BACK FRAME LH
  47. INSTALL REAR FLOOR BOARD NO. 1
  48. INSTALL REAR SEAT CUSHION ASSY
  49. INSTALL TONNEAU COVER ASSY
  50. INSTALL DECK TRIM COVER REAR
  51. INSTALL SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
    NOTE: Wear insulating gloves.
  52. CONNECT BATTERY NEGATIVE TERMINAL

    Torque: 6.0 N.m (61 kgf.cm, 53 in.lbf)

  53. INSTALL REAR FLOOR BOARD NO. 3
  54. INSTALL DECK FLOOR BOX REAR
  55. INSTALL REAR FLOOR BOARD NO. 2
  56. POWER WINDOW CONTROL SYSTEM INITIALIZE (See  INITIALIZATION  )
