Navigation Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE AIR CONDITIONER CONTROL ASSEMBLY (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See REPLACEMENT )

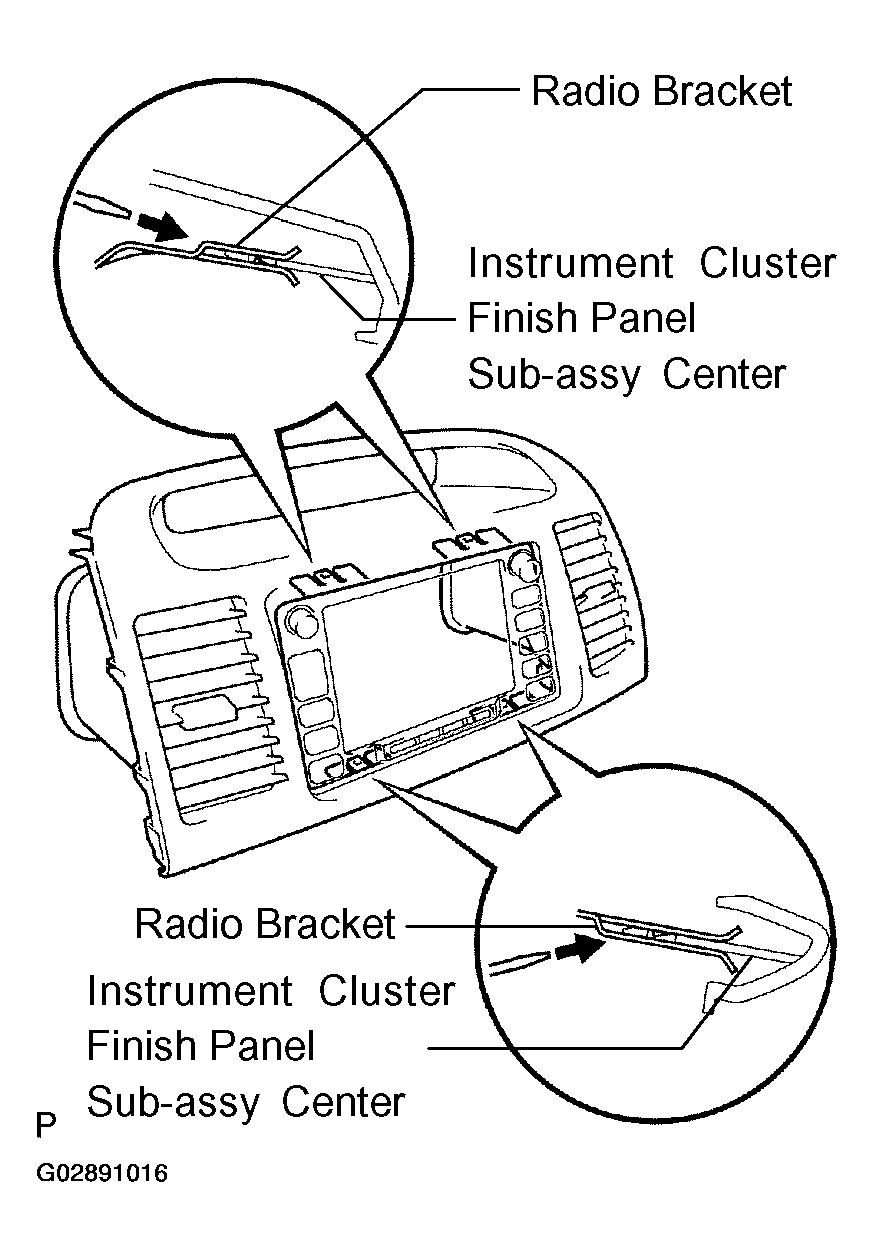

REMOVE NAVIGATION RECEIVER ASSY
1. Insert a screwdriver at indicated point and remove the navigation receiver assy from instrument cluster finish panel sub-assy.

  Fig 1: Removing Navigation Receiver Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

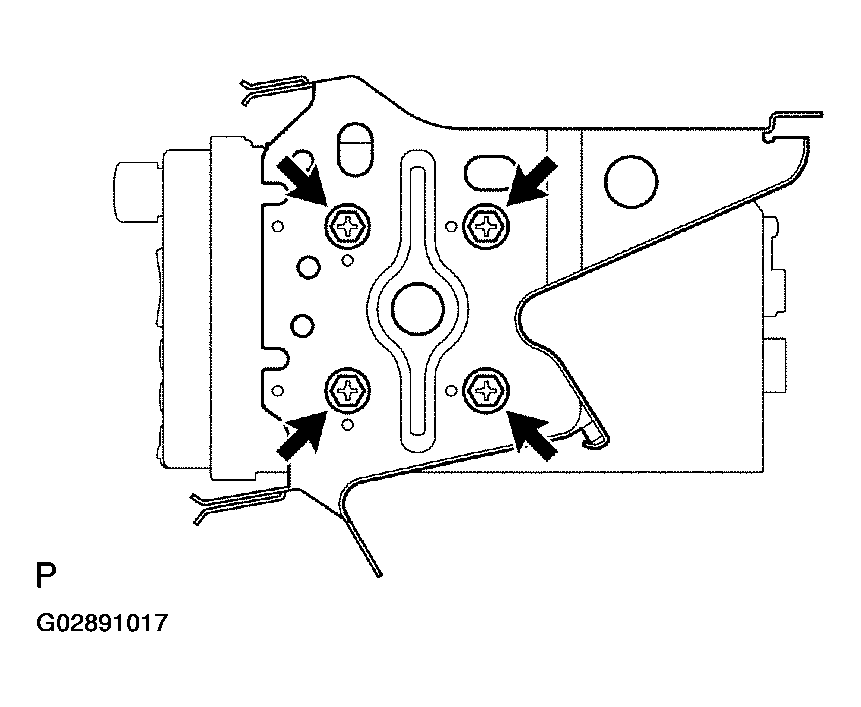

REMOVE RADIO RECEIVER BRACKET NO. 1
1. Remove the 4 screws and radio receiver bracket No.1.

  Fig 2: Removing Radio Receiver Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

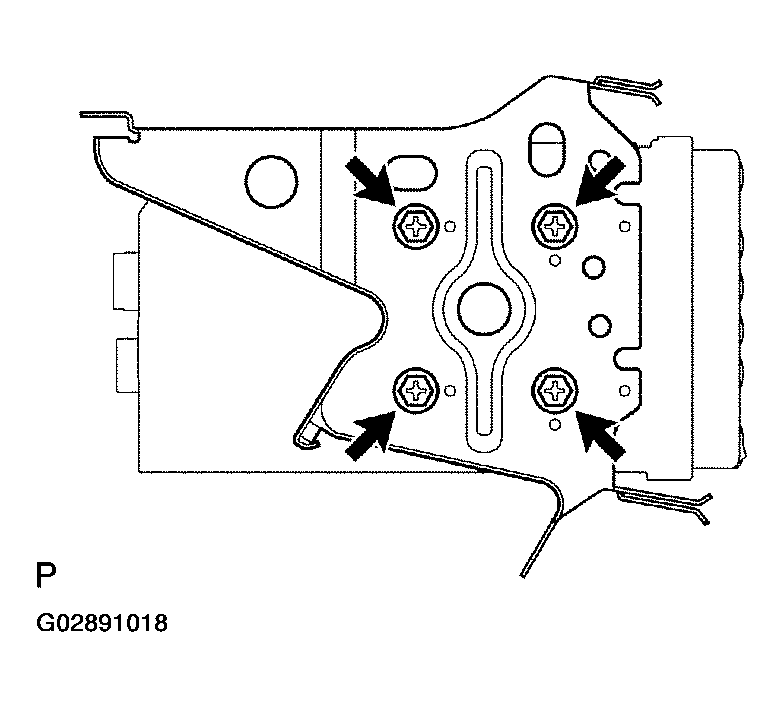

REMOVE RADIO RECEIVER BRACKET NO. 1
1. Remove the 4 screws and radio receiver bracket No.1.

  Fig 3: Removing Radio Receiver Bracket No.1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
