Engine Coolant Temp Sensor: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

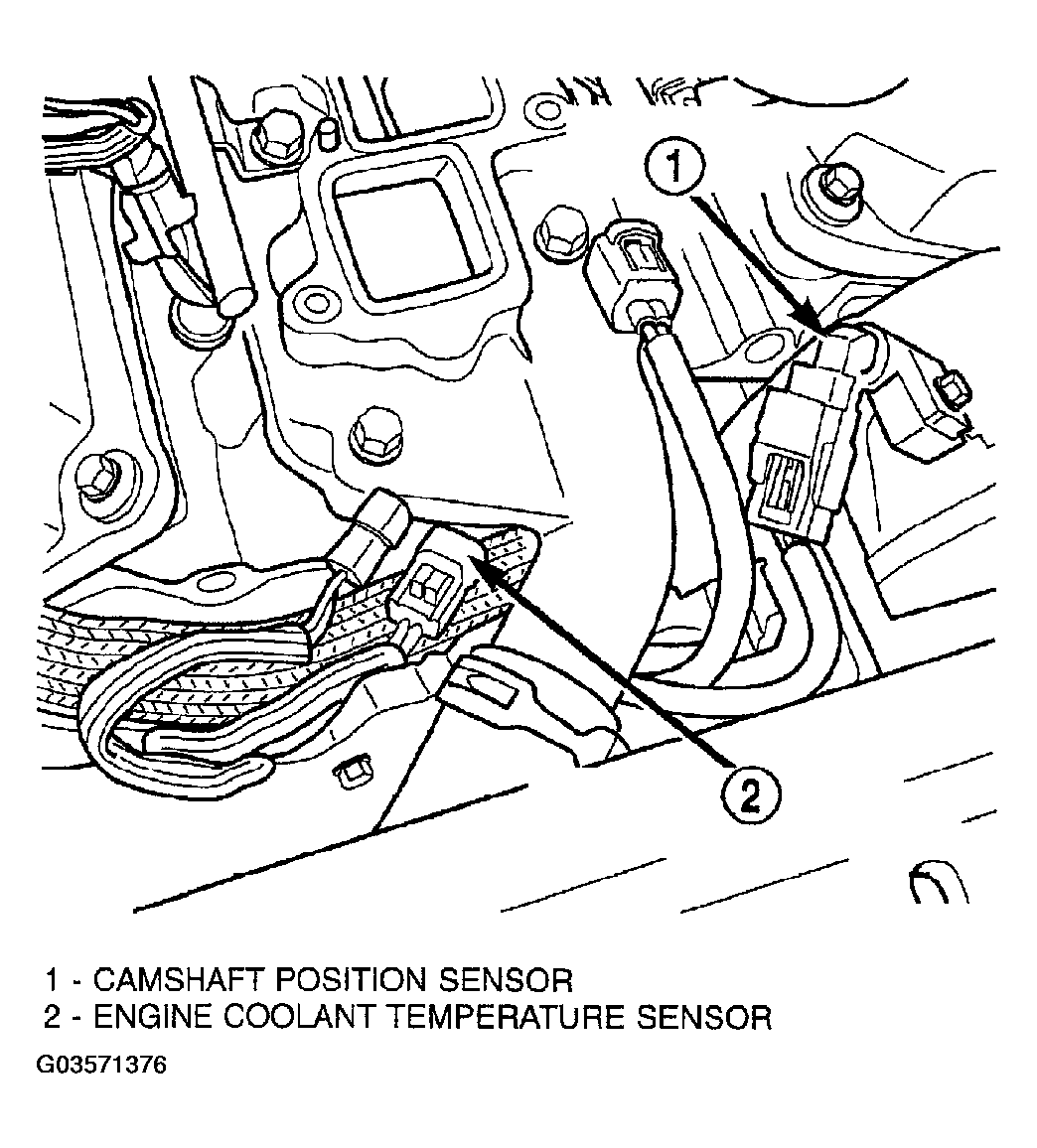

- Install engine coolant temperature sensor (Figure ). Tighten sensor to 7 N.m (60 in. lbs.).
- Connect electrical connector to sensor.
- Fill cooling system. (Refer to STANDARD PROCEDURE - COOLING SYSTEM FILLING )
