Body Control Module: Removal

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the lower instrument panel silencer.
  3. Remove the knee blocker airbag (Refer to AIR BAG RESTRAINT SYSTEMS ).
  4. Unclip the 72-way bulkhead connector from the Body Control Module (BCM) mounting assembly.
  5. Move bulkhead wiring aside.
  6. Disconnect the five wire connectors from the BCM.

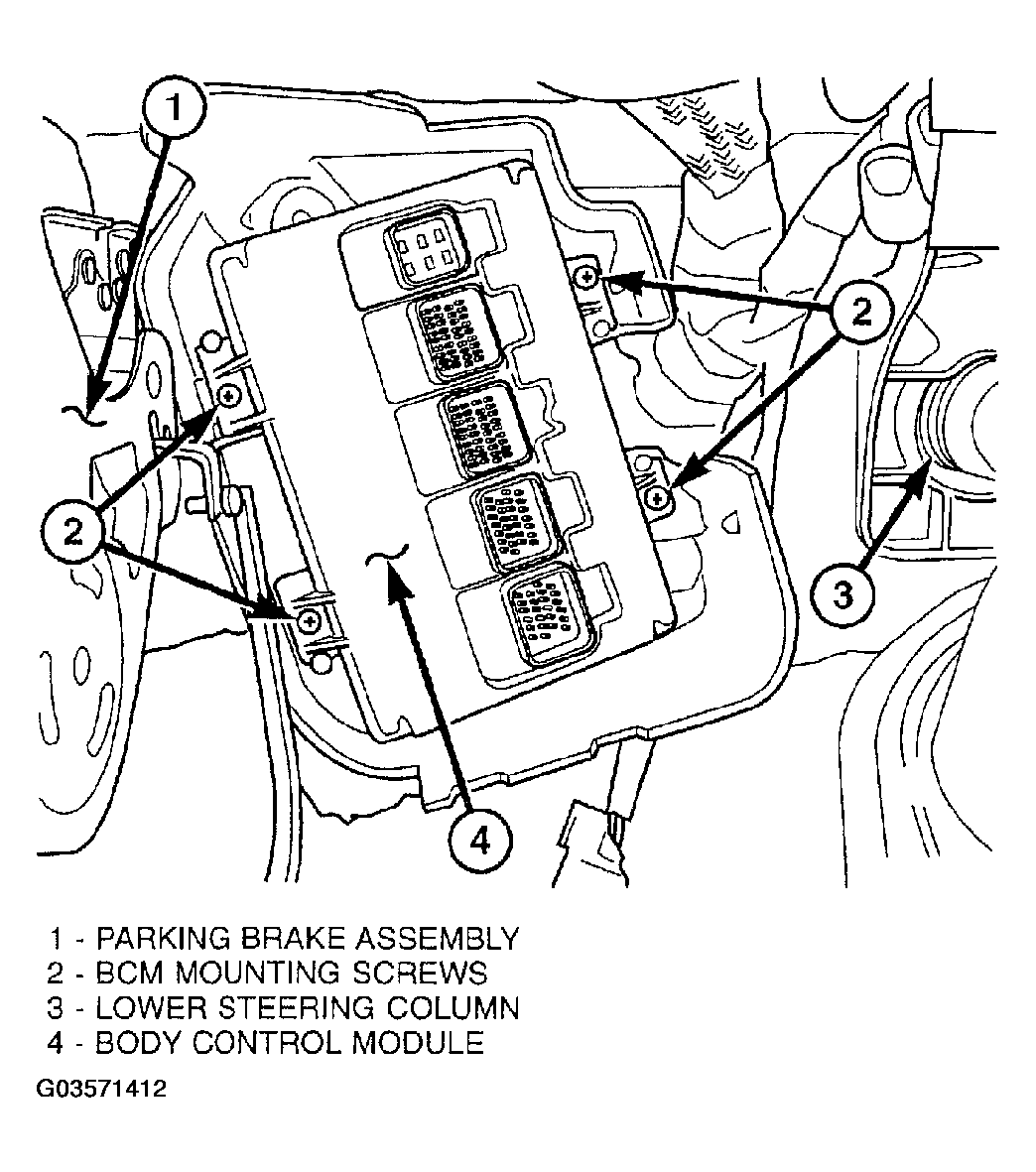

  7. Remove the four screws holding the BCM to the bulkhead (Figure).
  8. Remove the BCM from the mounting bracket.
