Controller Antilock Brake: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Connect 47-way wiring connector at CAB (Fig 1).
Align CAB solenoids and pump/motor wiring connector with HCU valves and connector passage (Fig 2). Slide CAB onto HCU.

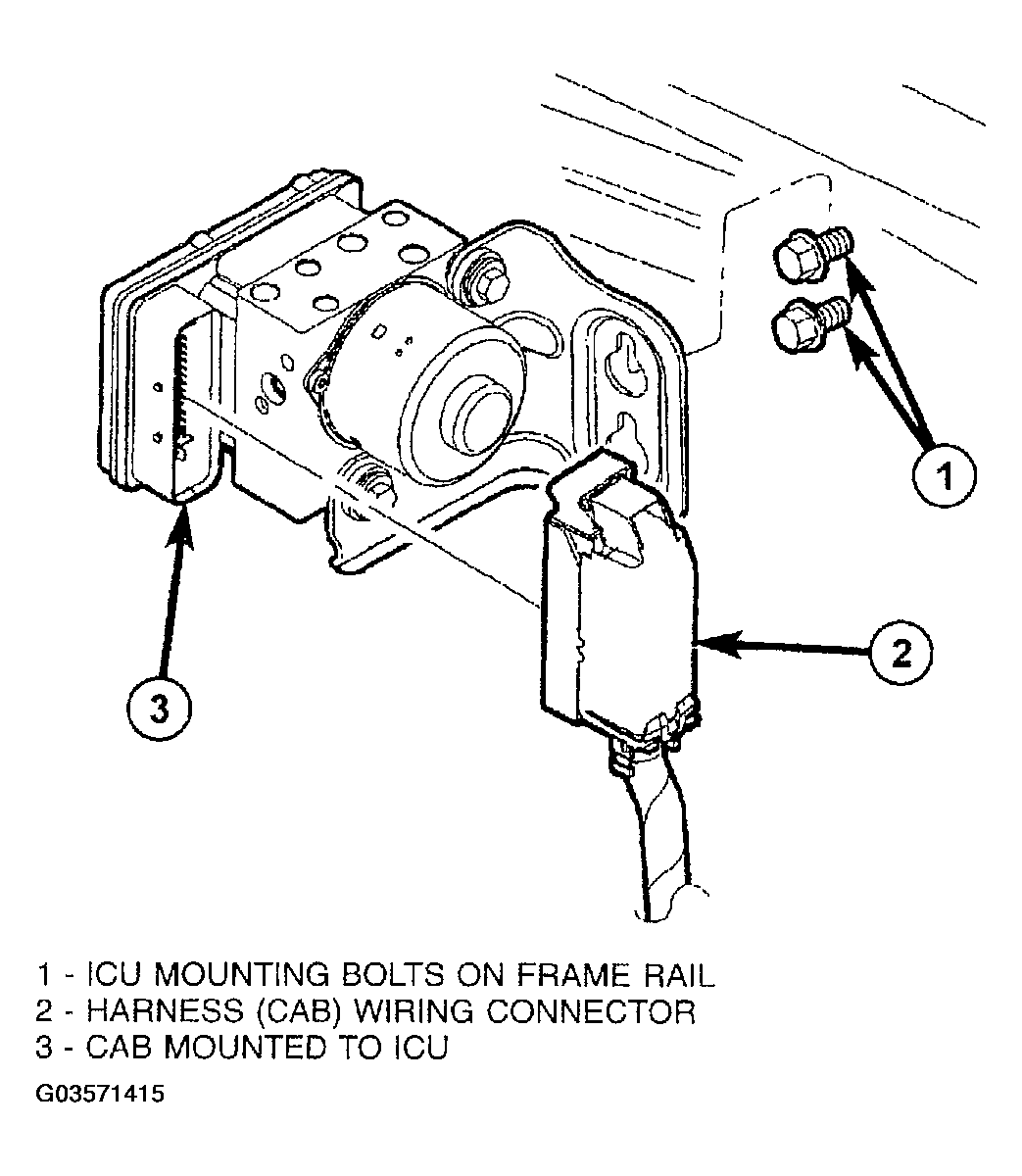

Fig 1: Connecting 47-Way Wiring Connector At CAB
Courtesy of DAIMLERCHRYSLER CORP.

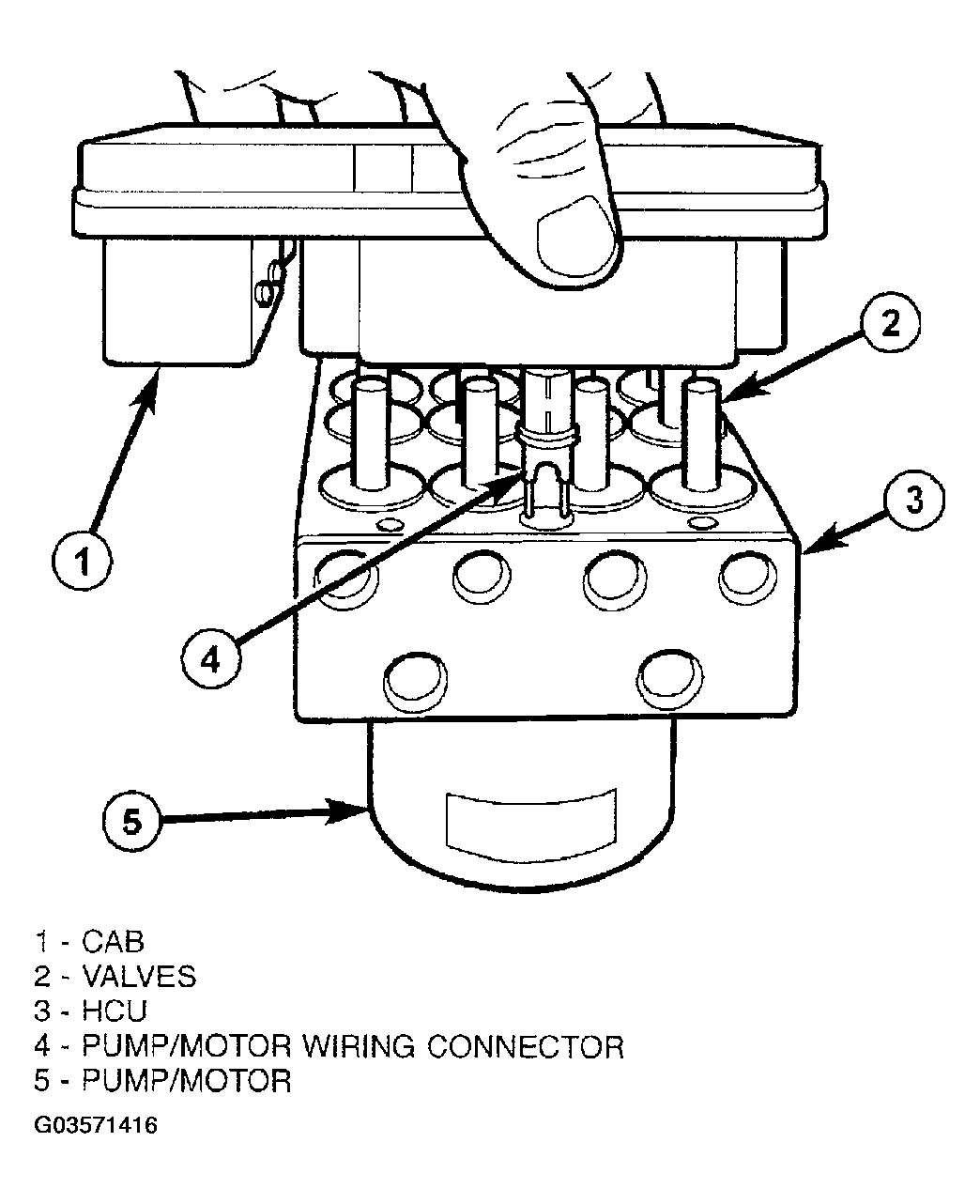

Fig 2: Connecting CAB To HCU
Courtesy of DAIMLERCHRYSLER CORP.

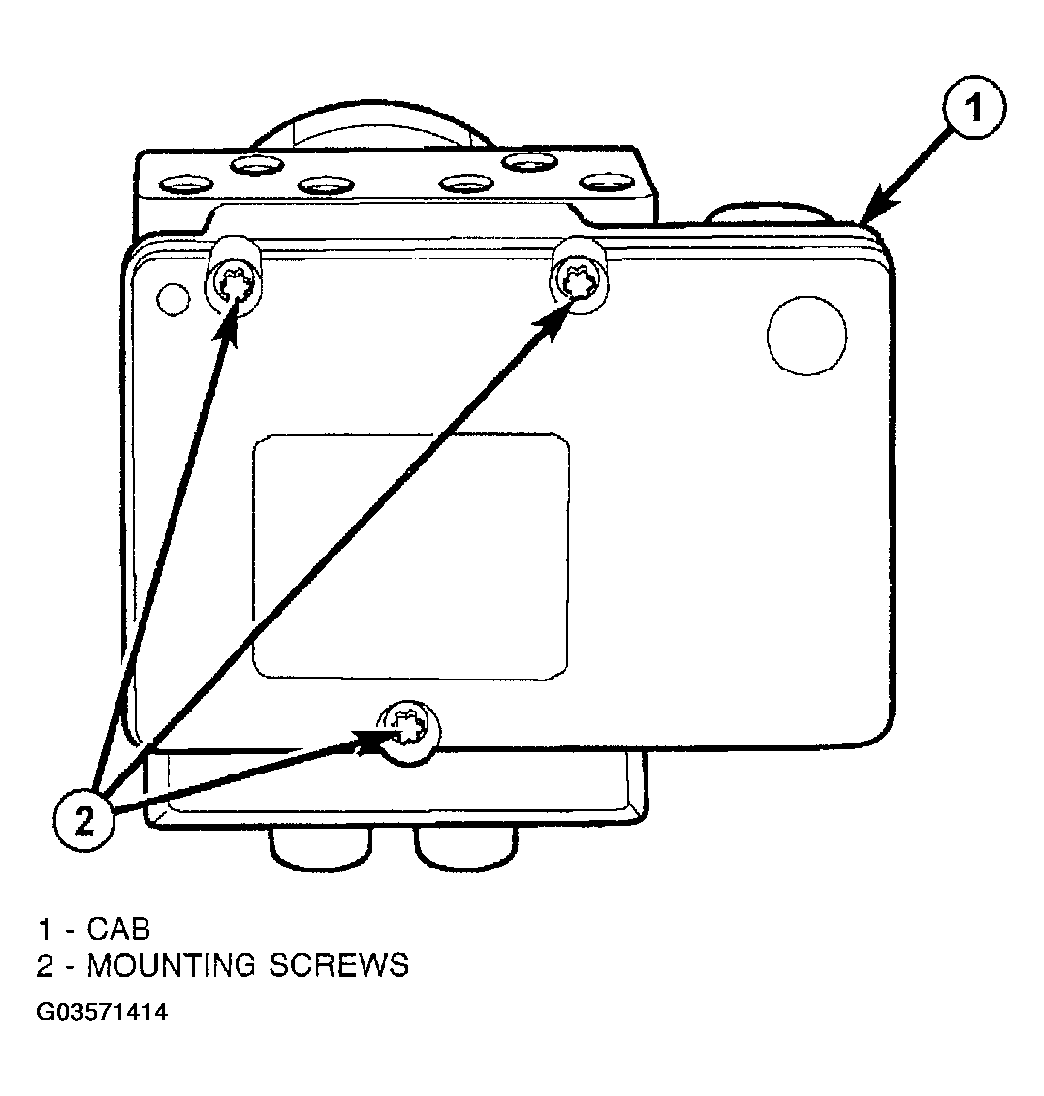

Install 3 screws mounting CAB to HCU (Figure). Tighten CAB mounting screws to 2 N.m (17 in. lbs.) torque.
Lower vehicle.
Connect negative battery cable to battery post.
Hook up DRBIII® to initialize CAB. Check and clear any faults.
