Spark Plug: Removal
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
Always remove the ignition coil assembly by grasping at the spark plug boot, turning the assembly 1/2 turn and pulling straight back in a steady motion.
- Disconnect the negative battery cable.
- Front Plugs - Remove the intake manifold, (Refer to INTAKE MANIFOLD ).

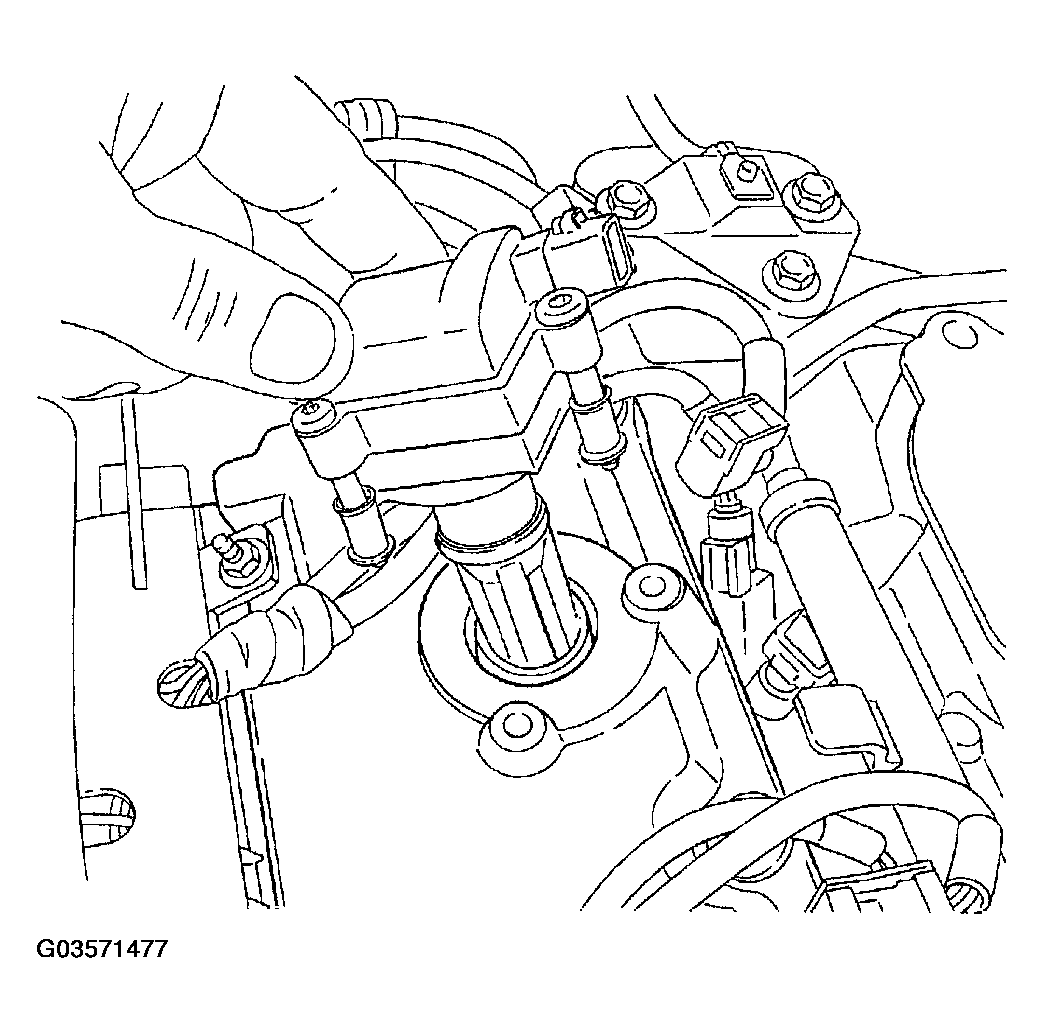

- Remove the ignitions coil (Fig 1).
- Prior to removing the ignition coils, spray compressed air around the coil area and spark plug.
On 3.5L engines, it is necessary to loosen the screws by alternating back and forth. Do not lose the spacers under the coil when loosening the screws.
- Remove spark plug.
