Link Rod: Operation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

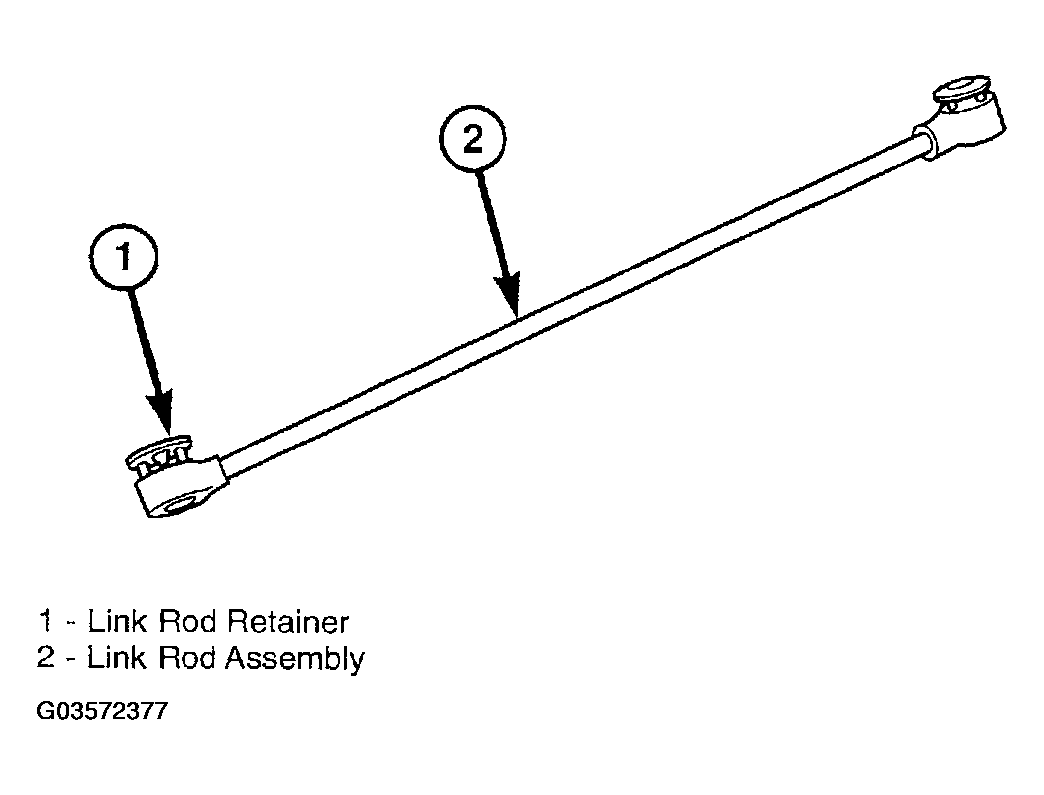

One end of the link rod assembly is attached to the liftgate, the other attached to the lift rack of the drive unit. When the lift rack is driven by the liftgate motor assembly the liftgate is moved to the open or closed position.
Courtesy of DAIMLERCHRYSLER CORP.
