Section 454 (Cruise Control Systems): Servo: Installation
WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

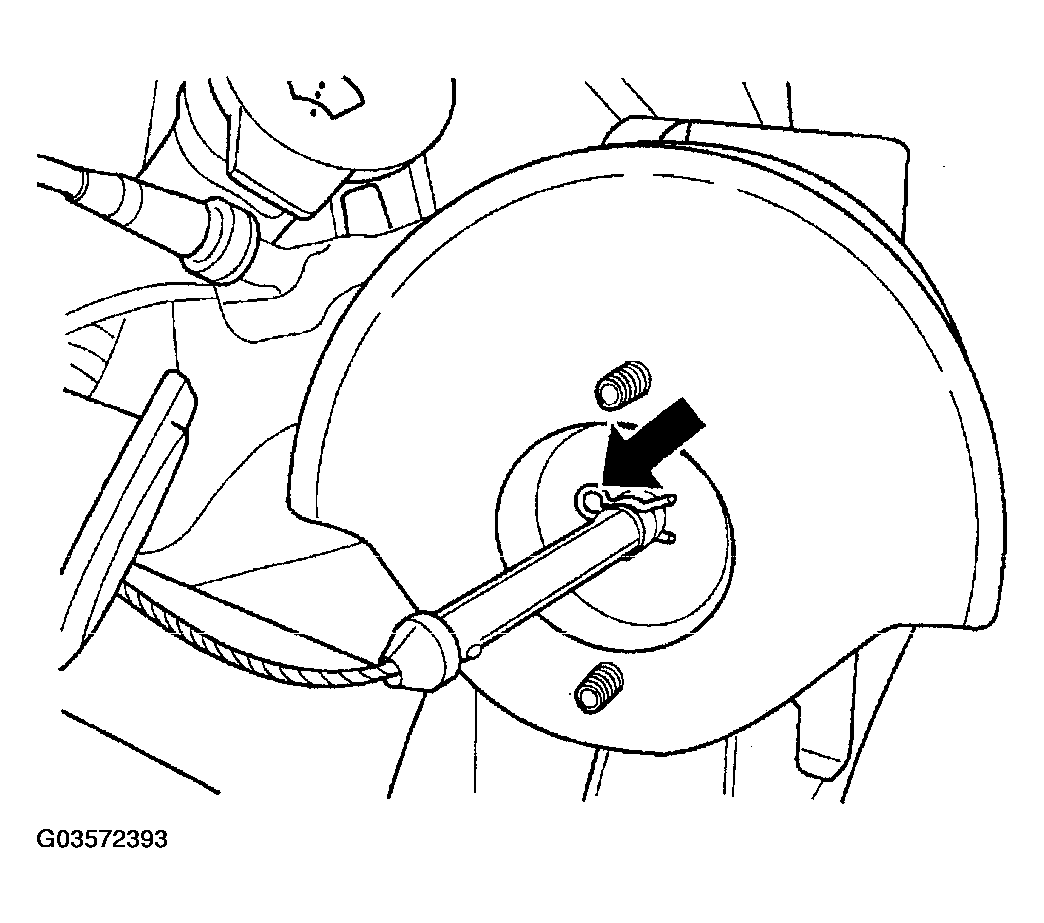

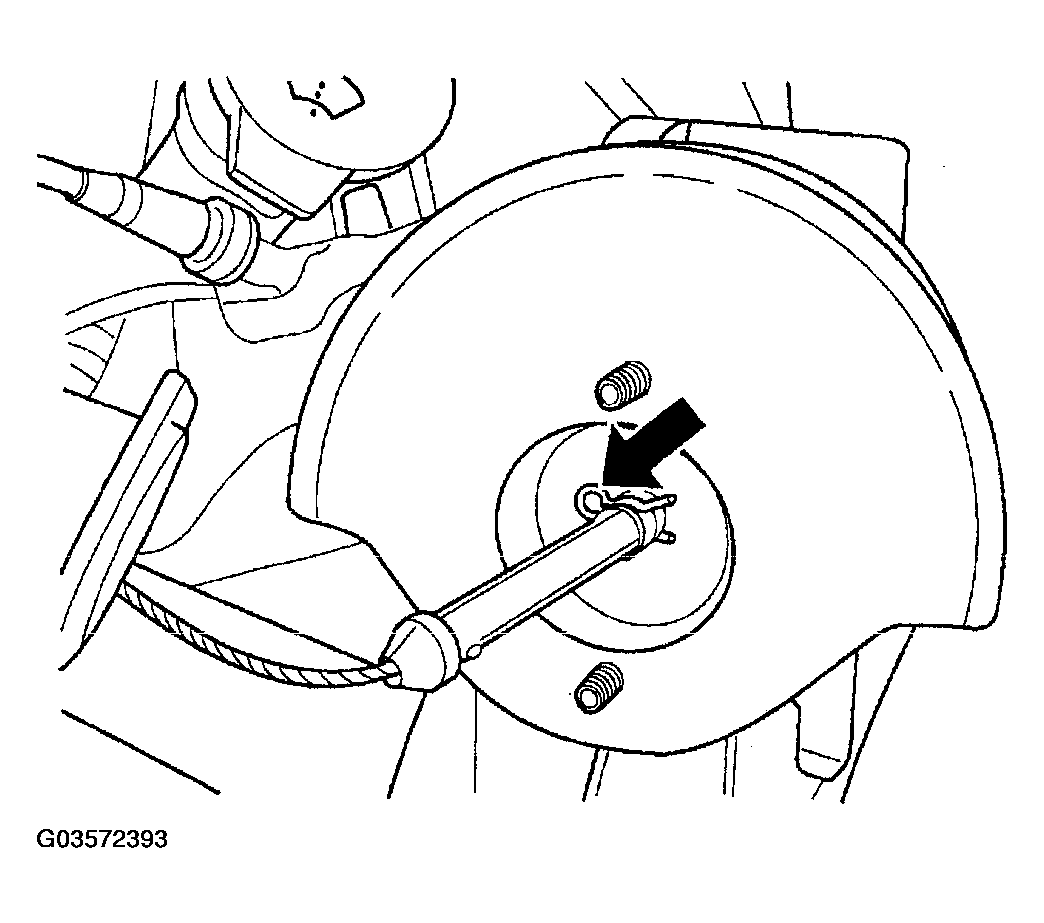

- Install clip attaching cable to servo (Figure ).

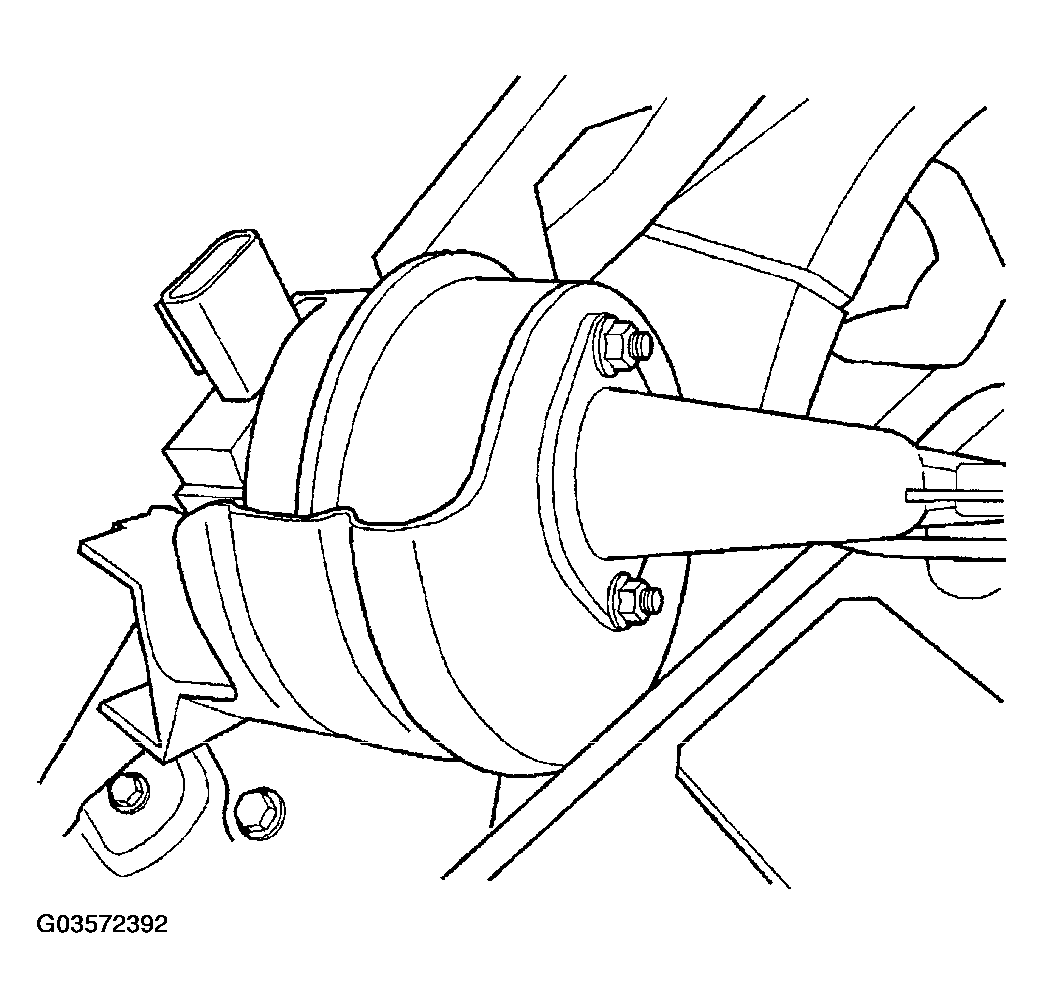

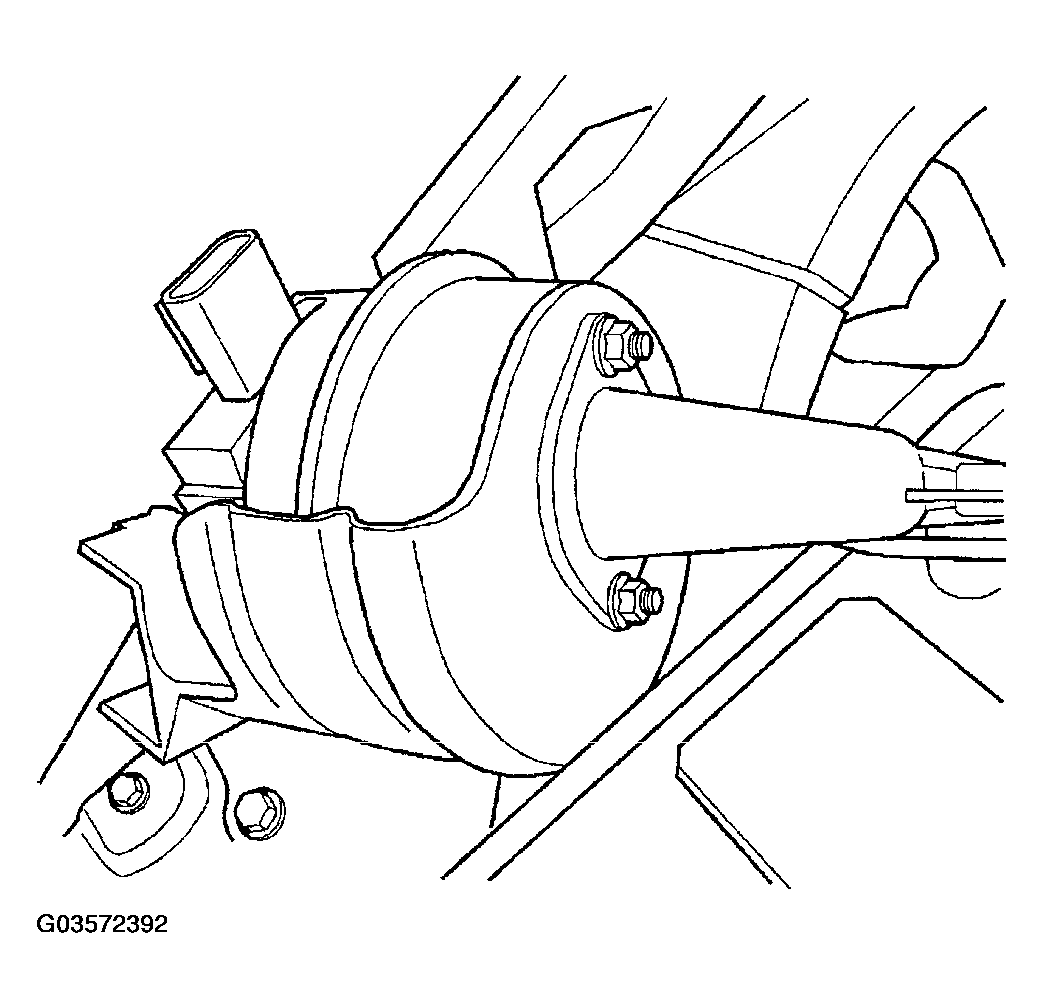

- Install two nuts attaching mounting bracket and speed control cable to servo (Figure ). Refer to TORQUE SPECIFICATIONS for torque specifications.
- Connect electrical connectors and vacuum hose.

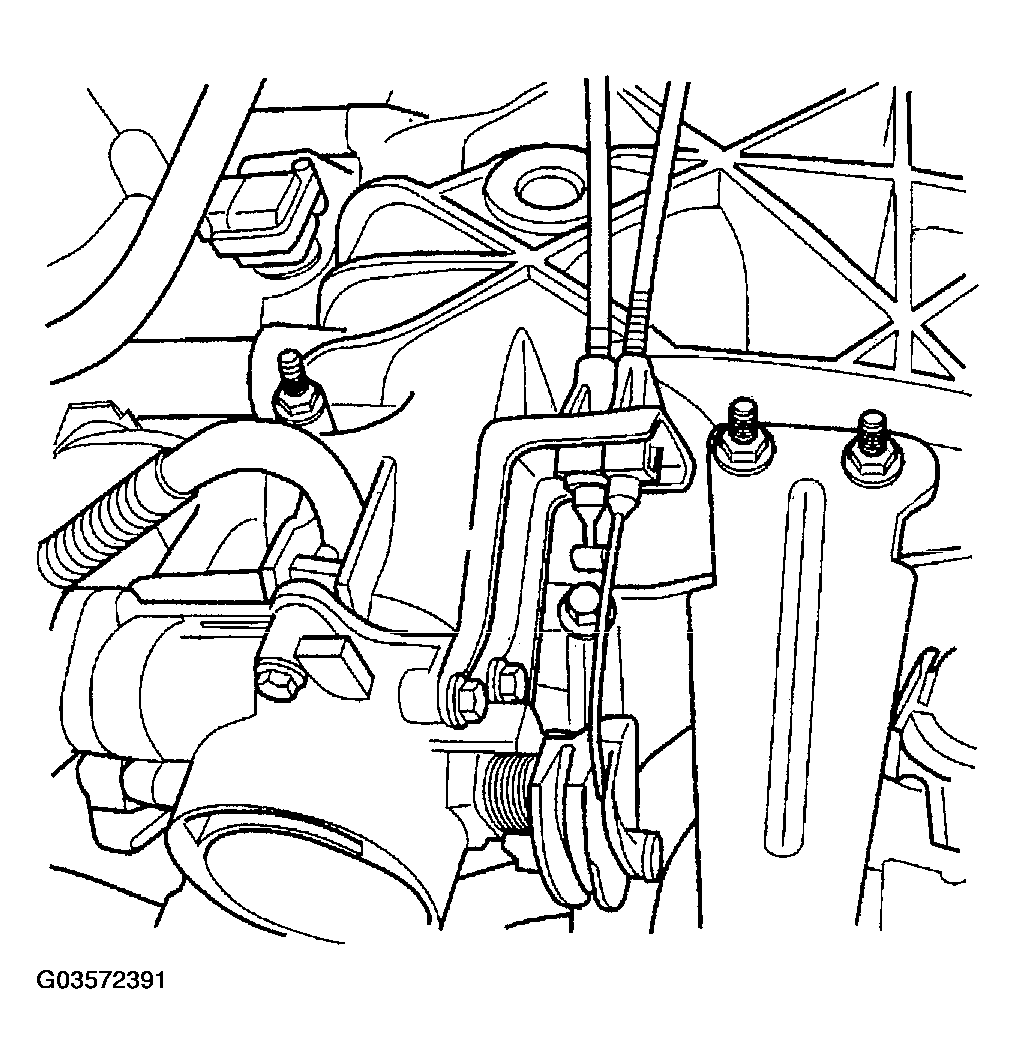

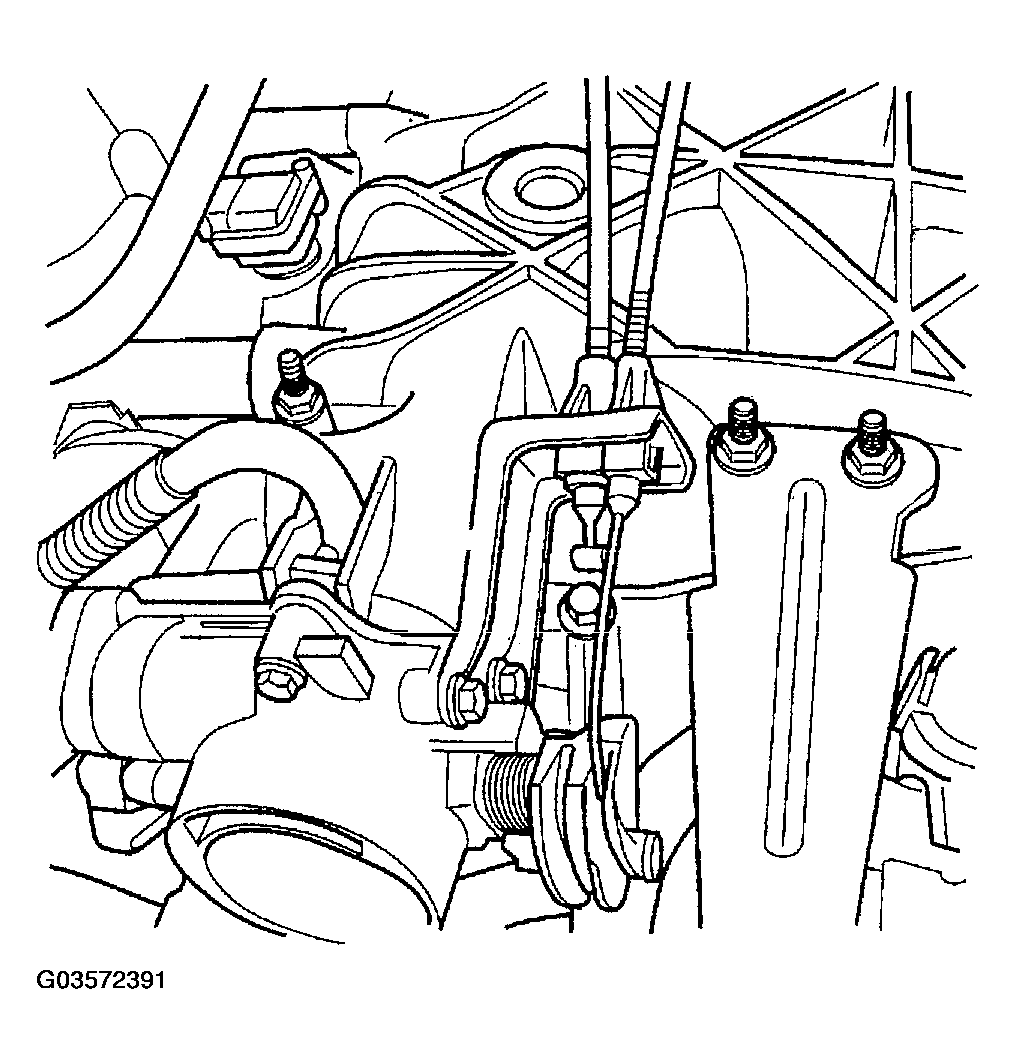

- Install speed control cable to throttle cam by-sliding clasp into hole (Figure ).
- Install the servo bracket bolt. Refer to TORQUE SPECIFICATIONS for torque specifications.
- Connect the negative battery cable.
