Power Outlet: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install base mount ring.
  2. Connect the base wires.
  3. Firmly snap base into position inside of instrument panel.
  4. Connect the battery negative cable.

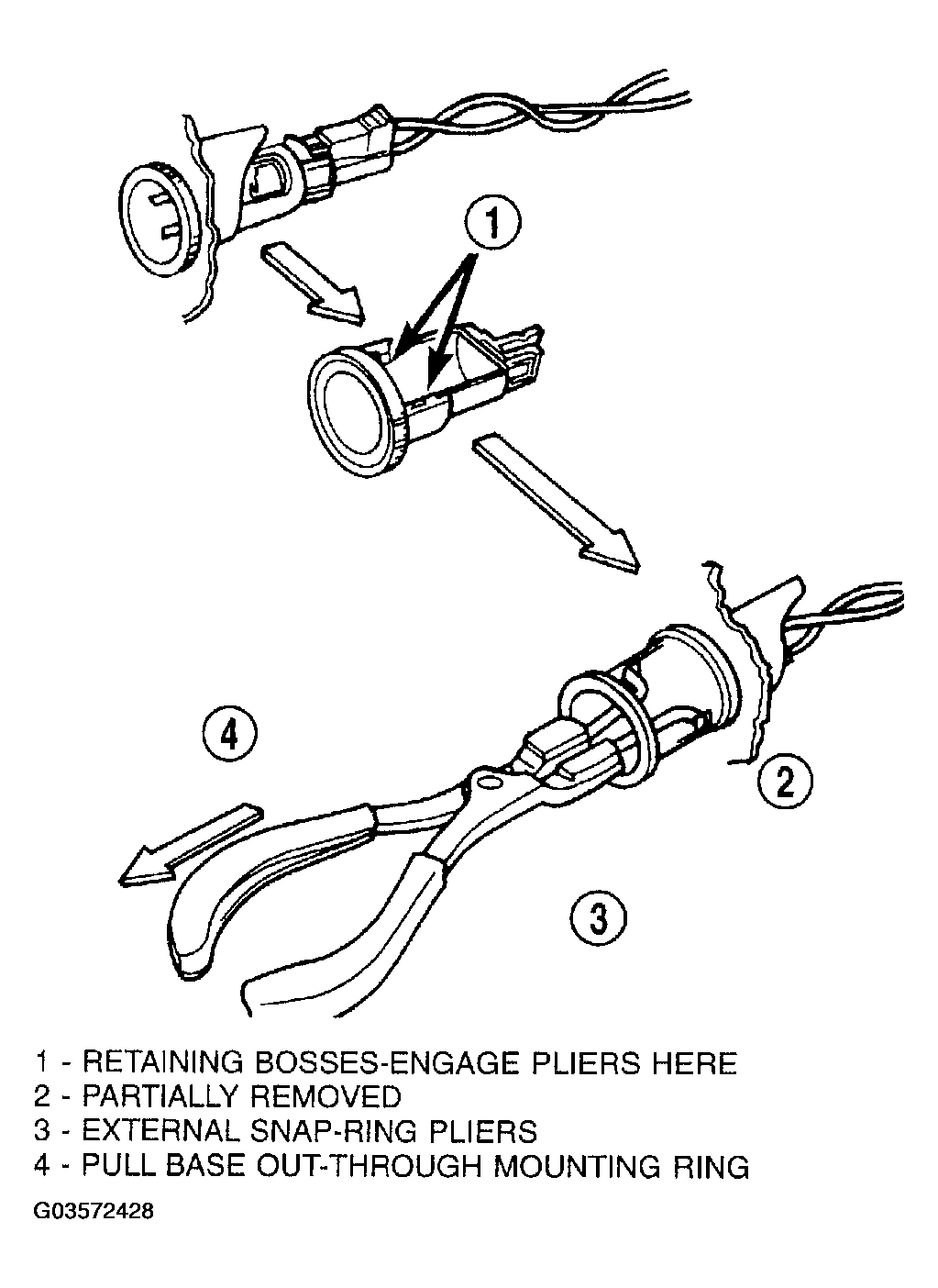

    Fig 1: Identifying Removing Cigar Lighter / Power Outlet Base
    G03572428Courtesy of DAIMLERCHRYSLER CORP.

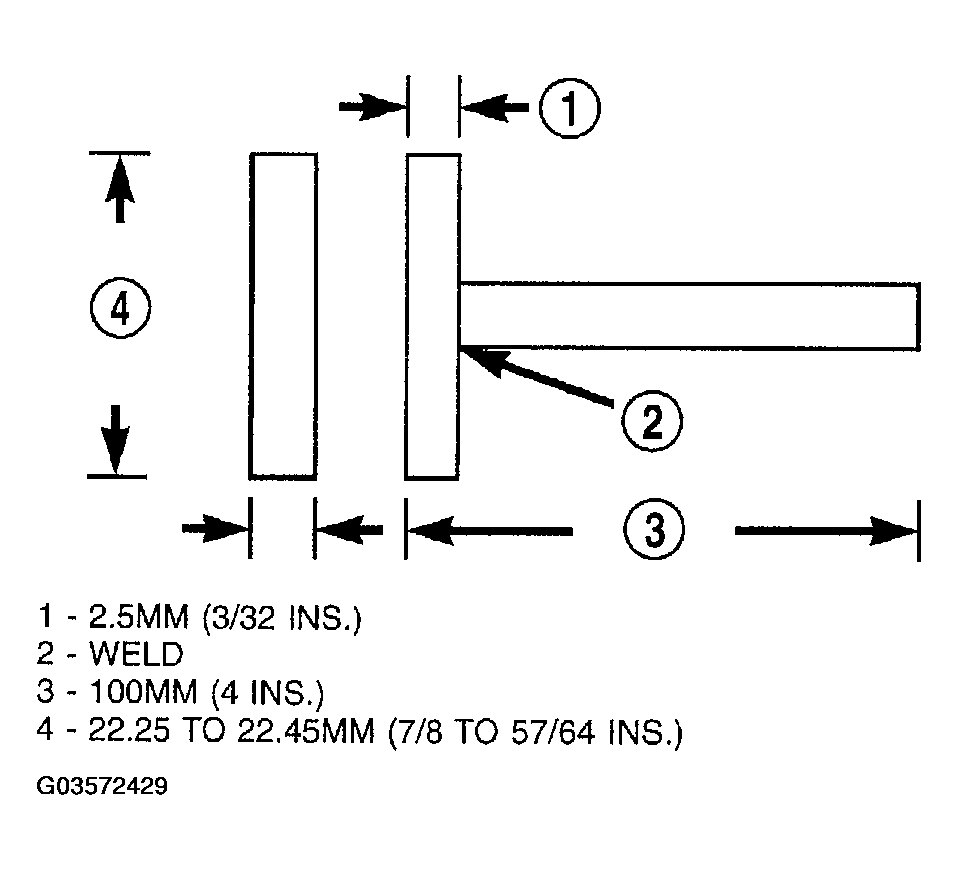

    Fig 2: Identifying Removing Tool For Cigar Lighter / Power Outlet
    G03572429Courtesy of DAIMLERCHRYSLER CORP.
