Fog Lamp Unit: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Parts are shown for the LH side only. The LH and RH side are symmetrical.

REMOVE FRONT FENDER LINER LH (SEE FRONT BUMPER )
REMOVE FRONT FENDER LINER RH
REMOVE FRONT BUMPER COVER (SEE FRONT BUMPER )
REMOVE RADIATOR GRILLE LOWER LH (SEE FRONT BUMPER )
REMOVE FOG LAMP UNIT
1. Disengage the 3 claws and push the fog lamp unit towards the front of the vehicle.

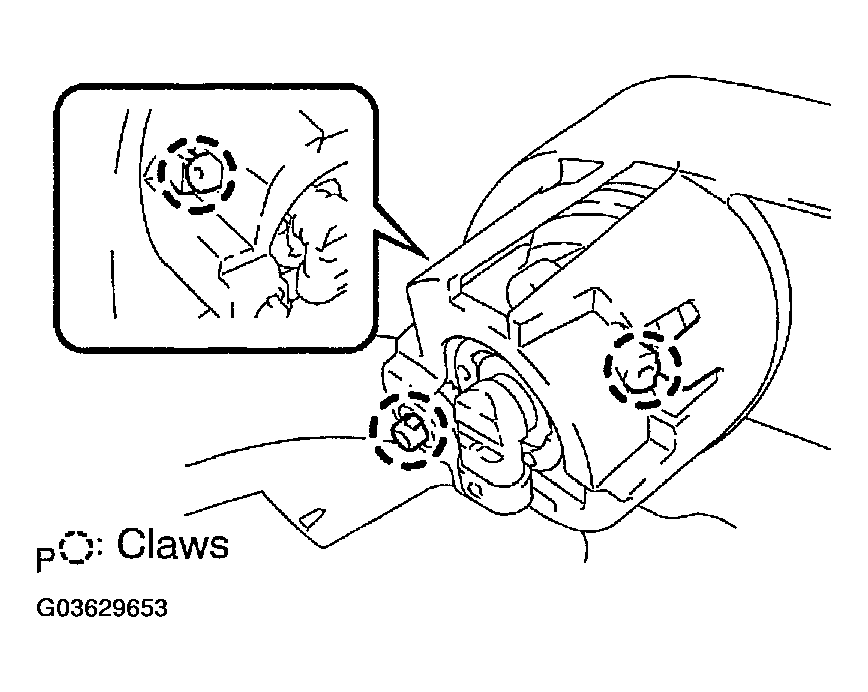

  Fig 1: Disengaging Claws & Pushing Fog Lamp Unit Towards Front Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the fog lamp bulb and the fog lamp unit.
CHECK FOG LIGHT AIM (SEE ADJUSTMENT )
