Section 507 (Lighting System): Headlight: Components

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Parts are shown for the LH side only. The LH and RH side are symmetrical.

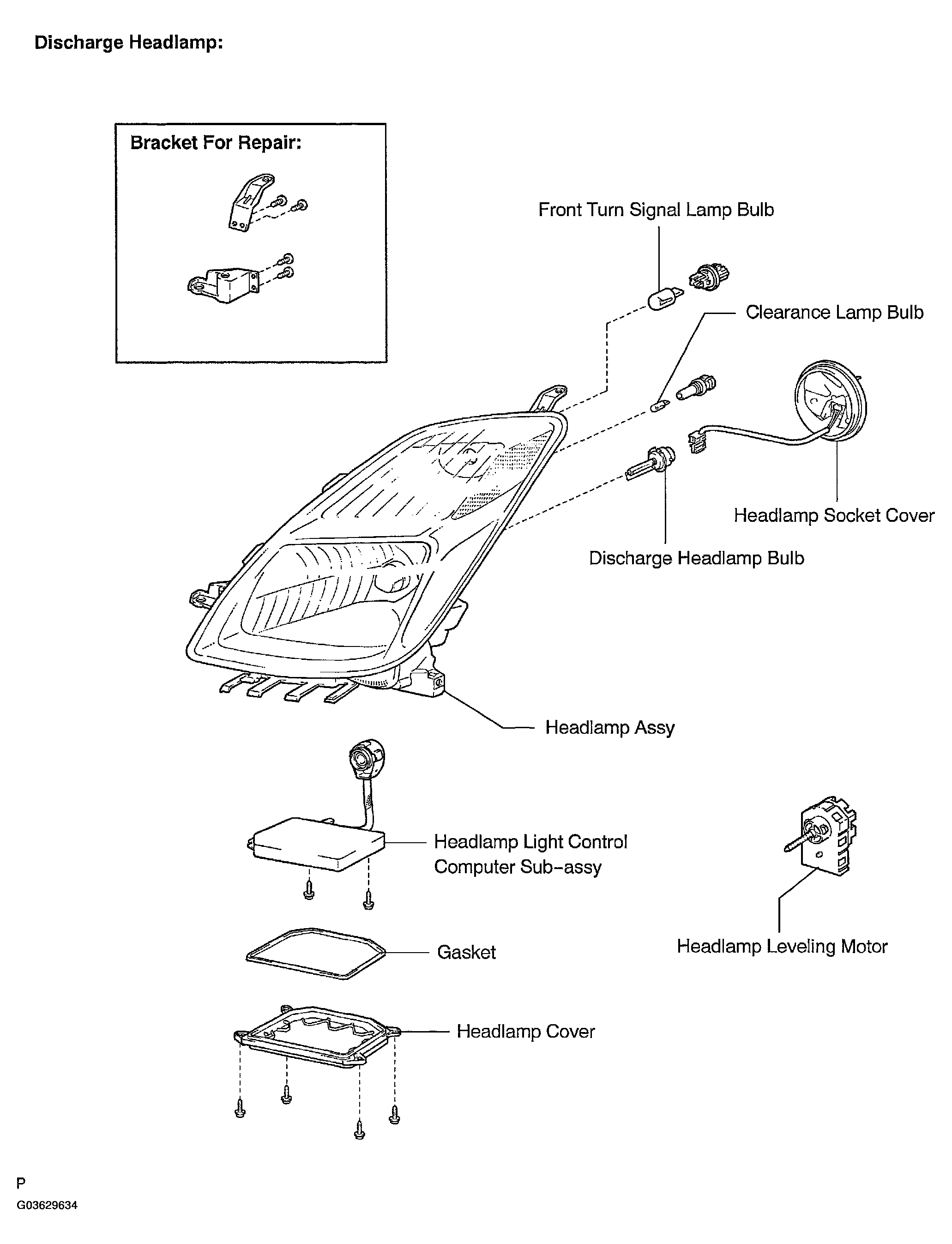

Fig 1: Identifying Headlight Components (1 of 2)
G03629634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

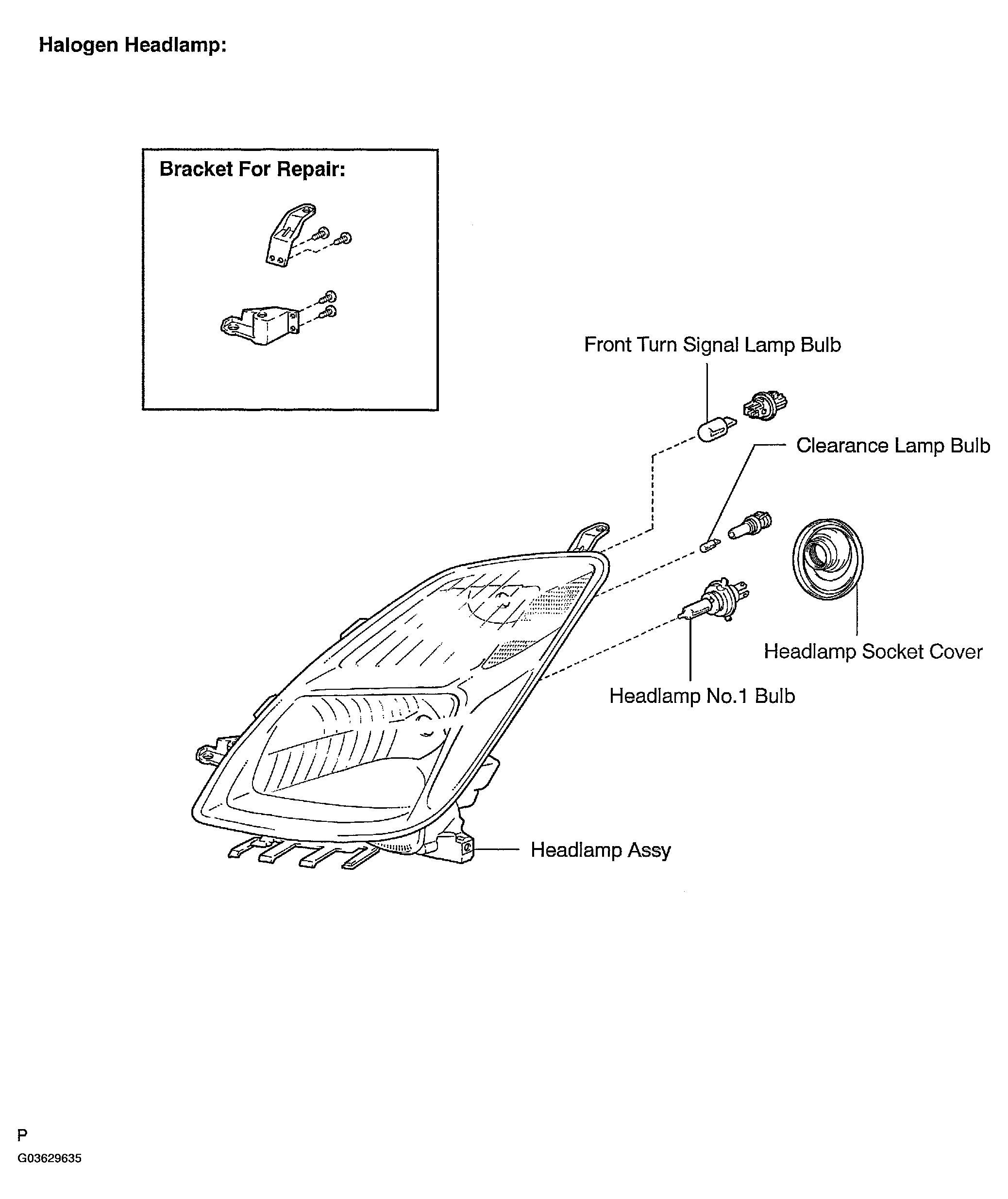

Fig 2: Identifying Headlight Components (2 of 2)
G03629635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
