Height Control Sensor: Replacement

WARNING: This page is about a different car, the 2004 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR
    1. Disconnect the connector.
    2. Remove the nut and separate the height control sensor link from the rear axle beam.
    3. Remove the 2 bolts and the height control sensor rear.

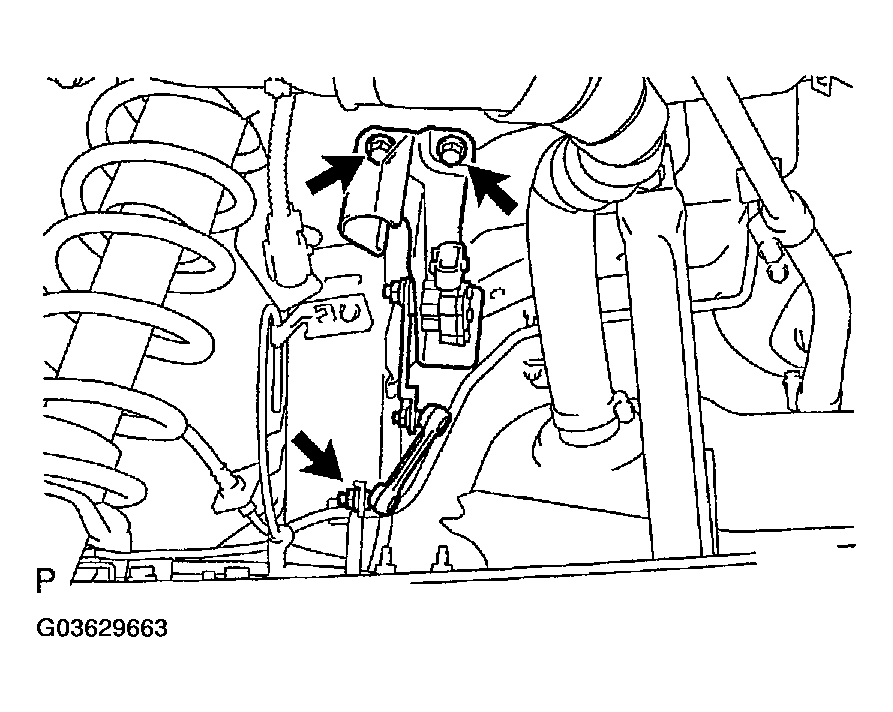

    Fig 1: Removing Height Control Sensor Sub-Assy Rear
    G03629663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. PERFORM INITIALIZATION (SEE  INITIALIZATION  )
  3. HEADLIGHT AIM ONLY (SEE  ADJUSTMENT  )
