Clutch Start Switch Test

WARNING: This page is about a different car, the 2004 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

On manual transmission models, vehicle will not crank unless clutch pedal is depressed. If vehicle will not crank while clutch pedal is depressed, test clutch start switch by testing continuity. With switch ON (pushed in) there should be continuity. when the switch is OFF (out), there should not be continuity. See Fig 1.

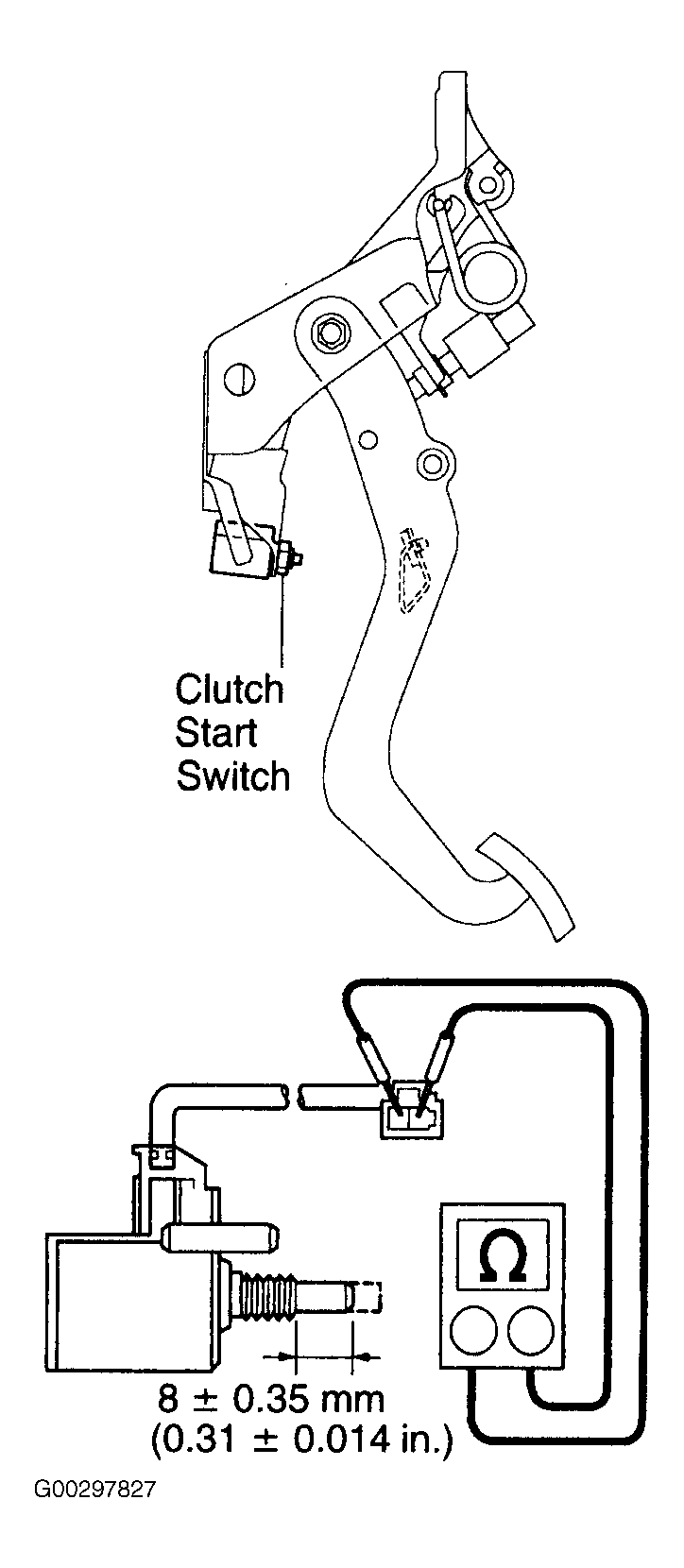

Fig 1: Testing Clutch Start Switch
G00297827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
