Magnetic Switch Test
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

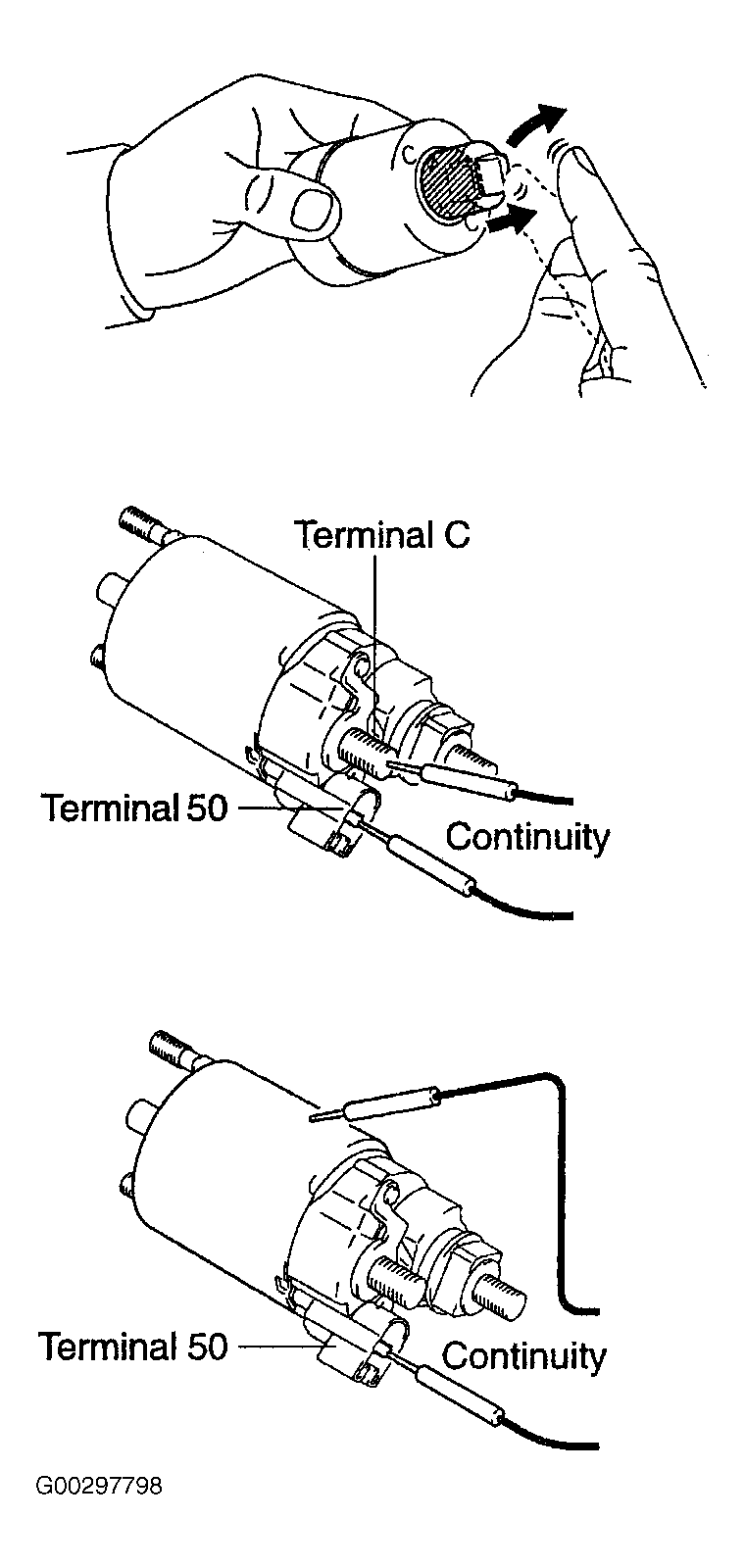

- Push in the plunger and check that it returns quickly to its original position. See Fig 1. If Performance is not as specified, replace the repair service starter kit.
- Using an ohmmeter, check that there is continuity between terminals 50 and C with a resistance of less than one ohm. See Fig 1. If there is no continuity, replace the repair service starter kit.
- Using an ohmmeter, check. that there is continuity between terminal 50 and the switch body of less than 2 ohms. See Fig 1. If there is no continuity; replace the repair service starter kit.
