Ignition Switch Continuity Test
WARNING: This page is about a different car, the 2004 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

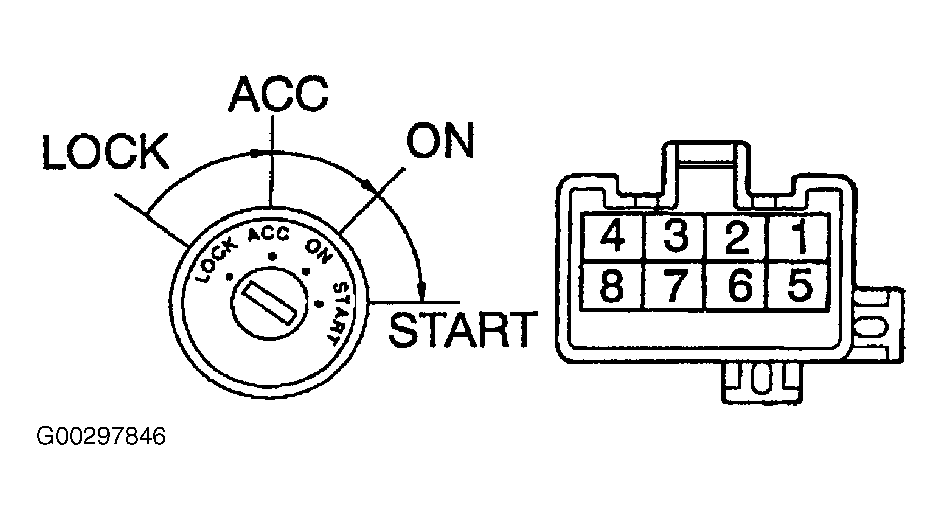

Measure resistance between ignition switch connector terminals. See Fig 1. Ensure resistance is within specification. See IGNITION SWITCH RESISTANCE SPECIFICATIONS . If switch resistance does not meet specifications, replace switch assembly.
IGNITION SWITCH RESISTANCE SPECIFICATIONS
| Ohmmeter Connection | Ignition Switch Position | Resistance |
|---|---|---|
| ..... | Lock | 10,000 Ohms Or More |
| 2-3 | Accessory | Less Than 1 Ohm |
| 2-3 | On | Less Than 1 Ohm |
| 2-4 | On | Less Than 1 Ohm |
| 6-7 | On | Less Than 1 Ohm |
| 1-2 | Start | Less Than 1 Ohm |
| 1-4 | Start | Less Than 1 Ohm |
| 6-7 | Start | Less Than 1 Ohm |
| 6-8 | Start | Less Than 1 Ohm |
