Customize Function - Diagnostic Program Card Version 8.1 (SS007-01)

Publication date: 2001-10-19
Reference number: SS007-01

CUSTOMIZE FUNCTION - DIAGNOSTIC PROGRAM CARD VERSION 8.1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS007-01, Date of Issue: October 19, 2001

LEXUS:	2002 ES 300
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Customize Function - Diagnostic Program Card Version 8.1

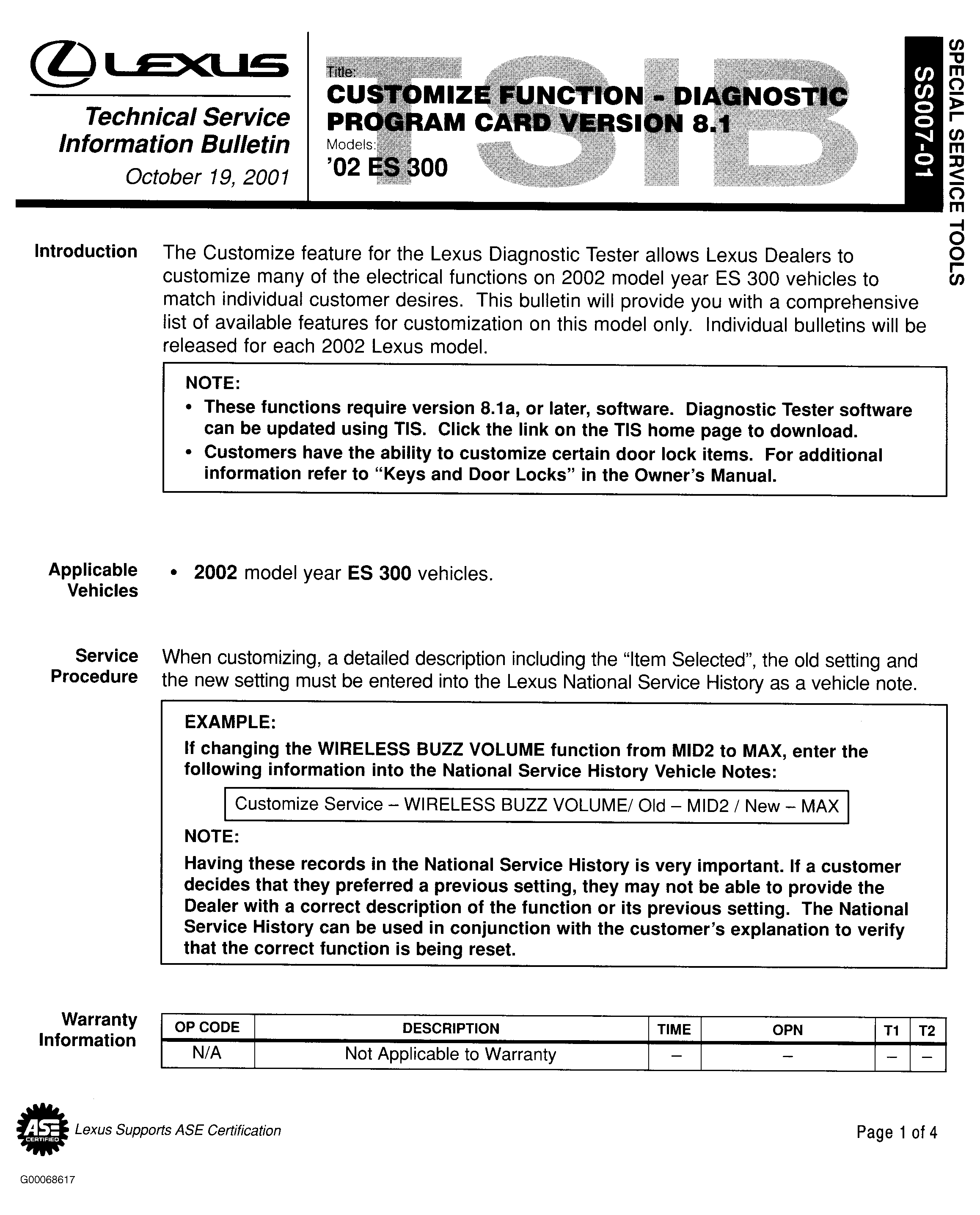

Fig 1: Page 1

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

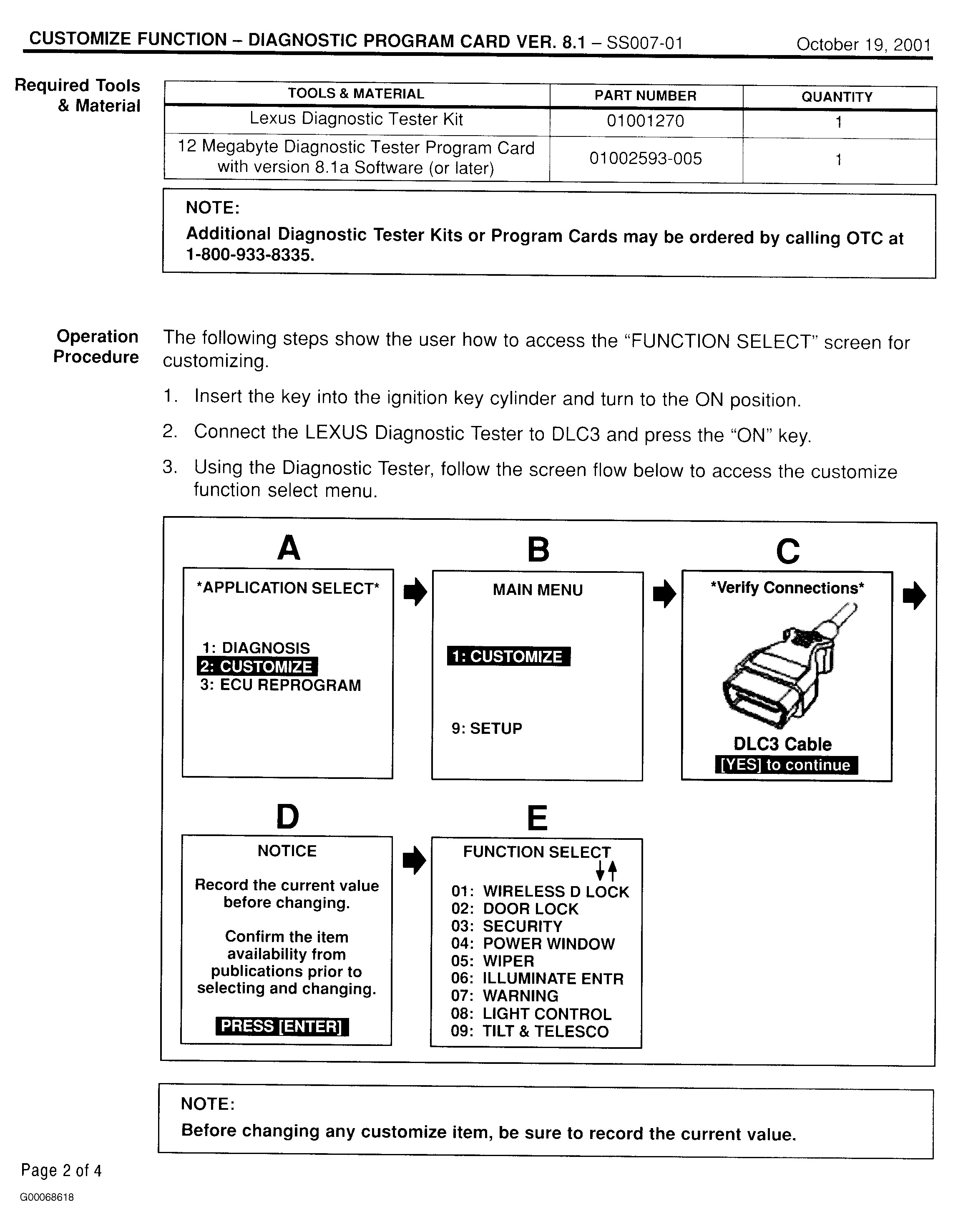

Fig 2: Page 2

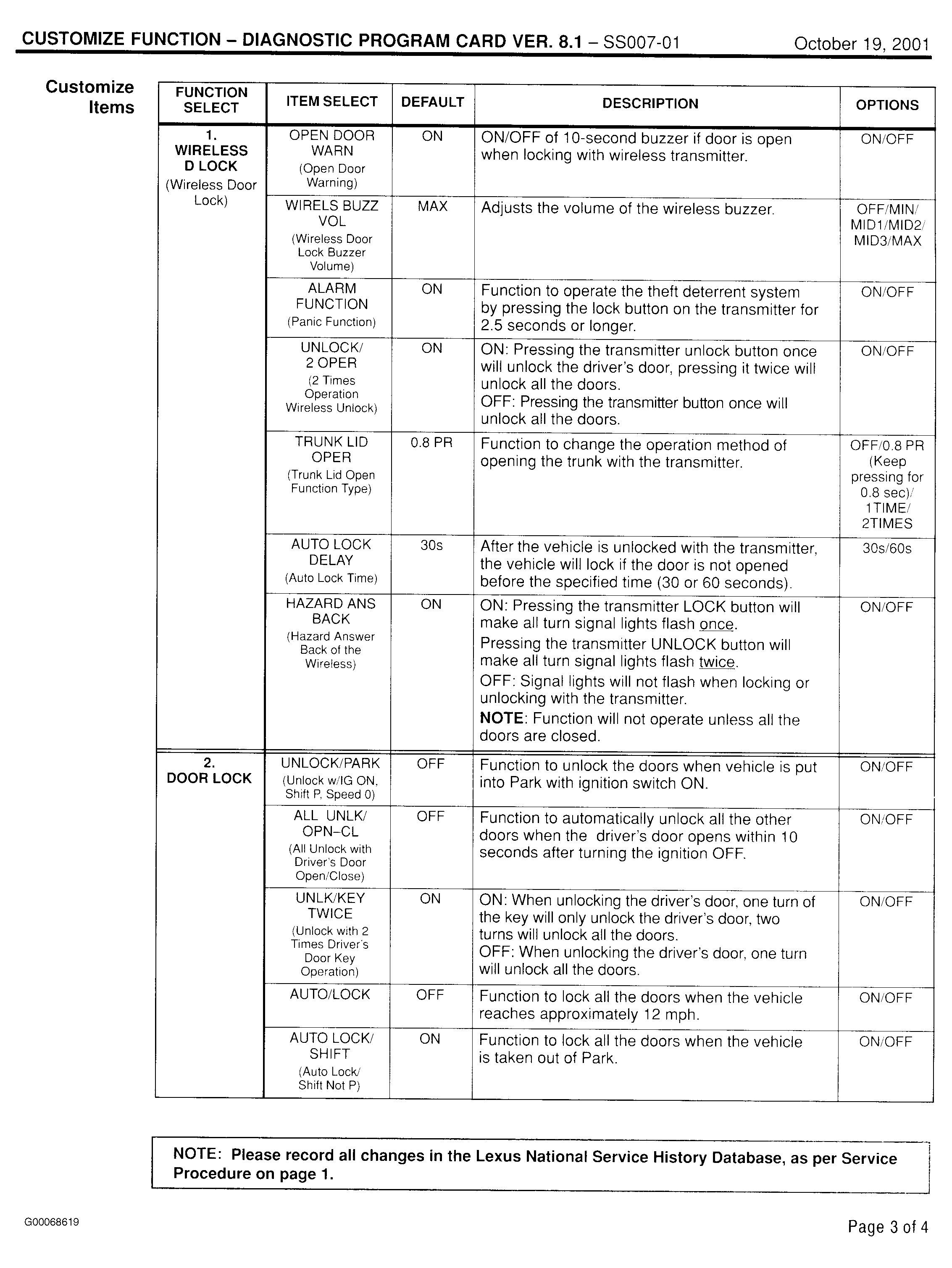

Fig 3: Page 3

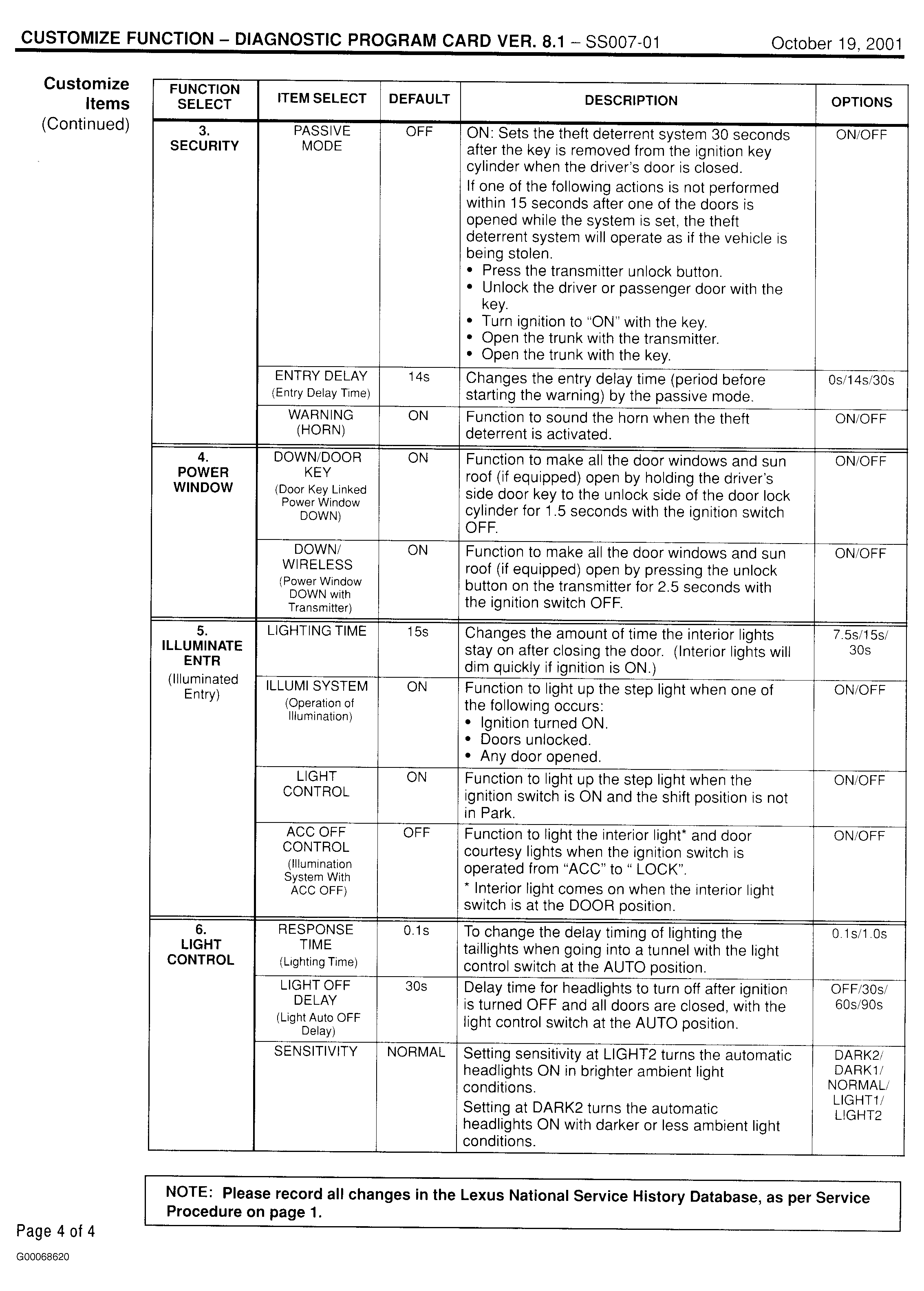

Fig 4: Page 4
