Rack & Pinion Power Steering Gear Assembly: Components

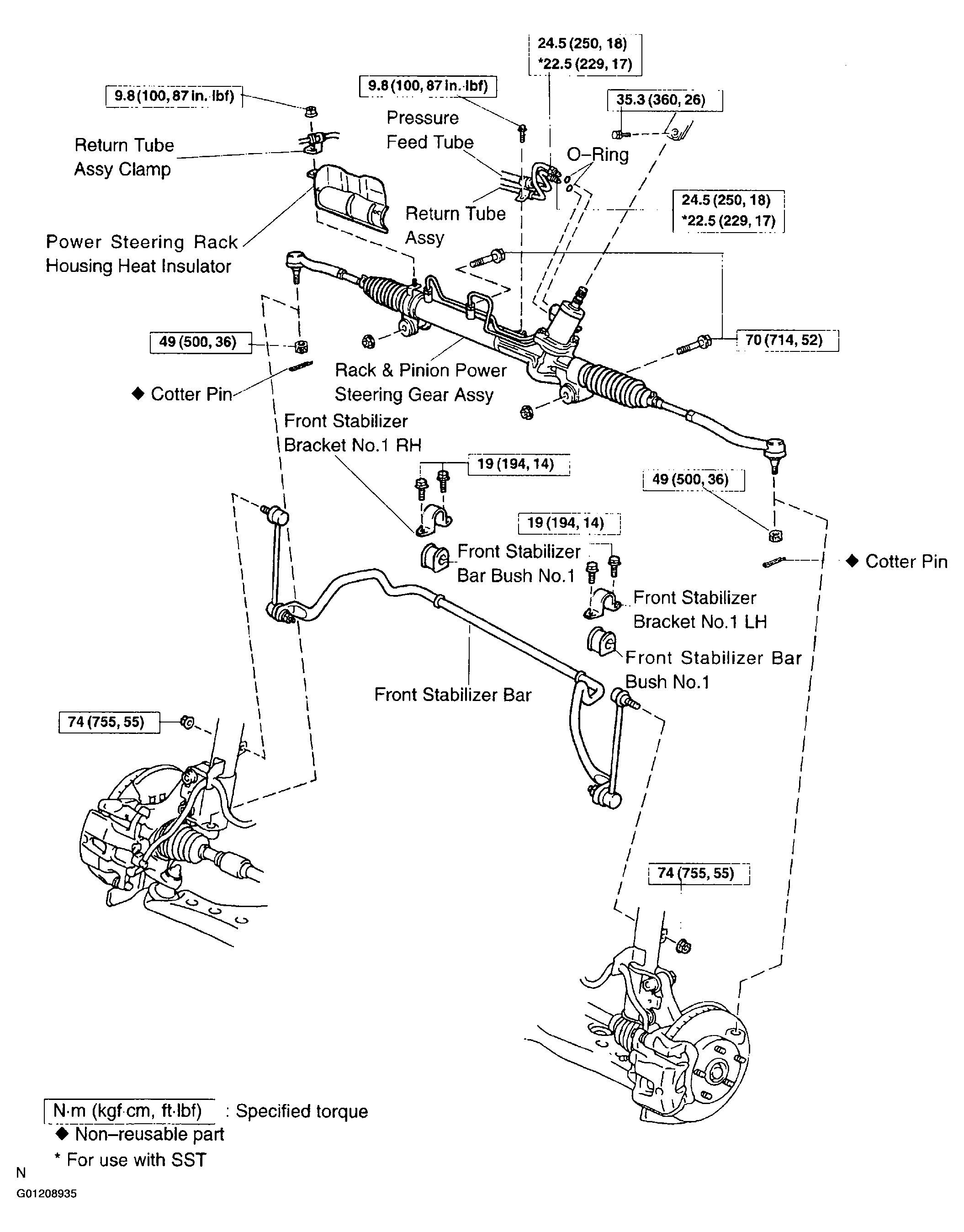

Fig 1: Displaying Rack & Pinion Power Steering Gear Assembly Components (1 Of 3)
G01208935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

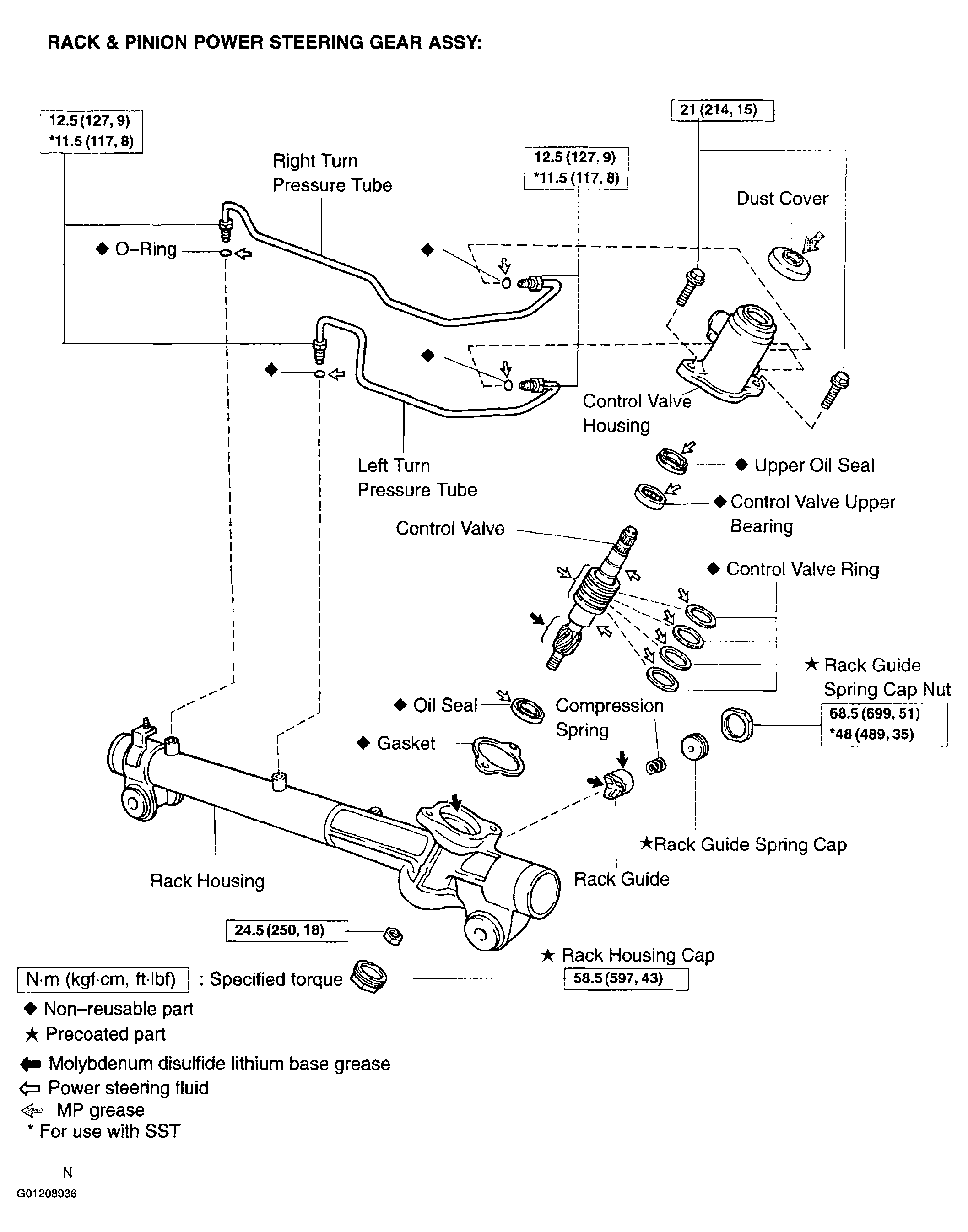

Fig 2: Displaying Rack & Pinion Power Steering Gear Assembly Components (2 Of 3)
G01208936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

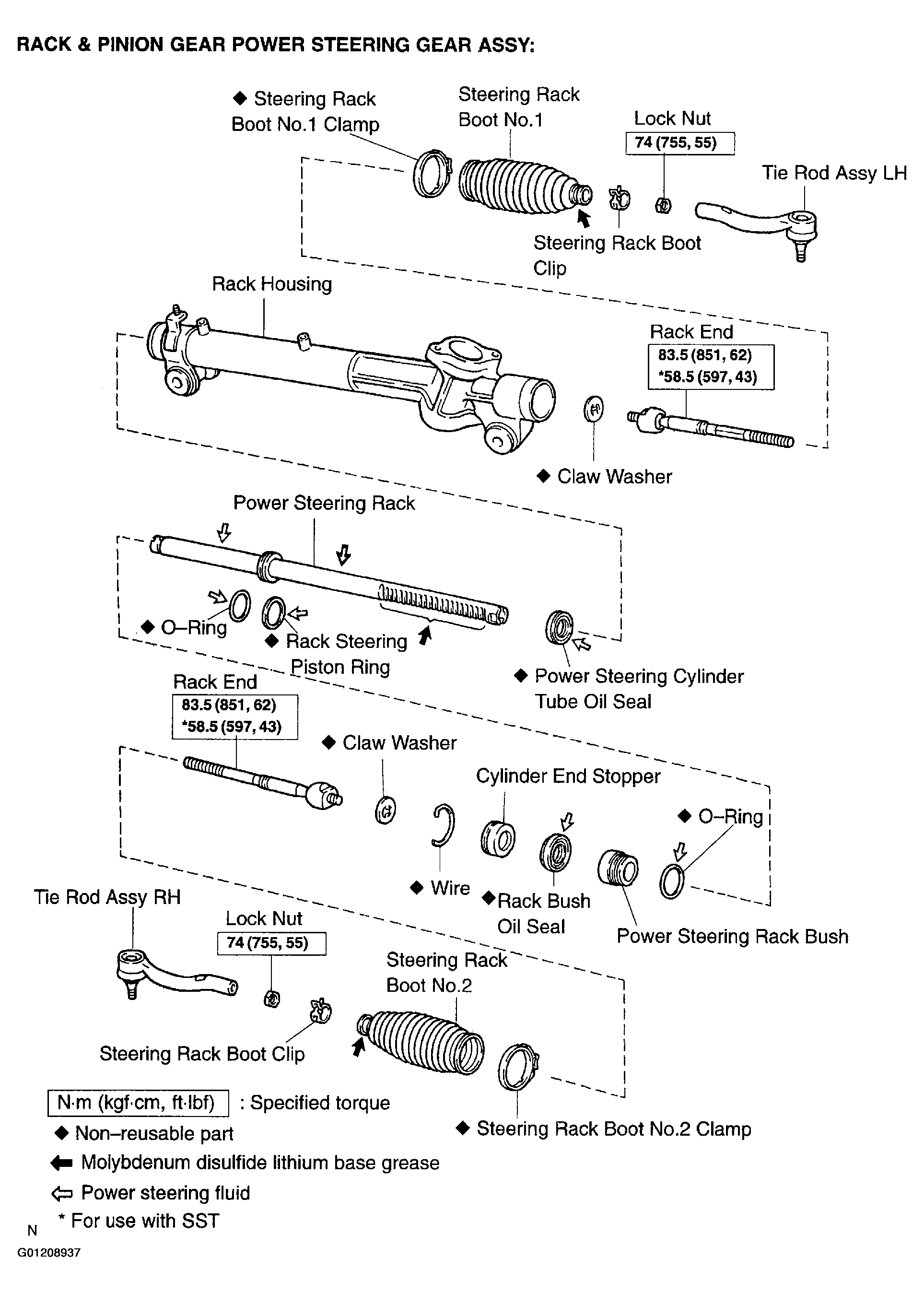

Fig 3: Displaying Rack & Pinion Power Steering Gear Assembly Components (3 Of 3)
G01208937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
