Component Location

For front suspension components, see Fig 1. For shock absorber with coil spring, see Fig 2.

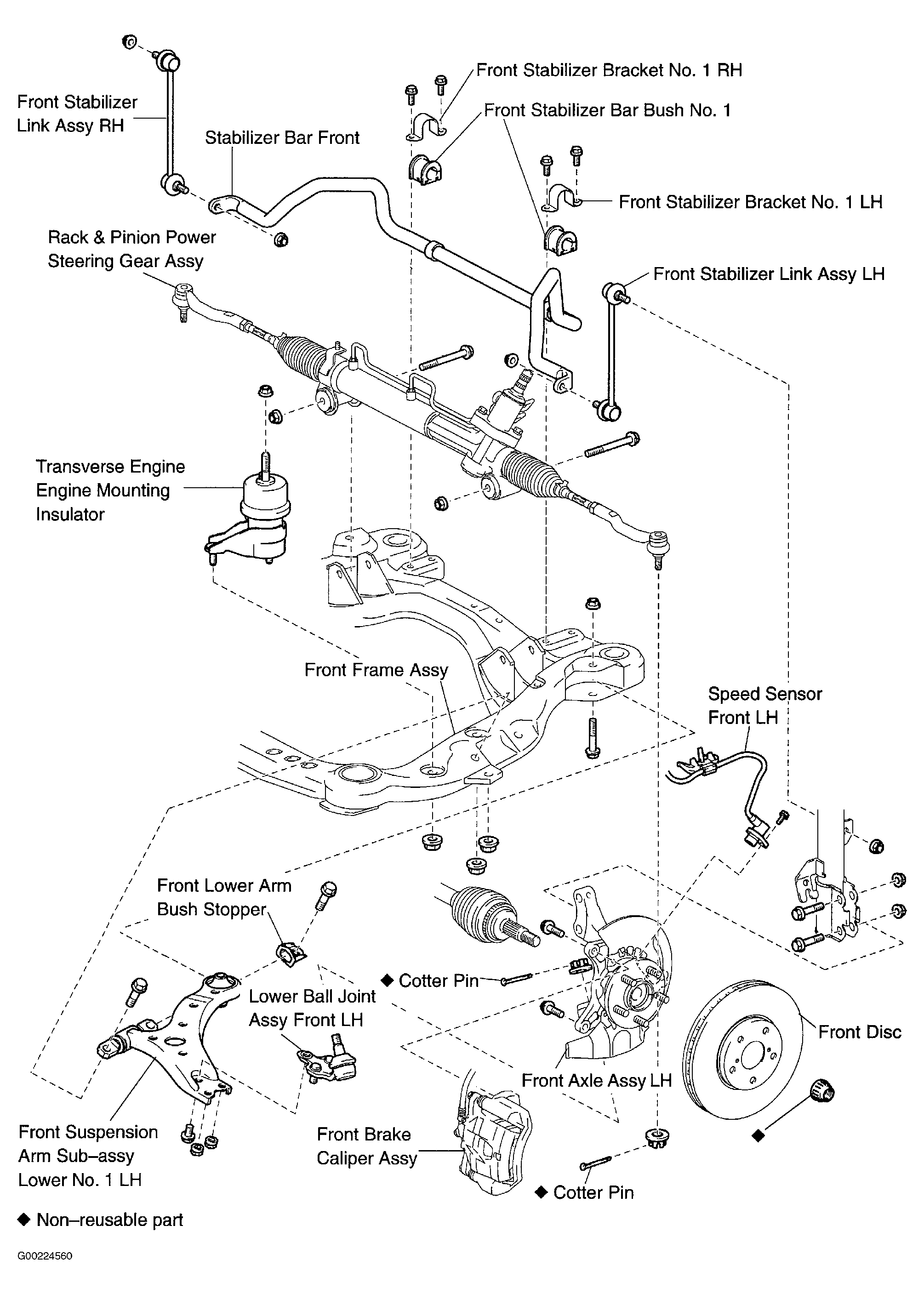

Fig 1: Identifying Front Suspension Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

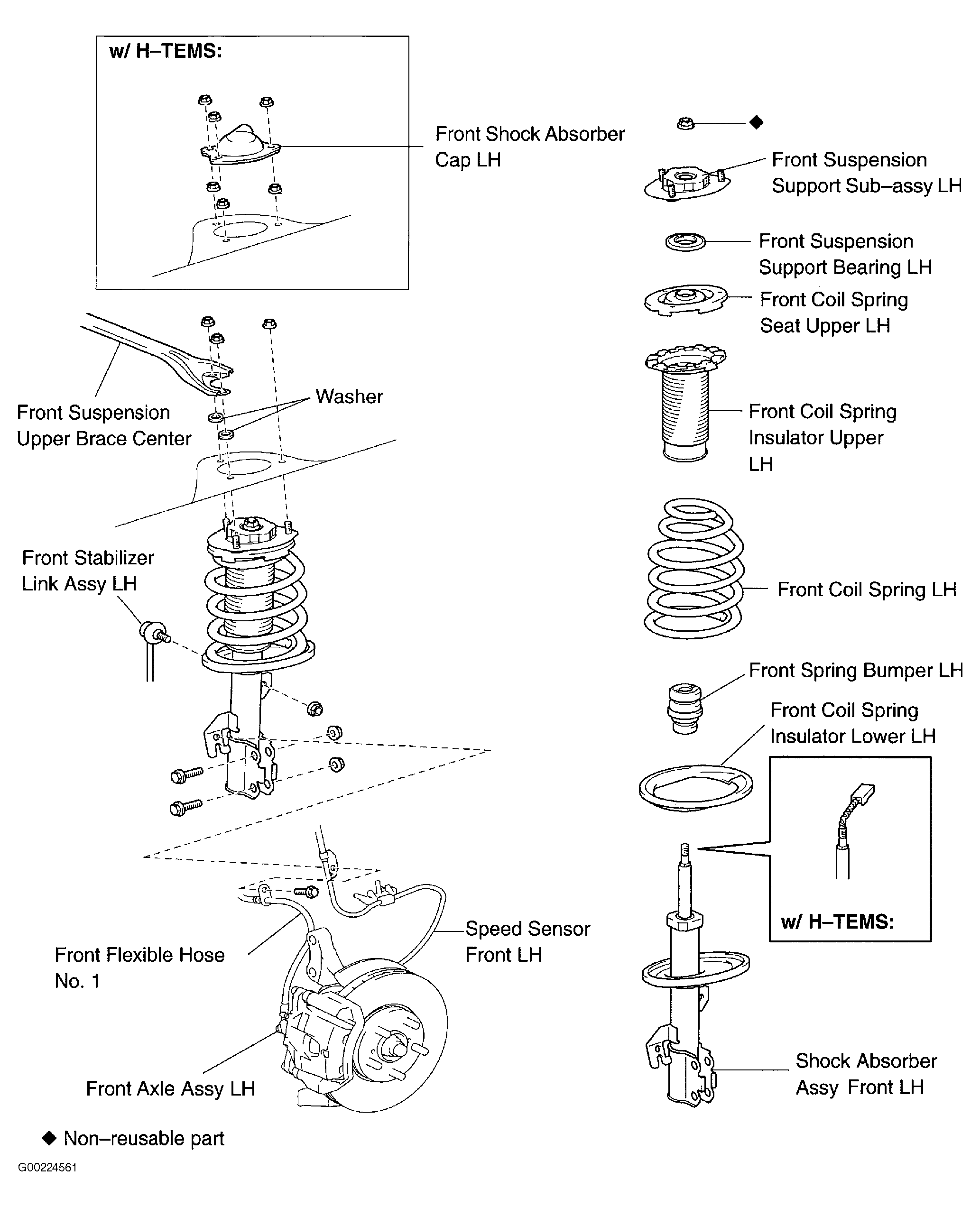

Fig 2: Identifying Front Shock Absorber With Coil Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
