Additional Sub-Key Registration

NOTE:

It is possible to register up to 3 sub-key codes including the already registered key code.
When any operation time described below is over, registration mode completes.
When the next procedure is started while the timer is working, the timer completes counting time, then the next timer starts.

There are 2 ways for registration of an additional sub-key, one way is depressing the brake pedal and acceleration and the other way is using the hand-held tester. When using the brake and accelerator pedal for additional sub-key registration, refer to flowchart. See Fig 1. When using the hand-held tester for additional sub-key registration, refer to flowchart. See Fig 2.

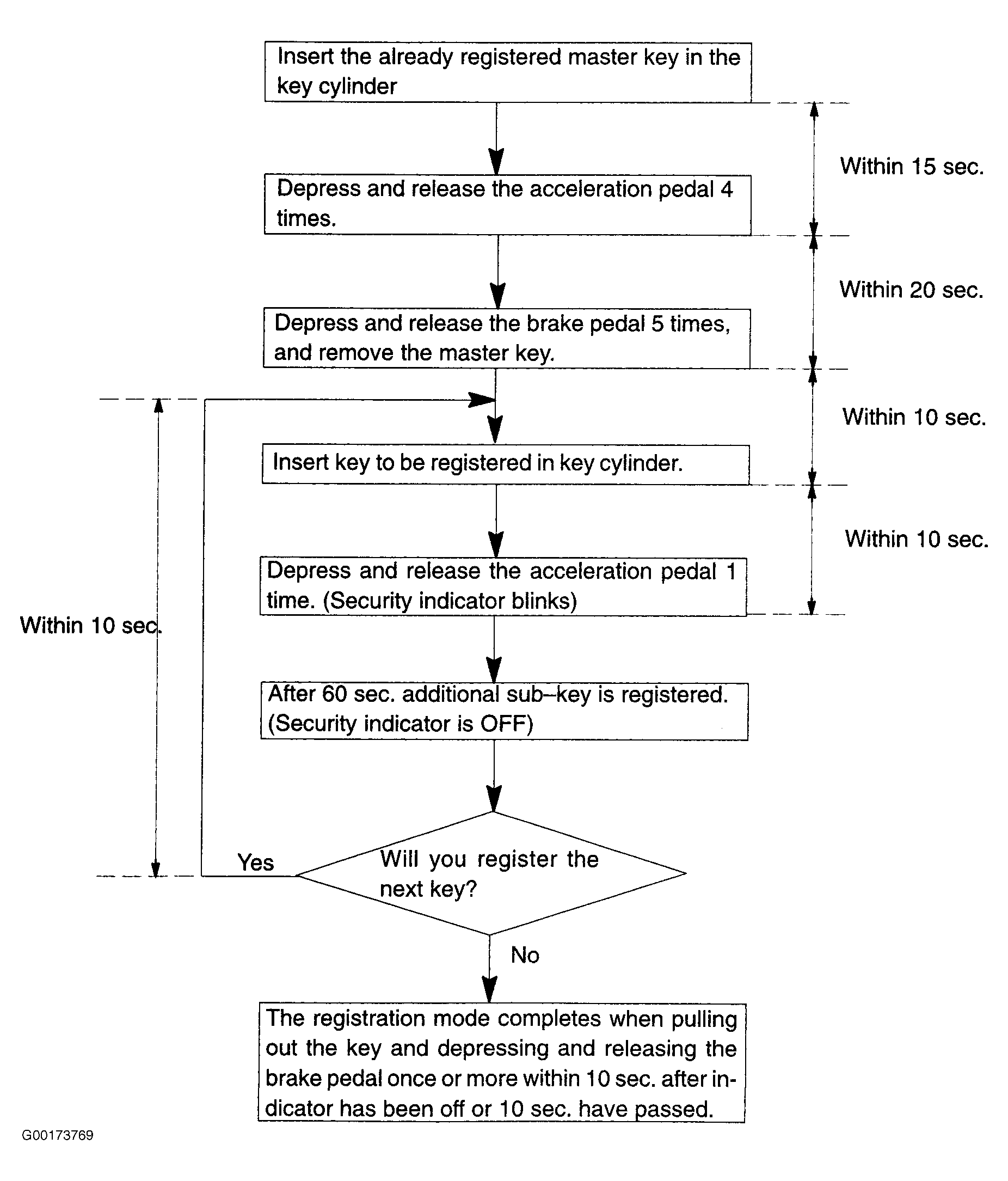

Fig 1: Registering Key Number With Brake & Accelerator Pedal

Fig 2: Registering Key Number With Hand-Held Tester
