Circuit Description

The jam protection limit switch is built-in the power window motor. See Fig 1 and Fig 2 . This switch functions to turn OFF before the top dead center and ECU reads the OFF signal resulting in closing the window fully.

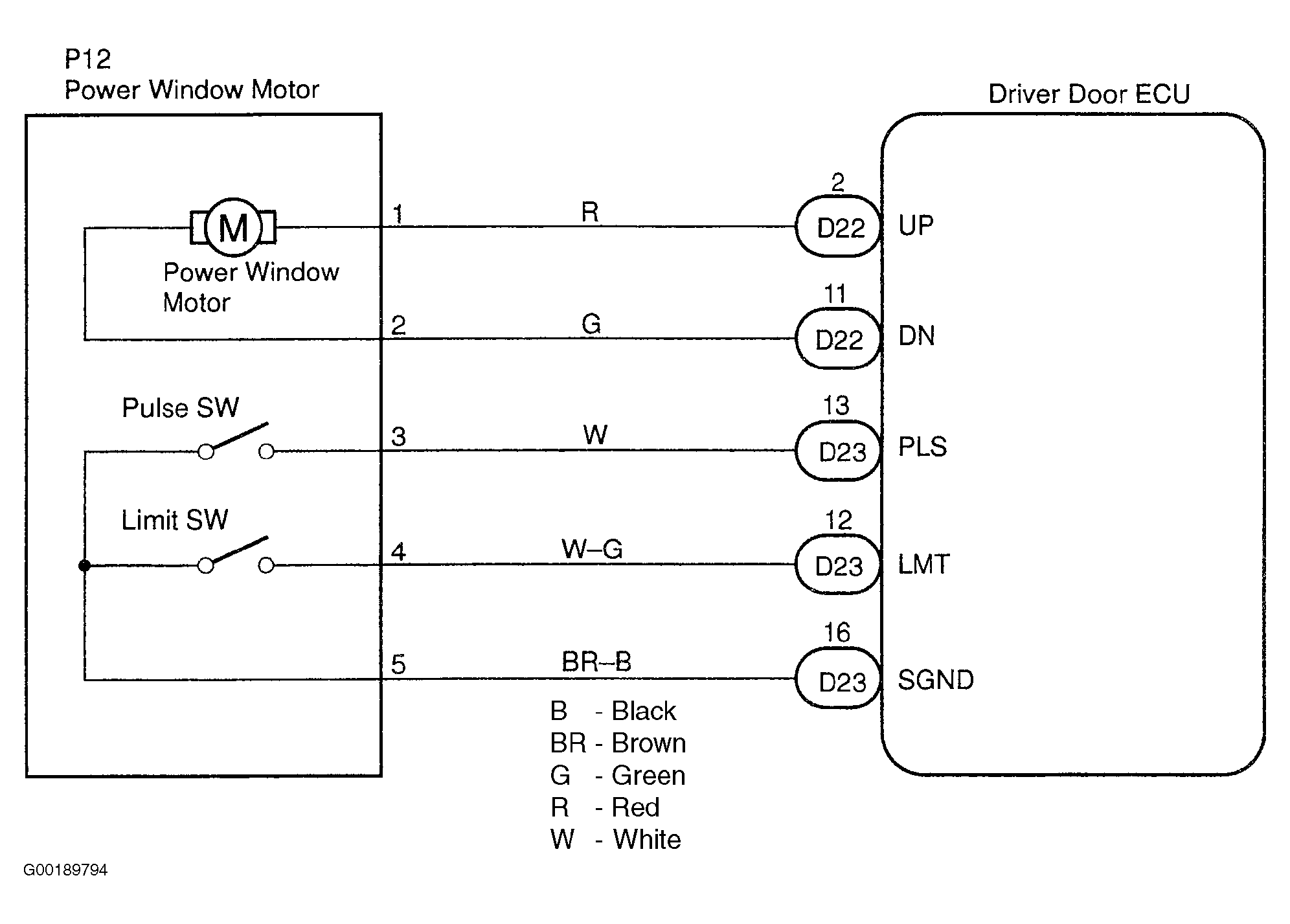

Fig 1: Identifying Driver Door Power Window Motor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

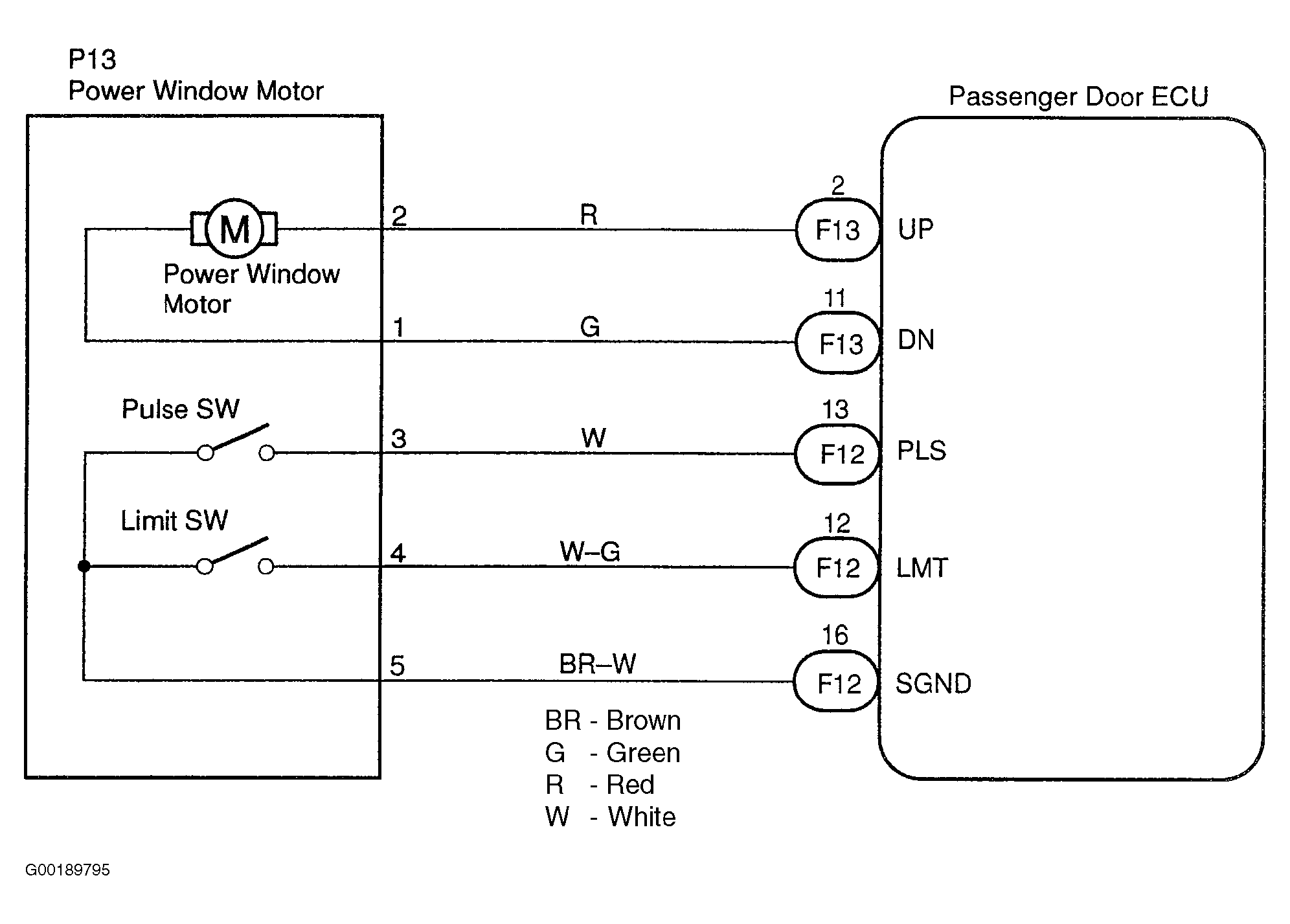

Fig 2: Identifying Passenger Door Power Window Motor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
