Engine Compartment

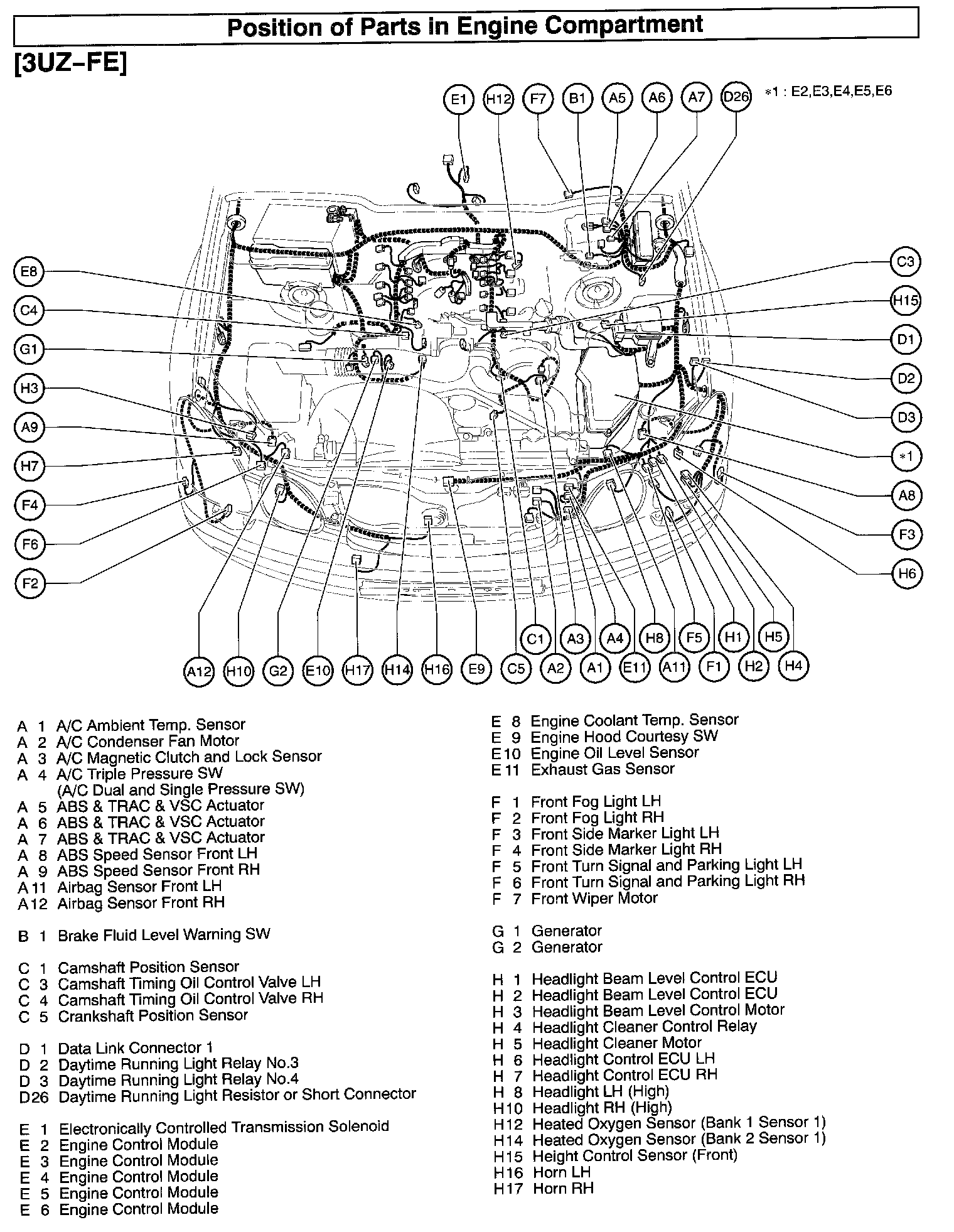

Position Of Parts In Engine Compartment (3UZ-FE) Part 1:

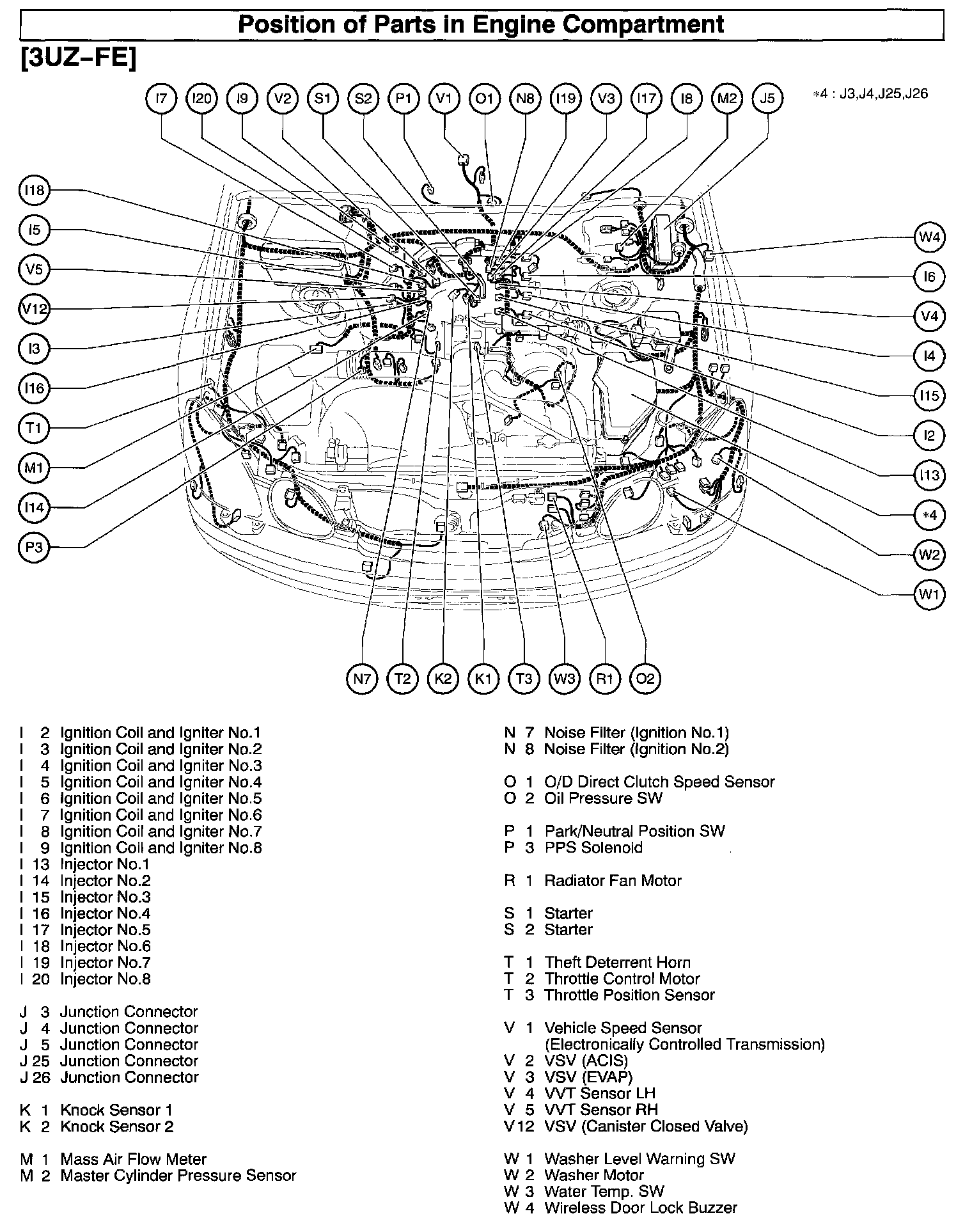

Position Of Parts In Engine Compartment (3UZ-FE) Part 2:
