Main Relay (Computer/Fuel System): Testing and Inspection

INSPECTION




1. REMOVE RELAY BOX COVER

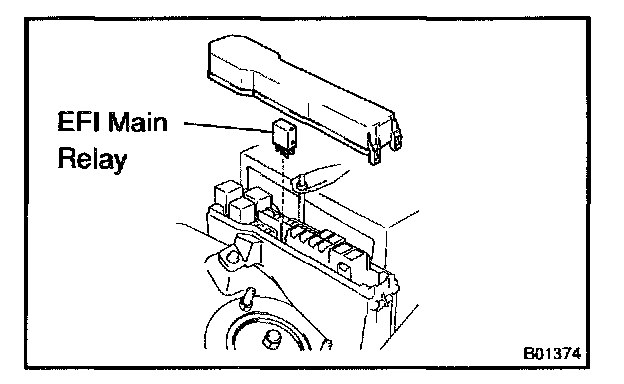

2. REMOVE EFI MAIN RELAY (Marking: EFI)




3. INSPECT EFI MAIN RELAY

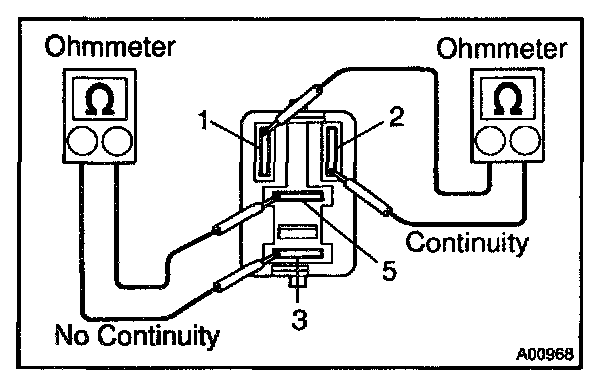

a. Inspect the relay continuity.
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
If there is no continuity, replace the relay.

2. Check that there is no continuity between terminals 3 and 5.
If there is continuity, replace the relay.

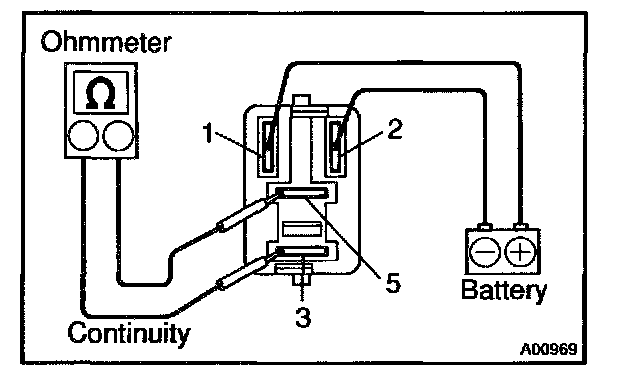

b. Inspect the relay operation.
1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is continuity between terminals 3 and 5.
If there is no continuity, replace the relay.

4. REINSTALL EFI MAIN RELAY
5. REINSTALL RELAY BOX COVER
