Test B: Remote Control Of All Windows (Except Driver's) Does Not Function With Master Switch (Windows Operate Normally With Each Master Switch)

For Test B, see Fig 1.

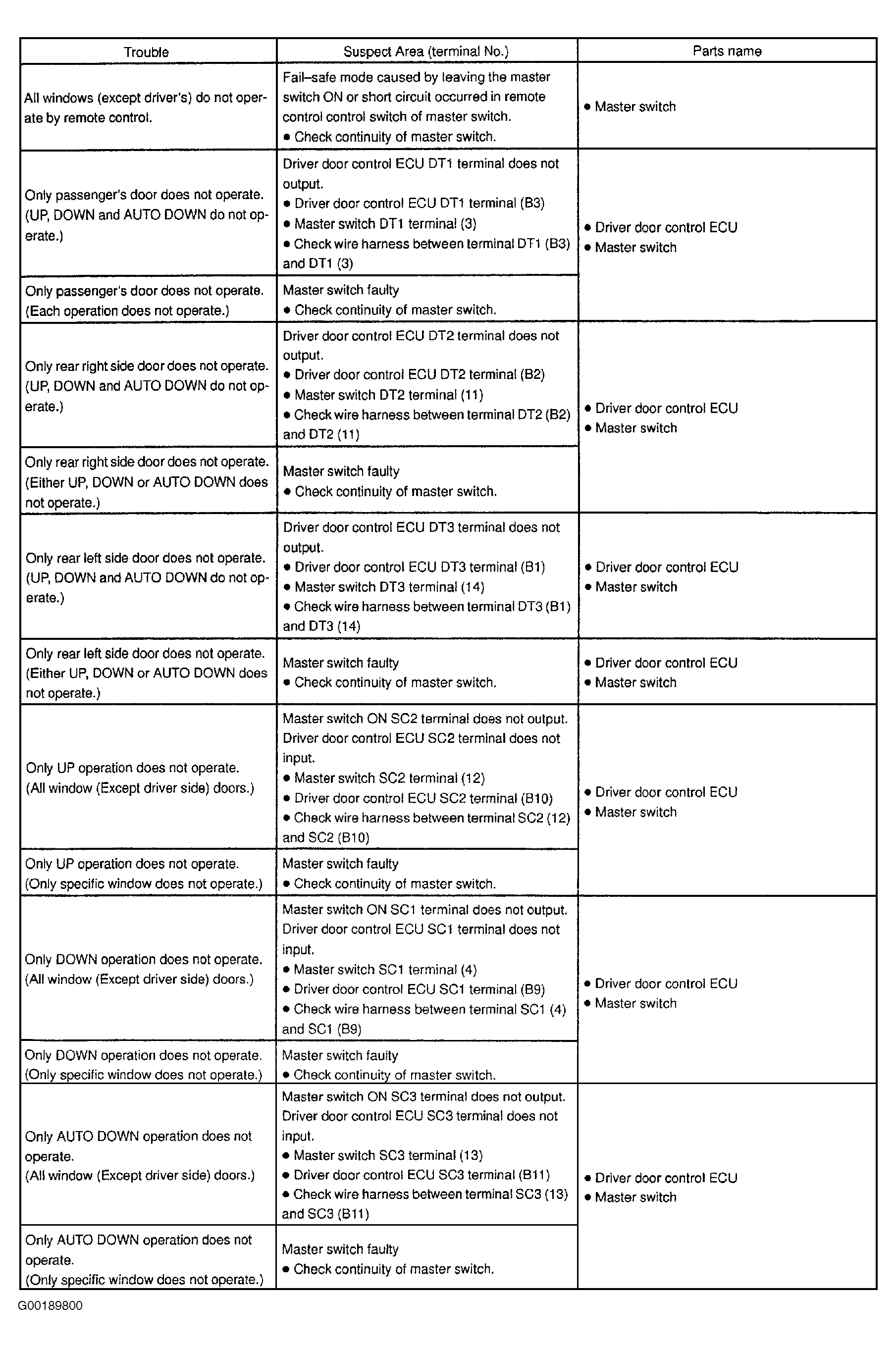

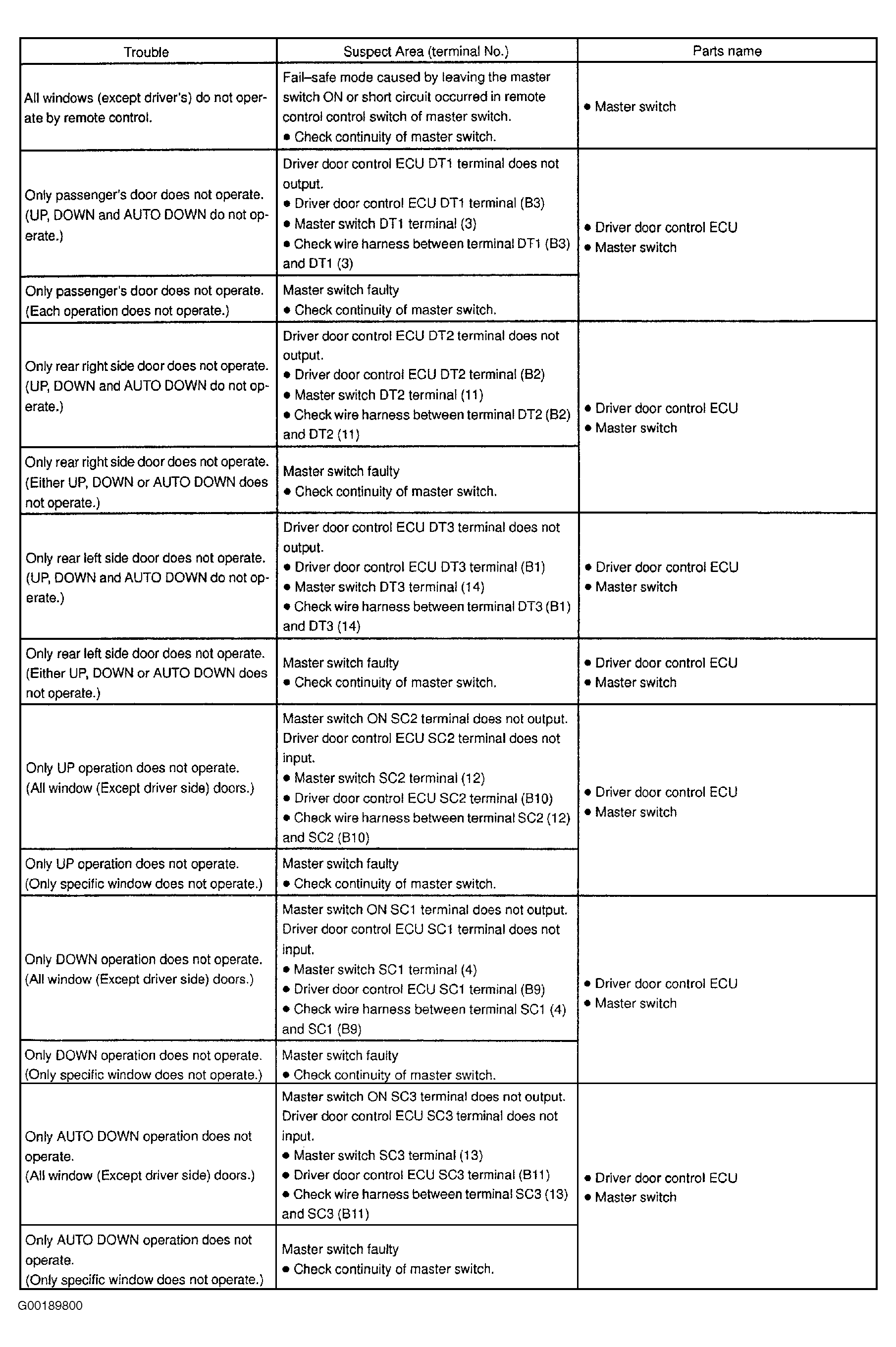

Fig 1: Identifying Remote Control Of All Windows (Except Driver's) Does Not Function With Master Switch Flowchart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
