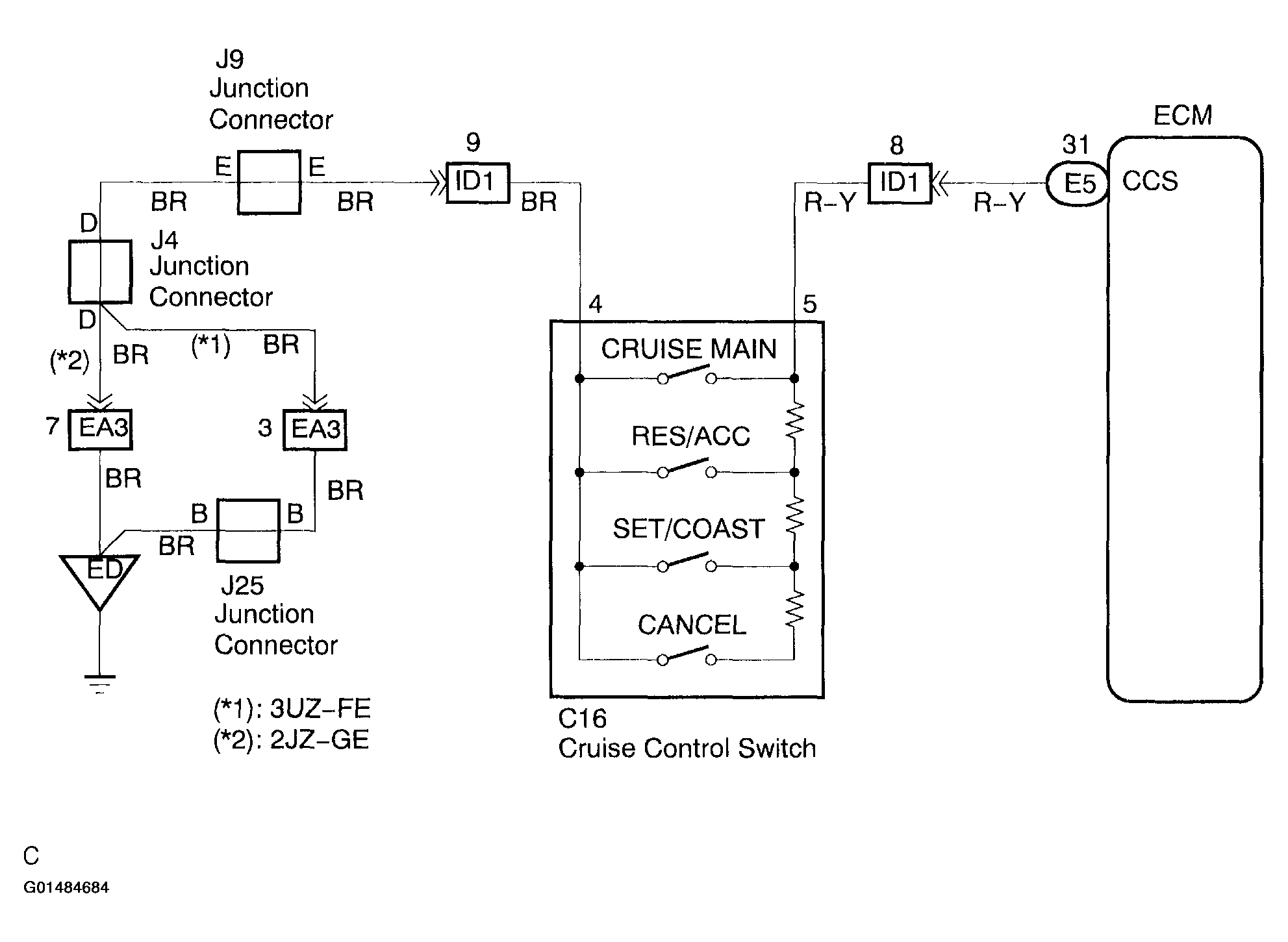

Control Switch Circuit (Cruise Control Switch): Wiring Diagram

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
