Terminals Of ECM

WARNING: This page is about a different car, the 2003 Lexus GS 430 and 2003 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Terminals Of ECM
G01484673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

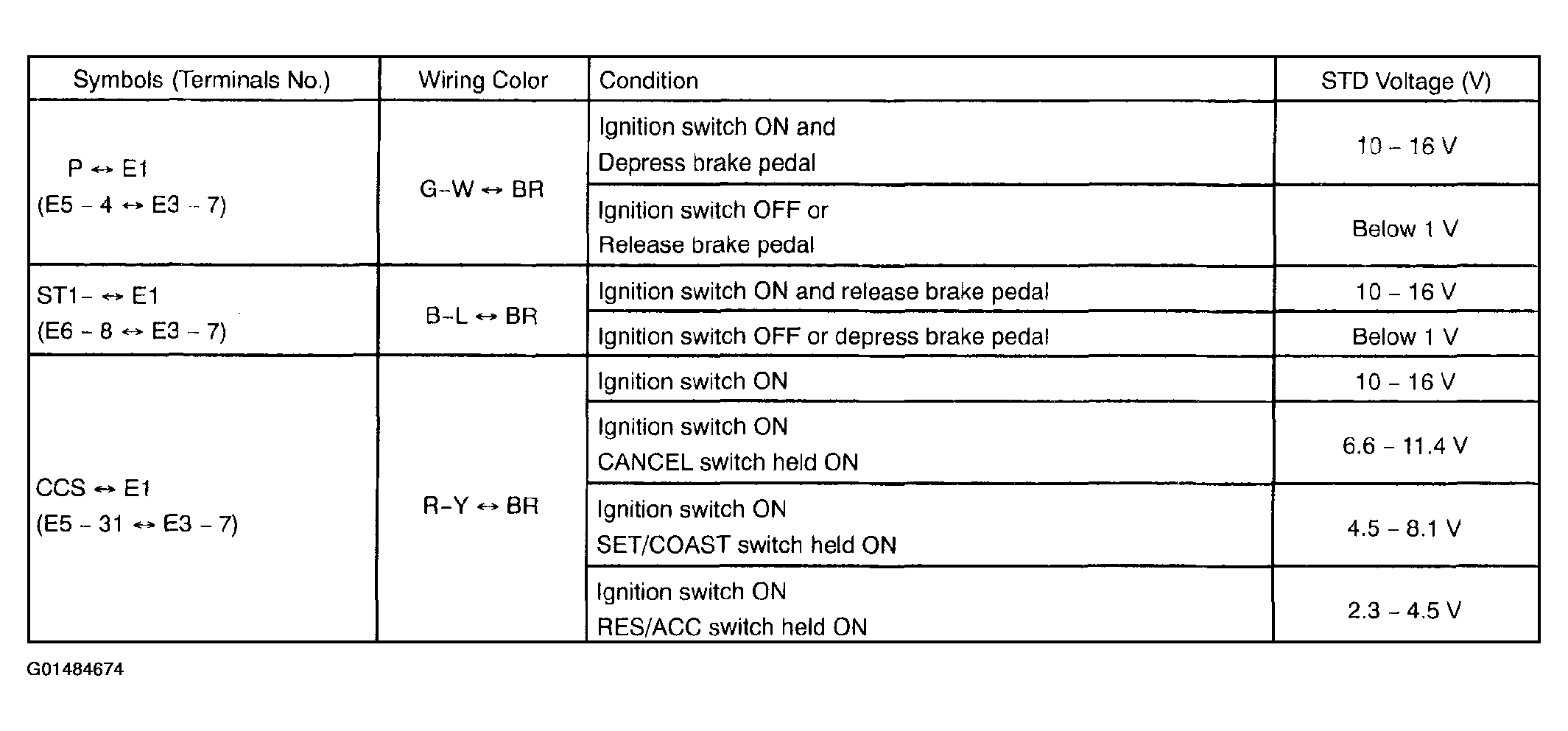

Fig 2: Identifying Cruise Control Terminals At ECM
G01484674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
