Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Component Location |
|---|---|
| BA1 (12 Pin) | Under left "B" pillar. |
| BB1 (12 Pin) | Under right "B" pillar. |
| BC1 (12 Pin) | Under left front seat. |
| BD1 (12 Pin) | Under right front seat. |

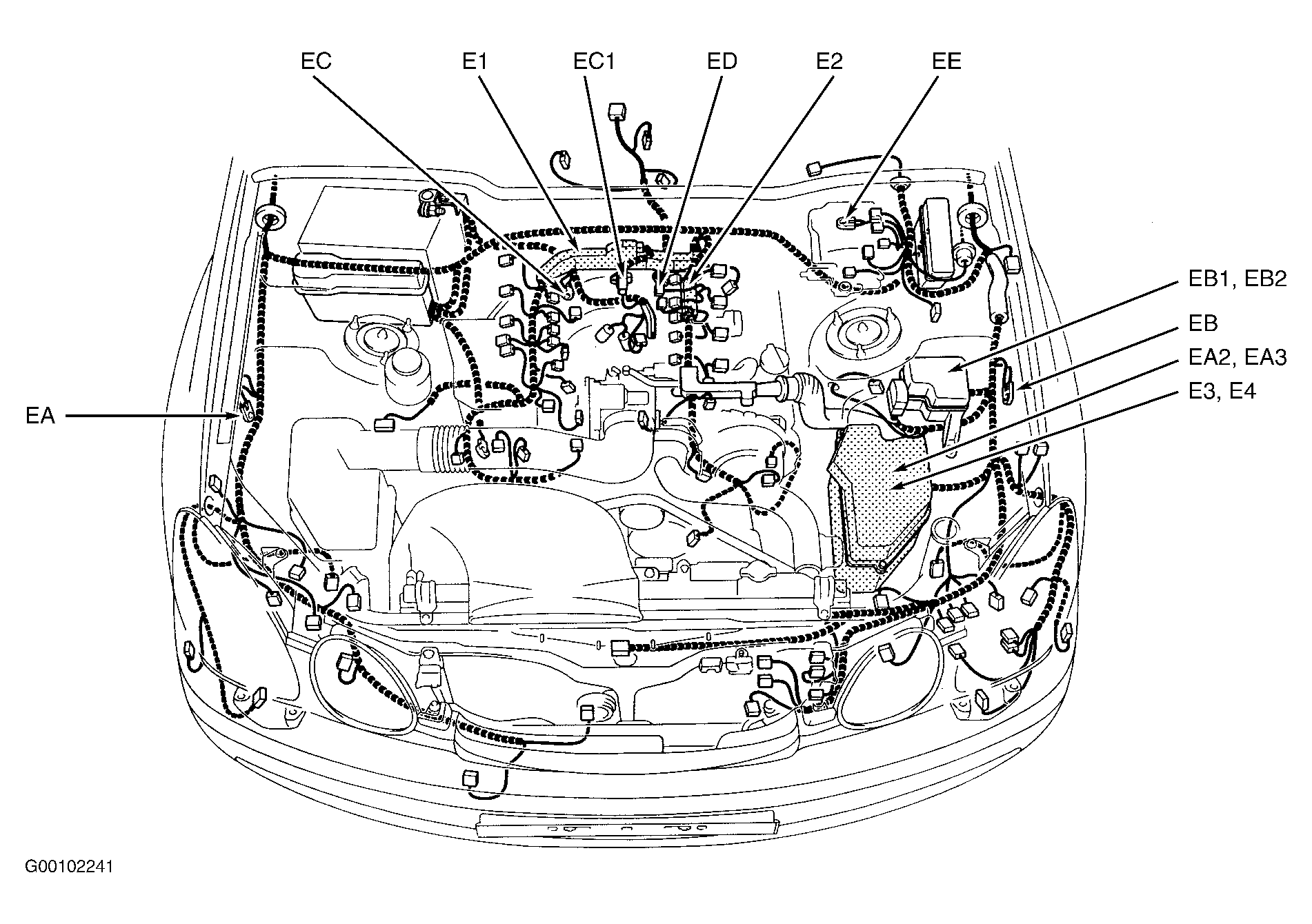

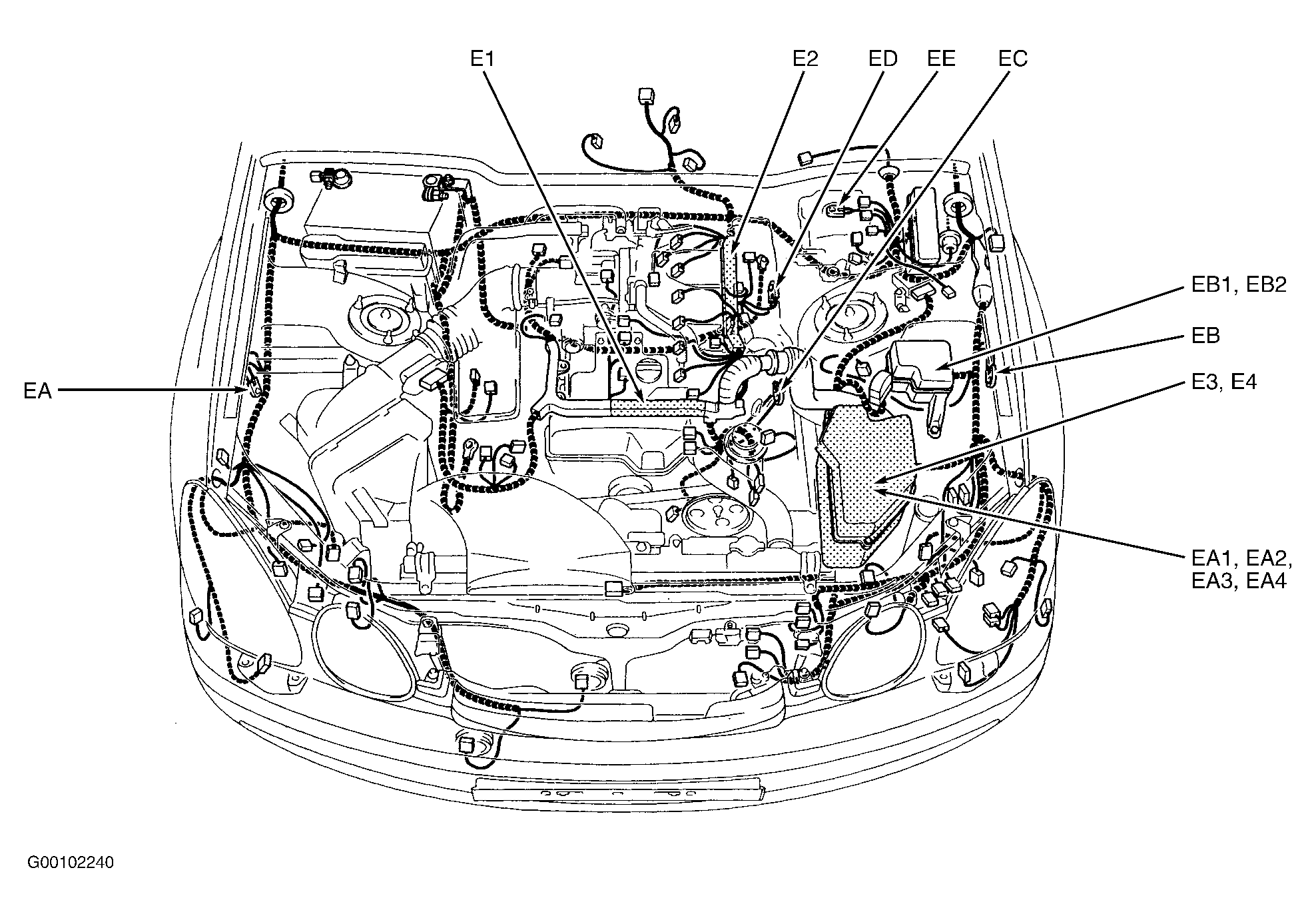

| EA1 (12 Pin) | Inside ECU box. See Figure. |
| EA2 (3.0L) (10 Pin) | Inside ECU box. See Figure. |
| EA2 (4.3L) (10 Pin) | Inside ECU box. See Figure. |
| EA3 (3.0L) (9 Pin) | Inside ECU box. See Figure. |
| EA3 (4.3L) (9 Pin) | Inside ECU box. See Figure. |
| EA4 (11 Pin) | Inside ECU box. See Figure. |
| EB1 (3.0L) (12 Pin) | Inside engine room R/B No. 3. See Figure. |
| EB1 (4.3L) (12 Pin) | In side engine room R/B No. 3. See Figure. |
| EB2 (3.0L) (4 Pin) | Inside engine room R/B No. 3. See Figure. |
| EB2 (4.3L) (4 Pin) | Inside engine room R/B No. 3. See Figure. |
| EC1 (4.3L) (Black, 3 Pin) | Near starter. See Figure. |
| IA1 (Orange, 10 Pin) | Near driver side J/B. |
| IA2 (Blue, 18 Pin) | Near driver side J/B. |
| IB1 (17 Pin) | At left kick panel. |
| IC1 (Blue, 18 Pin) | At left kick panel. |
| IC2 (Orange, 10 Pin) | At left kick panel. |
| IC3 (20 Pin) | At left kick panel. |
| ID1 (9 Pin) | At left side of dash reinforcement. |
| IE1 (Blue, 18 Pin) | Behind left side of dash, at left side of steering column. |
| IE2 (14 Pin) | Behind left side of dash, at left side of steering column. |
| IE3 (6 Pin) | Behind left side of dash, at left side of steering column. |
| IF1 (Yellow, 2 Pin) | Behind left side of dash, at right side of steering column. |
| IG1 (3 Pin) | At left side of blower unit. |
| IH1 (14 Pin) | At left side of blower unit. |
| II1 (2 Pin) | Near passenger side J/B. |
| IA (Blue, 18 Pin) | Near passenger side J/B. |
| IA (Yellow, 2 Pin) | Near passenger side J/B. |
| II4 (Orange, 10 Pin) | Near passenger side J/B. |
| IJ1 (Gray, 14 Pin) | At left side of blower unit. |
| IJ2 (Blue, 22 Pin) | At left side of blower unit. |
| IJ3 (Orange, 12 Pin) | At left side of blower unit. |
| IK1 (17 Pin) | At right kick panel. |
| IL1 (Blue, 18 Pin) | At right kick panel. |
| IL2 (Orange, 10 Pin) | At right kick panel. |
| IL3 (20 Pin) | At right kick panel. |
| IM1 (11 Pin) | At right front side of shift lever. |
| IM2 (Blue, 18 Pin) | At right front side of shift lever. |
| IN1 (Yellow, 2 Pin) | Near driver side J/B. |
| IO1 (2 Pin) | At left front side of shift lever. |
| IP1 (10 Pin) | Near passenger side J/B. |
| IQ1 (Yellow, 2 Pin) | Near passenger side J/B. |
