Transponder Key Code Erasure

NOTE:

Delete all other master and sub-key codes leaving the master key code to use the operation. When using the key which was used before deletion, it is necessary to register the code again.
When any operation time described below is over, registration mode completes.
When the next procedure is performed while the timer is working, the timer completes counting time, then the next timer starts.

There are 2 ways for erasure of transponder key code:

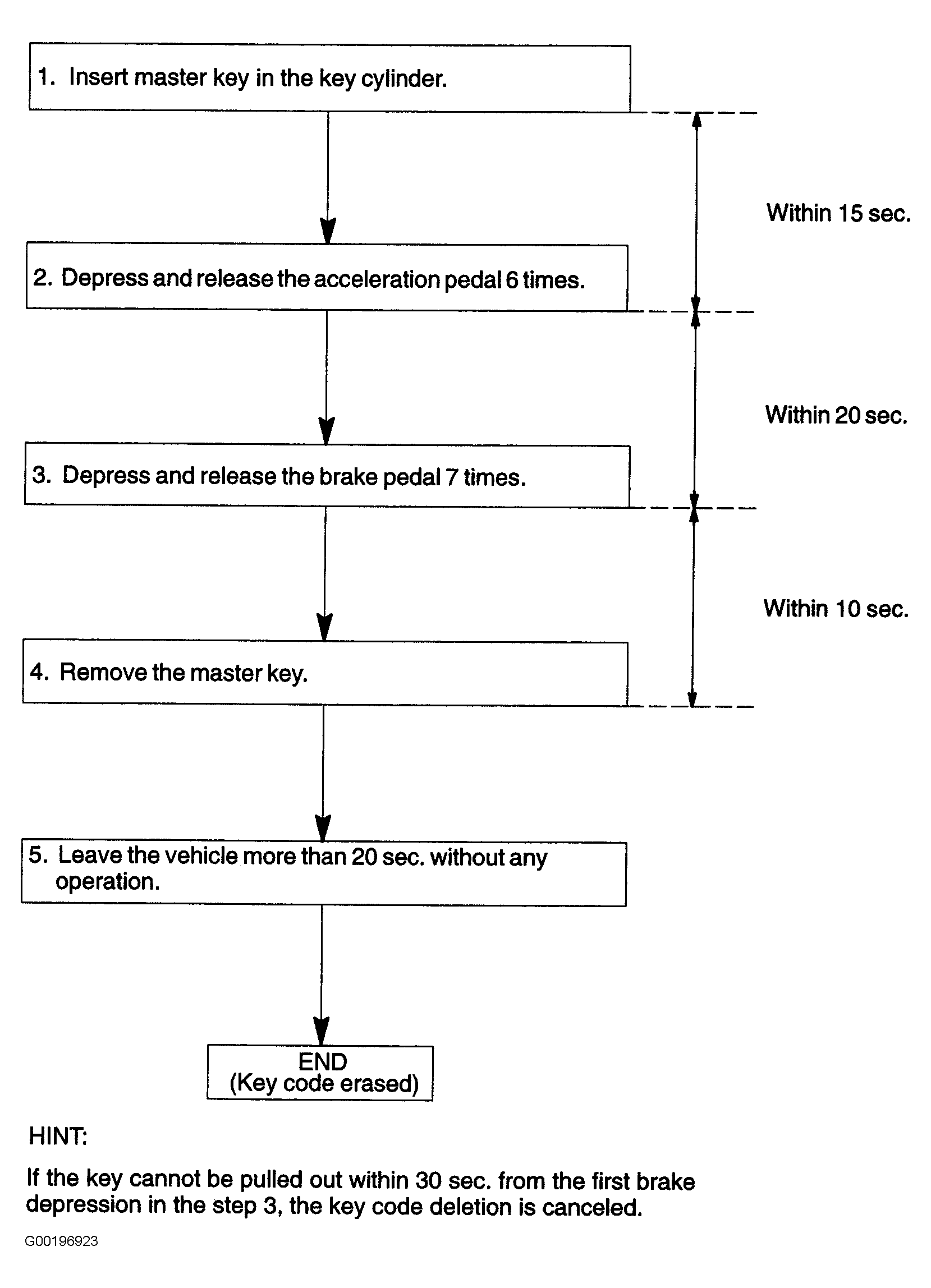

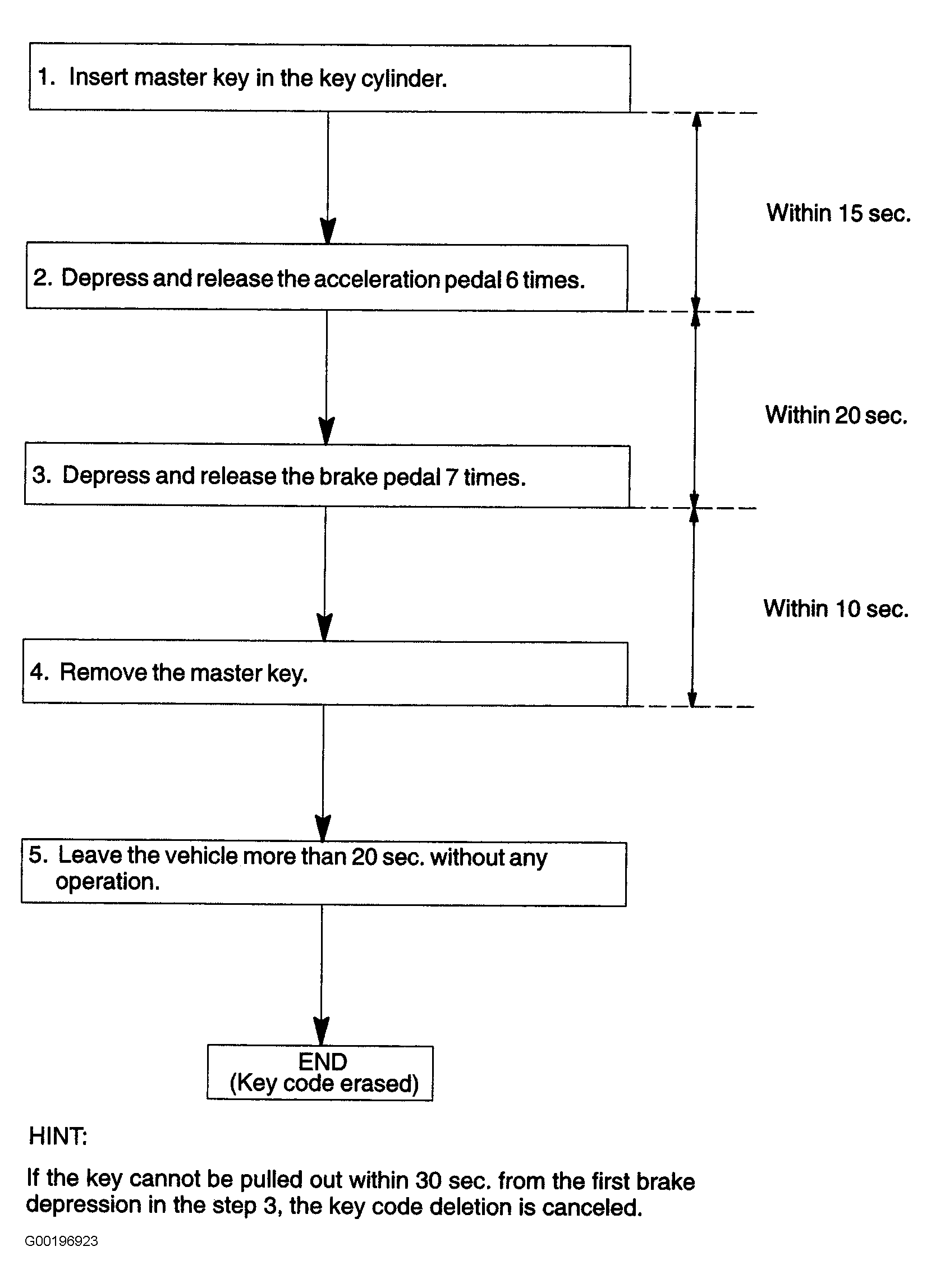

Fig 1: Identifying Transponder Key Code Erasure Flowchart (Using Brake & Acceleration Pedals)

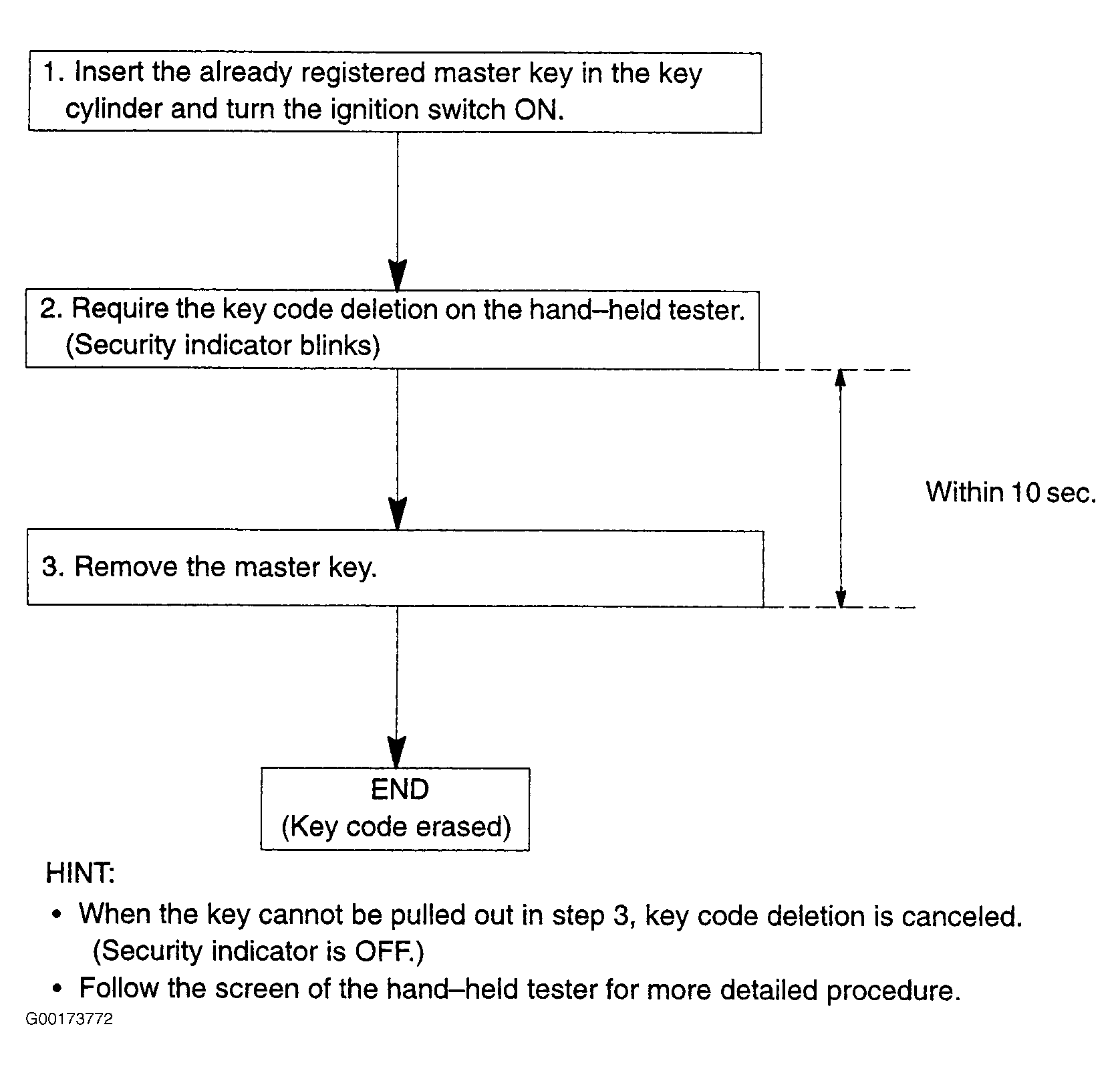

Fig 2: Identifying Transponder Key Code Erasure Flowchart (Using Hand-Held Tester)
