Ignition Switch And Key Unlock Warning Switch: Inspection

Inspect Ignition Switch Continuity

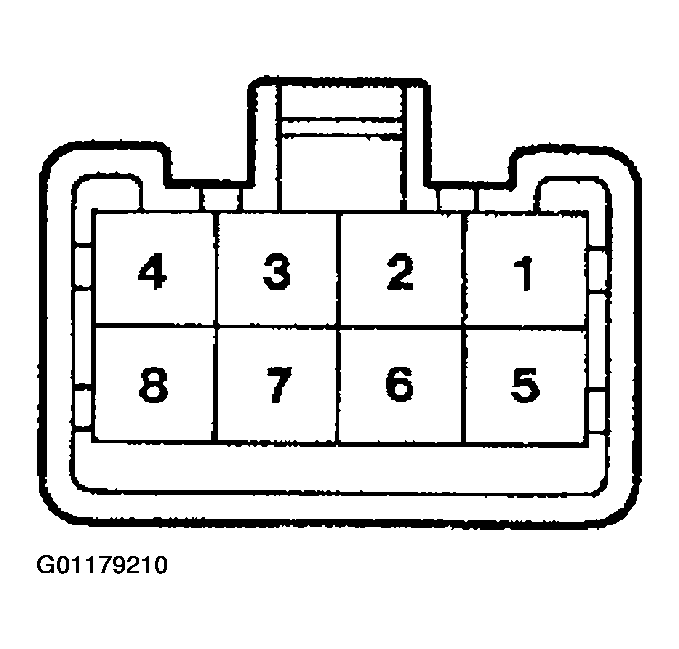

Fig 1: Identifying Ignition Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

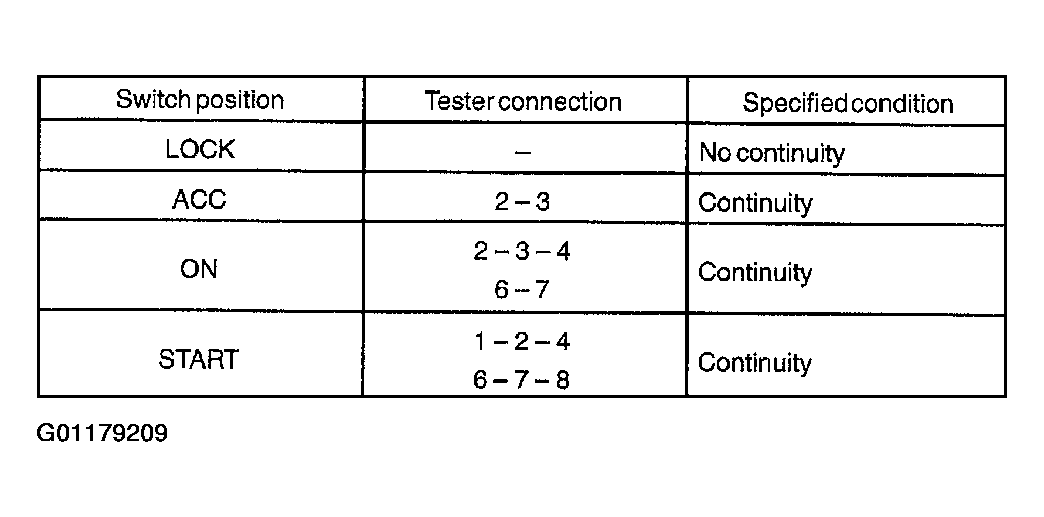

Fig 2: Identifying Ignition Switch Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect Ignition Switch Circuit
Connect the switch connector and inspect the connector on wire harness side from the back side, as shown.

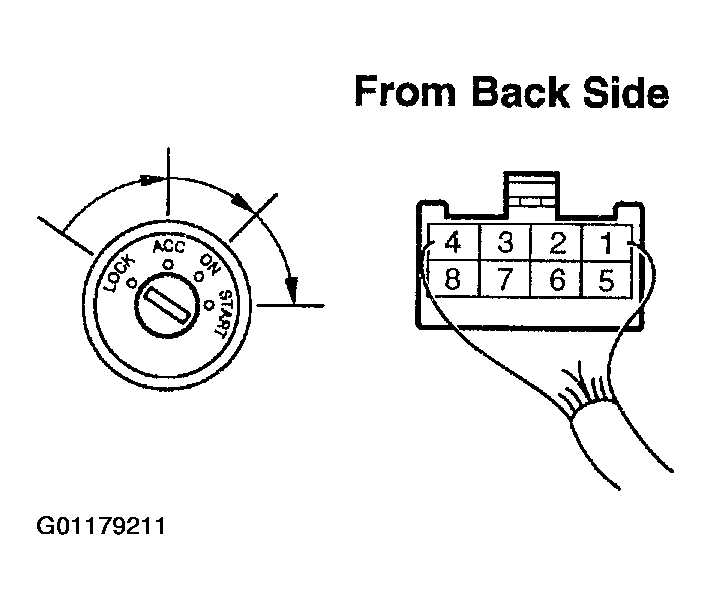

Fig 3: Identifying Ignition Switch & Ignition Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

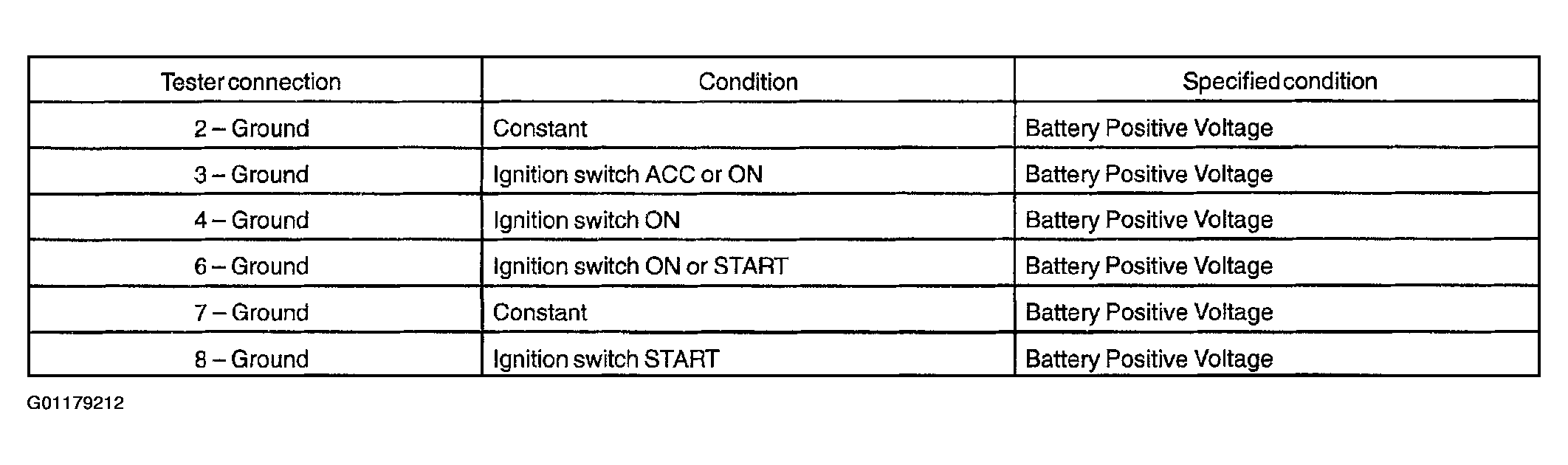

Fig 4: Identifying Ignition Switch Circuit Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is not as specified, inspect the circuits connected to other parts.
Inspect Key Unlock Warning Switch Continuity

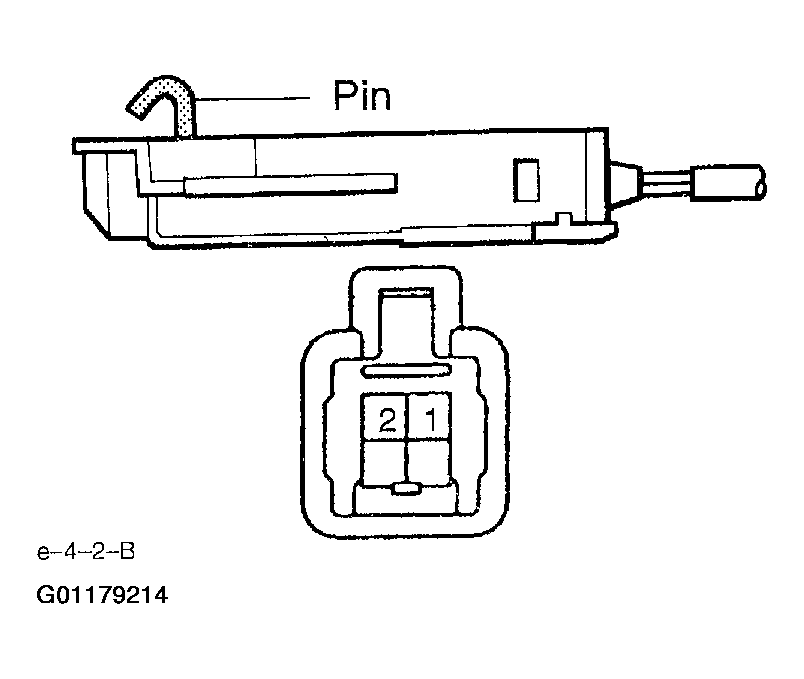

Fig 5: Identifying Key Unlock Warning Switch Pin & Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

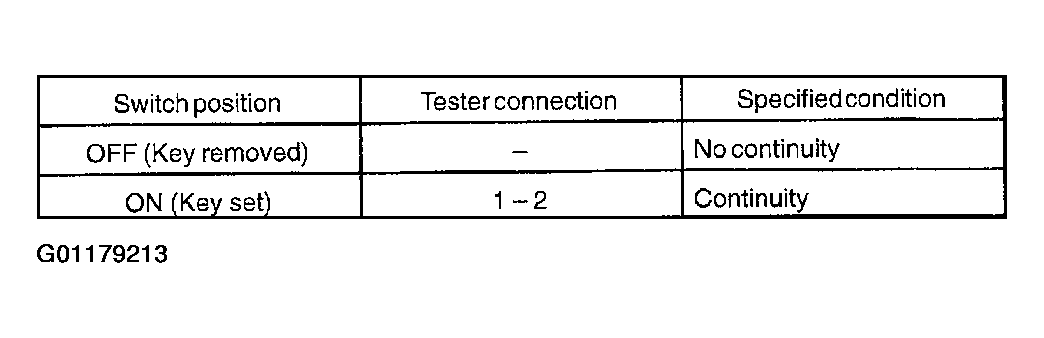

Fig 6: Identifying Key Unlock Warning Switch Continuity Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect Key Unlock Warning Switch Circuit (See KEY UNLOCK WARNING SWITCH )
Connect the switch connector and inspect the connector on wire harness side from the back side, as shown.

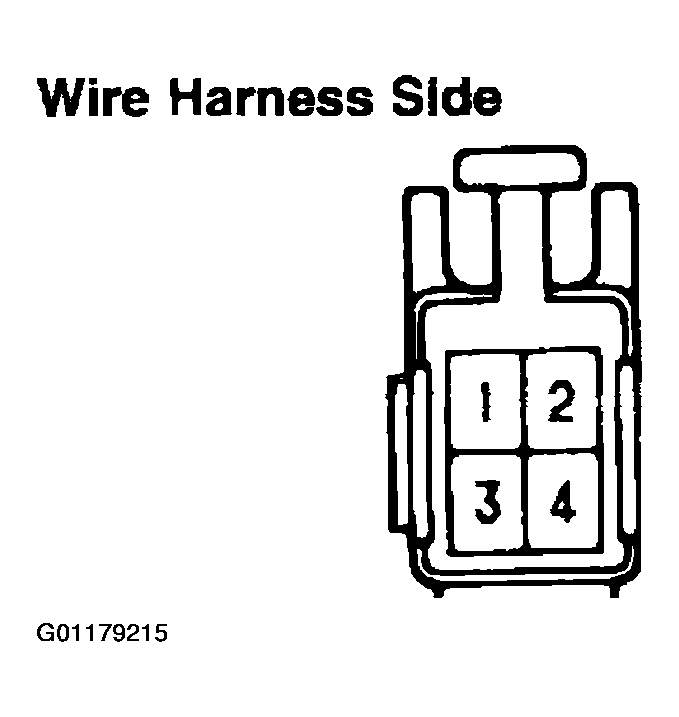

Fig 7: Identifying Key Unlock Warning Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

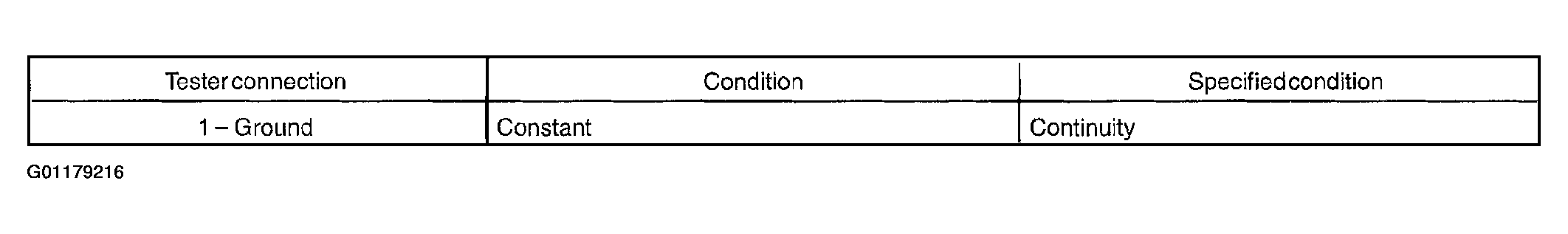

Fig 8: Identifying Key Unlock Warning Circuit Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If circuit is not as specified, inspect the circuits connected to other parts.
