Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 - Fig 4 .

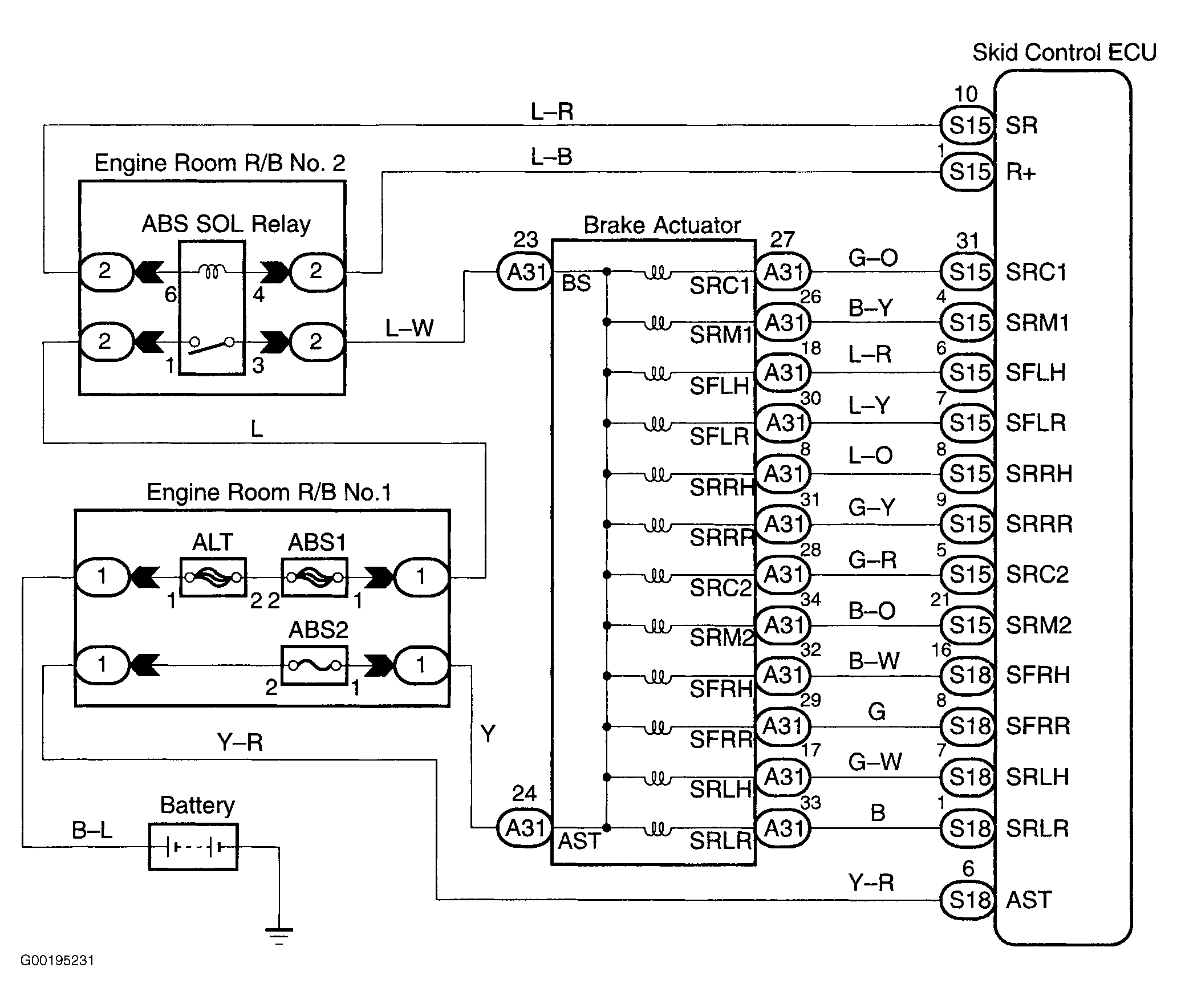

Fig 1: Wiring Diagram ABS Solenoid Relay Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

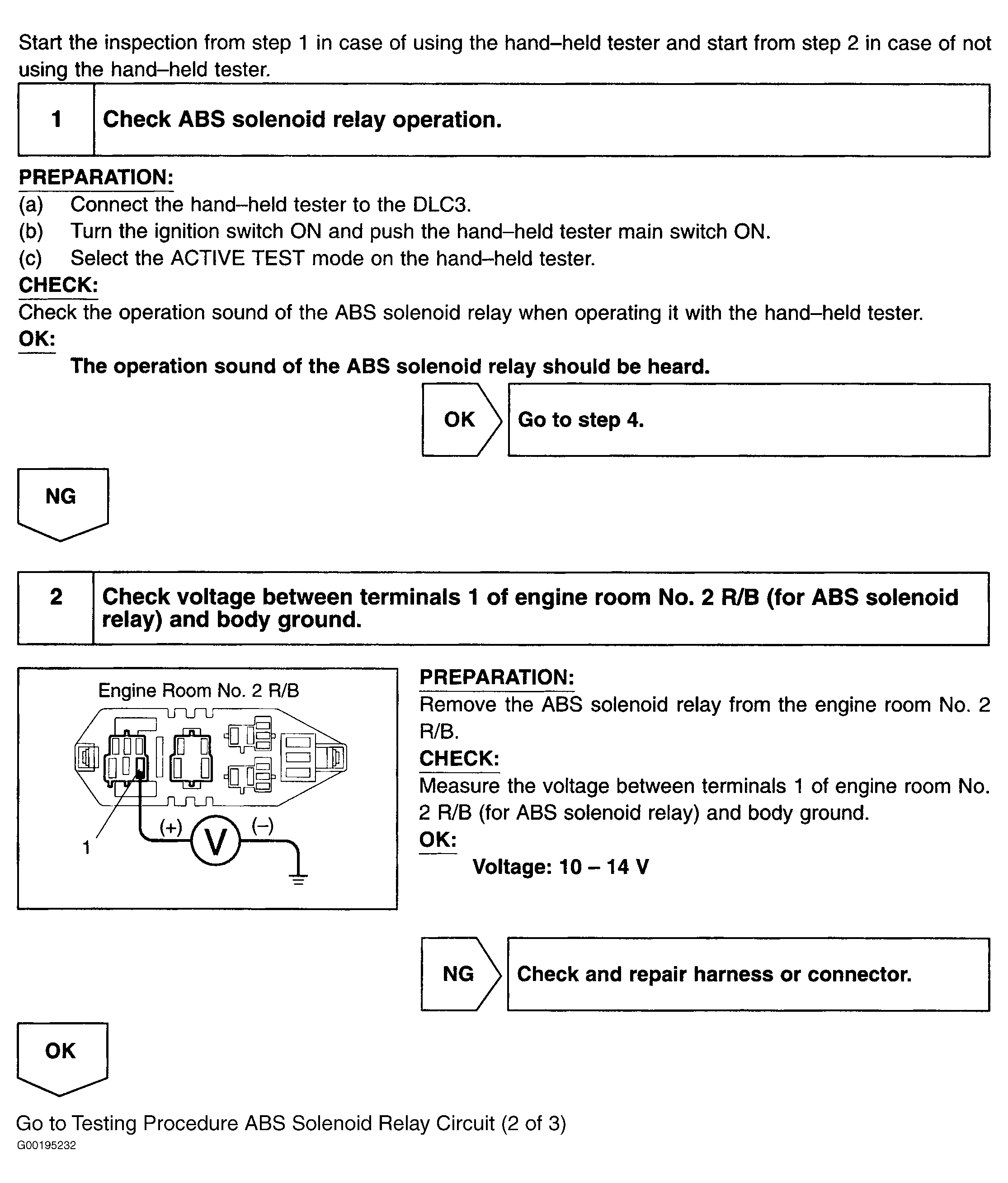

Fig 2: Testing Procedure ABS Solenoid Relay Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

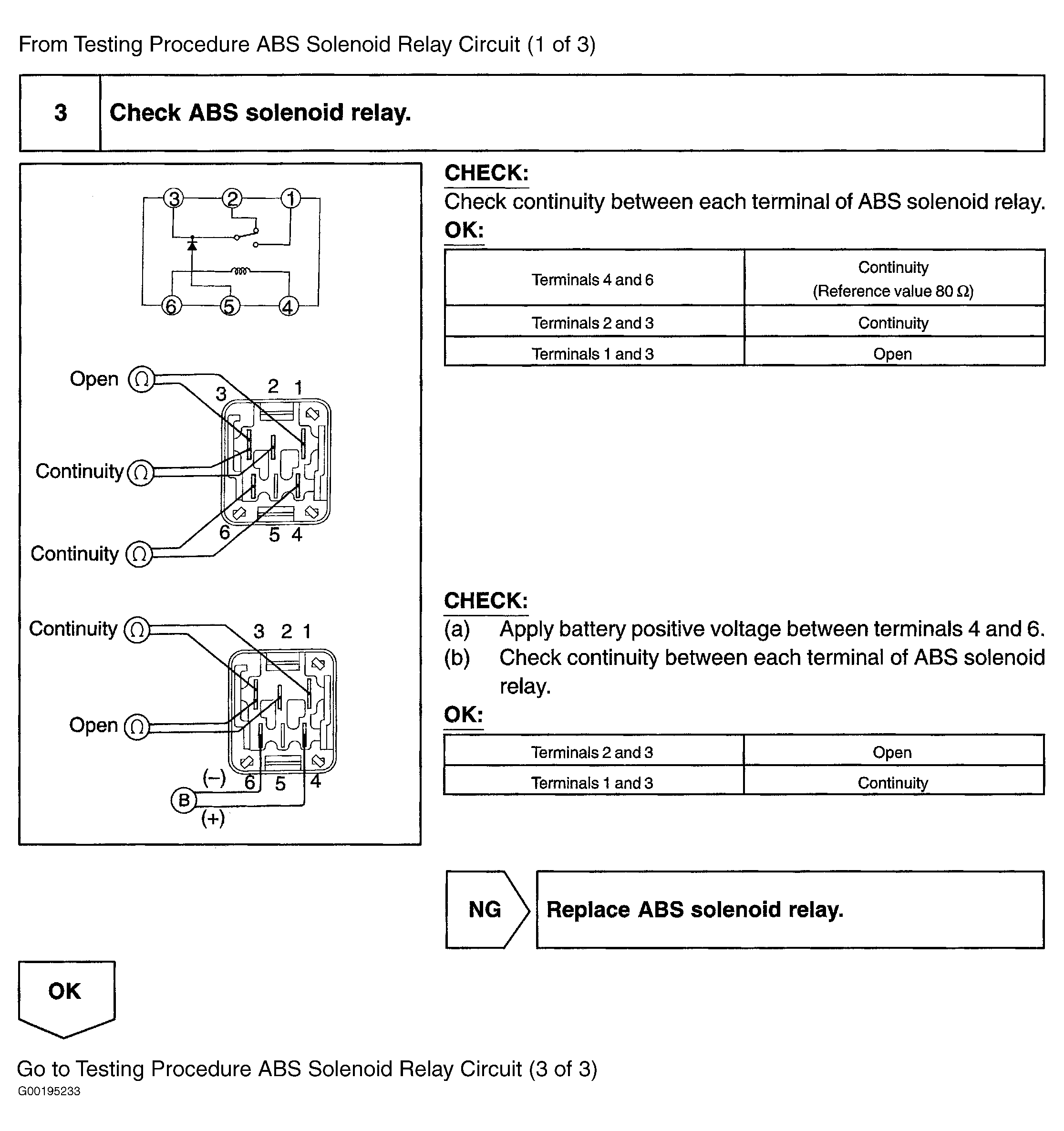

Fig 3: Testing Procedure ABS Solenoid Relay Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

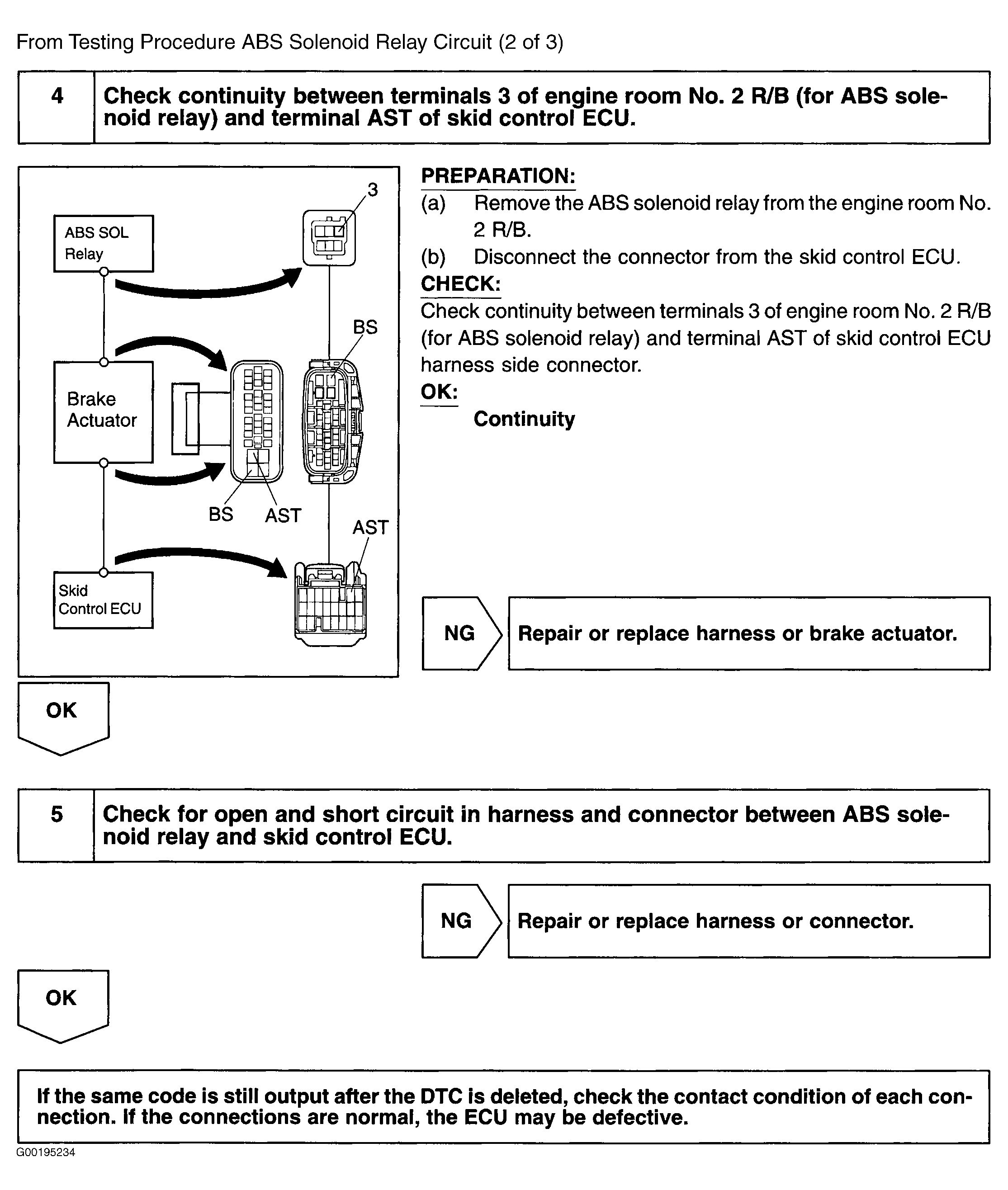

Fig 4: Testing Procedure ABS Solenoid Relay Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
