Testing Procedure
For testing procedure, see
Fig 1
and
Fig 2
.

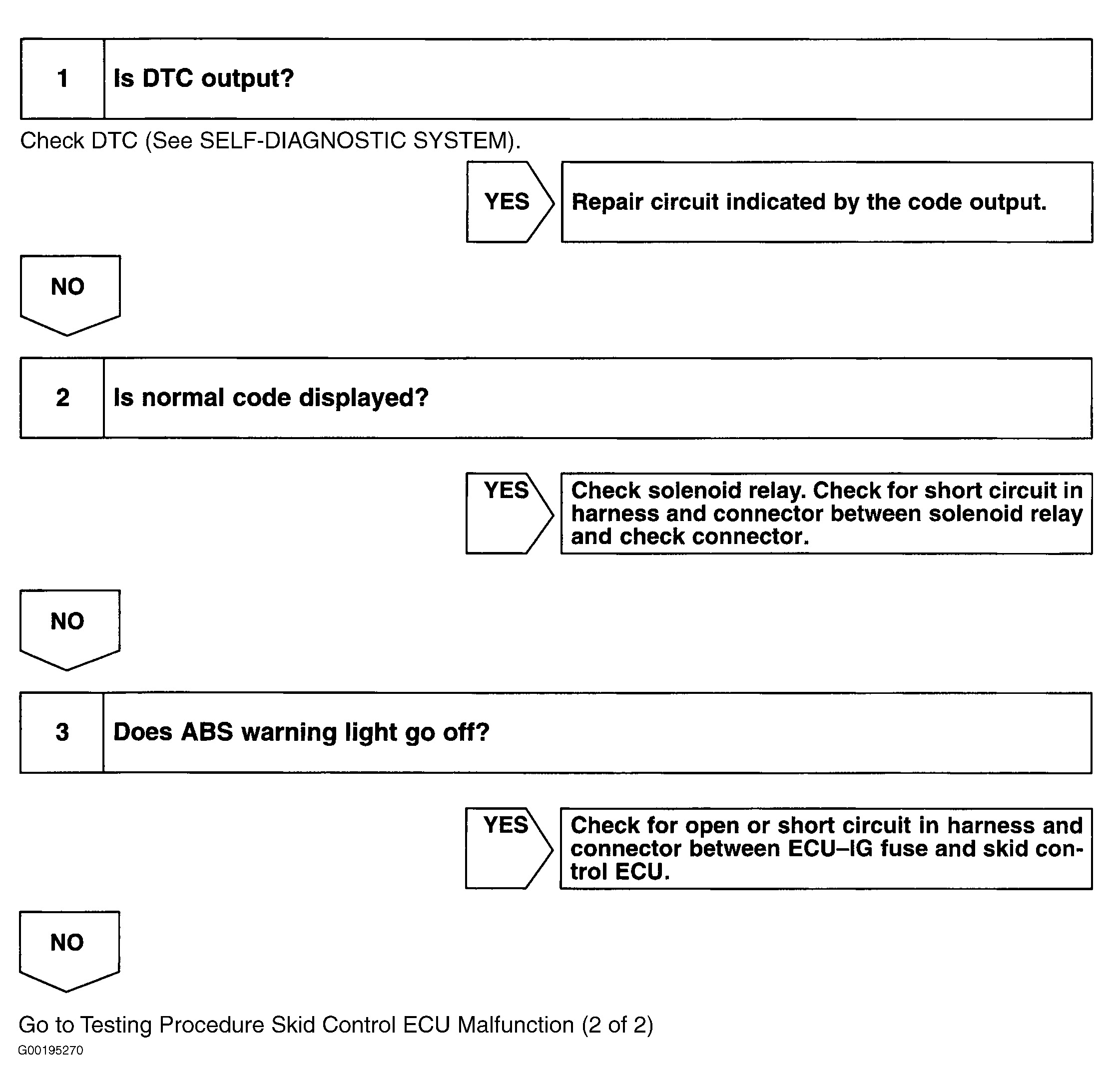

Fig 1: Testing Procedure Skid Control ECU Malfunction (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

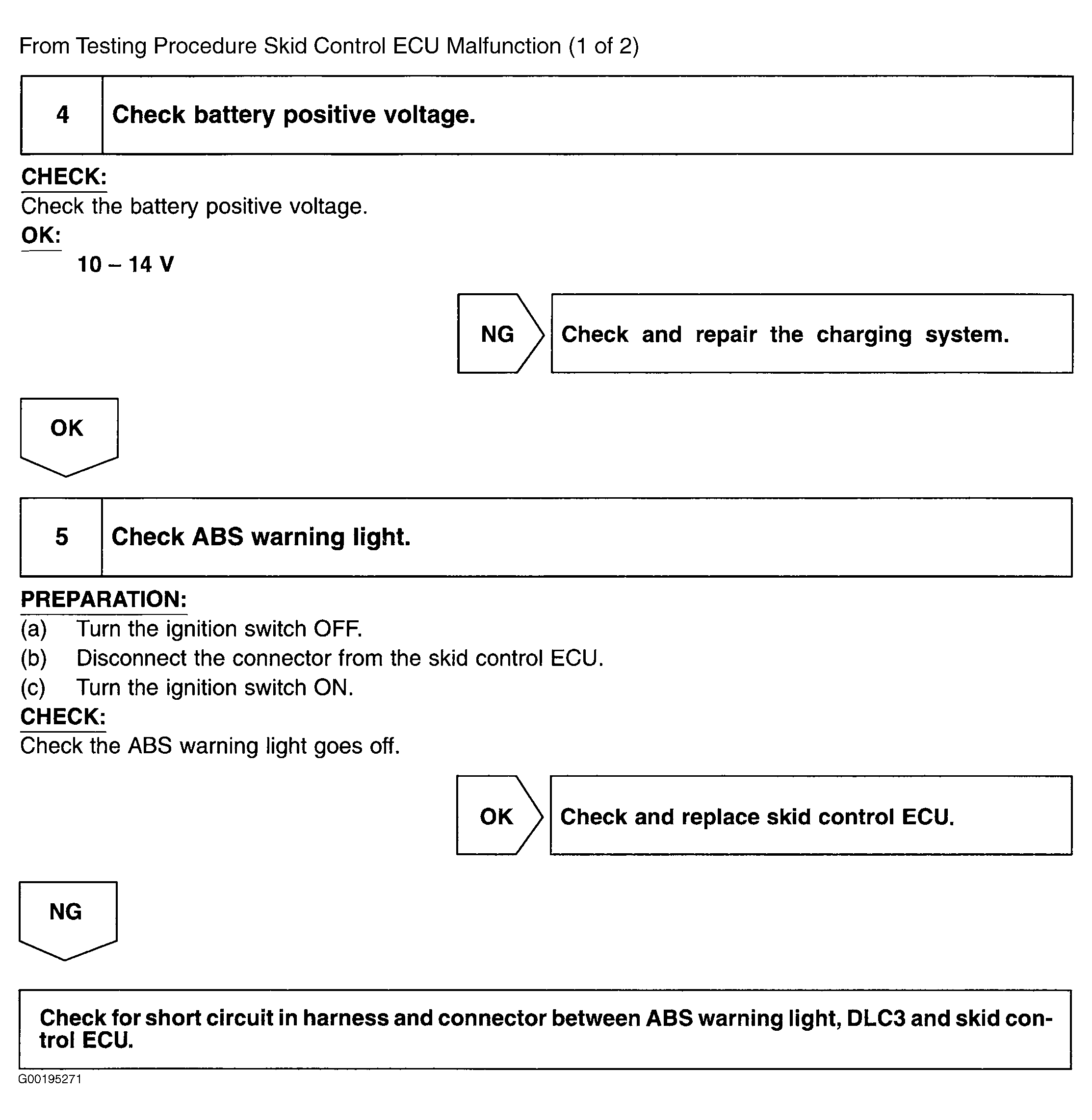

Fig 2: Testing Procedure Skid Control ECU Malfunction (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
