Section 233 (Back-Up Light System): Inspection
WARNING: This page is about a different car, the 2003 Lexus IS 300. However, it is still accessible from the selected car via links, so may be relevant.

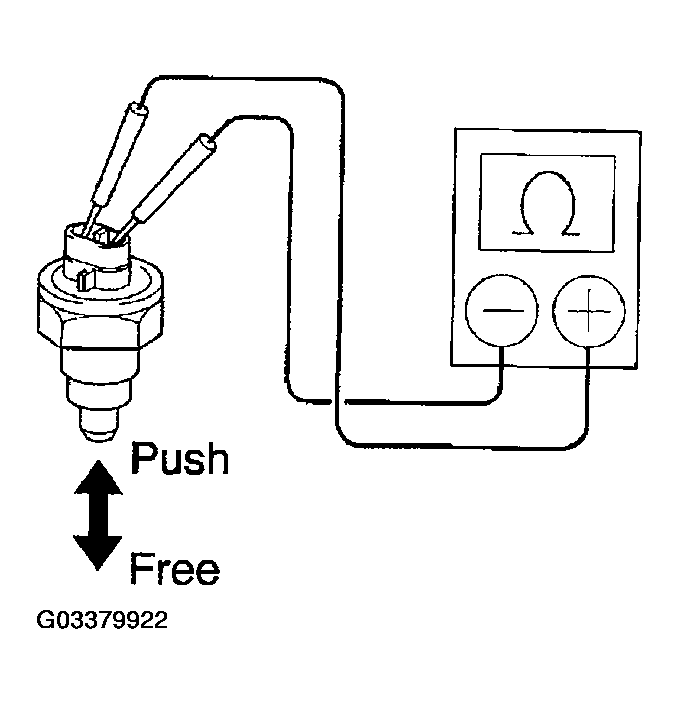

- INSPECT BACK-UP LIGHT SWITCH CONTINUITY (M/T) BACK-UP LIGHT SWITCH CONTINUITY
Switch position Specified condition Push Continuity Free No continuity If continuity is not as specified, replace the switch.
- INSPECT PARK/NEUTRAL POSITION SWITCH CONTINUITY (A/T) (See DTC P0705: TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION (PRNDL INPUT) )
