Removal & Installation: Installation

Check Torque Converter Clutch Installation

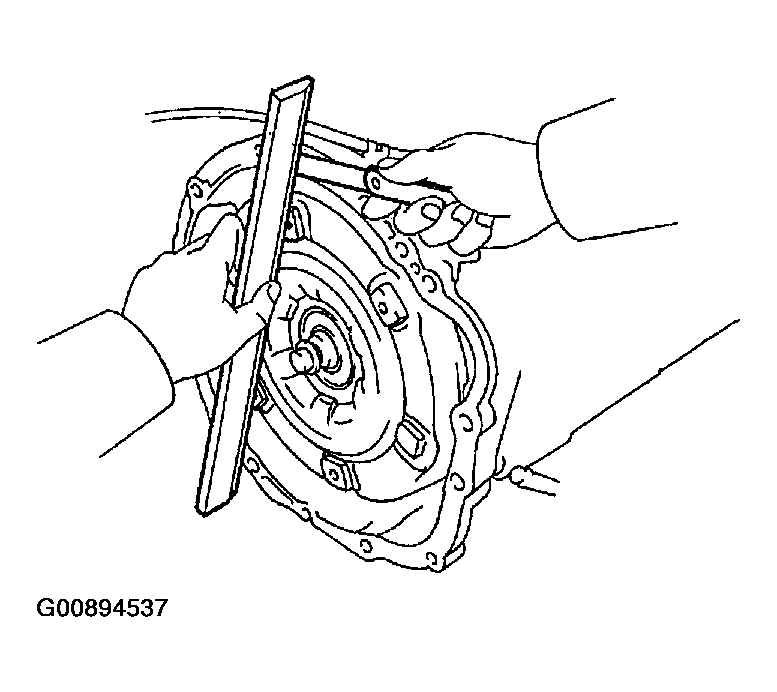

Fig 1: Checking Torque Converter Clutch Installation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using calipers and a straight edge, measure from the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.
1. Correct distance: More than 0.1 mm (0.004 in.)
If the distance is less than the standard, check for an improper installation.
Install Transmission
Installation is in the reverse order of removal (See REMOVAL ).
1. HINT:
2. After installation, check and inspect items as follows.
- Adjust the shift lever position (See ADJUST SHIFT LEVER POSITION ).
- Fill ATF and check fluid level (See FILL ATF AND CHECK FLUID LEVEL ).
- Do the road test (See DO THE ROAD TEST ).
- Fill with engine coolant (See FILL WITH ENGINE COOLANT ).
